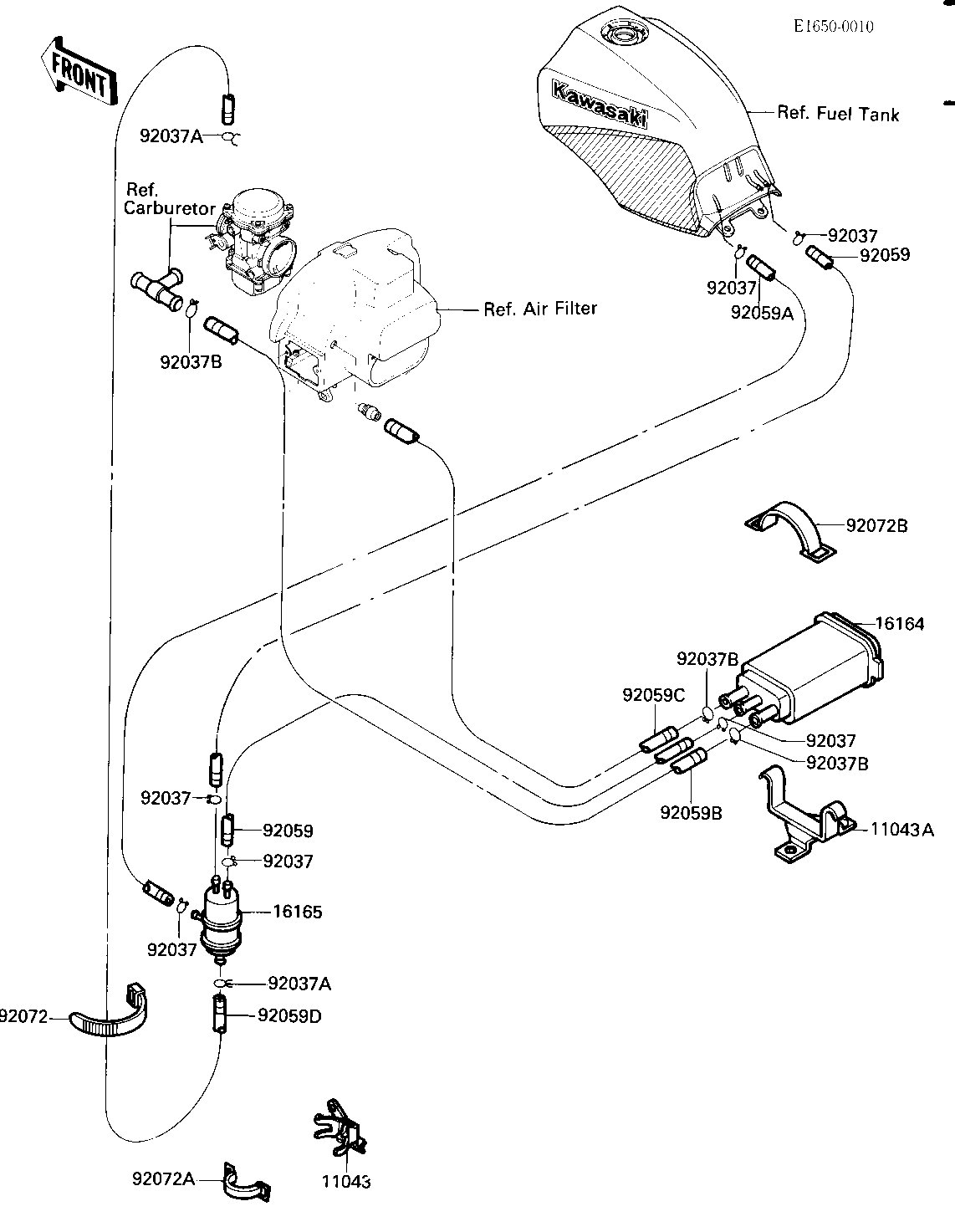

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEPARATOR 11043 11043-1653 1 CA
BRACKET,CANISTER 11043A 11043-1831 1 CA
CANISTER 16164 16164-1052 1 CA
SEPARATOR 16165 16165-1001 1 CA
CLAMP FUEL PIPE 92037 92037-010 6 CA
CLAMP-PIPE 92037A 92037-072 2 CA
CLAMP-HOSE 92037B 92037-1104 3 CA
TUBE,5X8X580 92059 92059-1468 2 CA
TUBE,5X8X340 92059A 92059-1469 1 CA
TUBE,7X12X900 92059B 92059-1470 1 CA
TUBE,7X12X800 92059C 92059-1478 1 CA
TUBE 92059D 92059-1488 1 CA
BAND,MIDDLE 92072 92072-031 1 CA
BAND,TOOL 92072A 92072-066 1 CA
BAND,BATTERY 92072B 92072-071 1 CA
