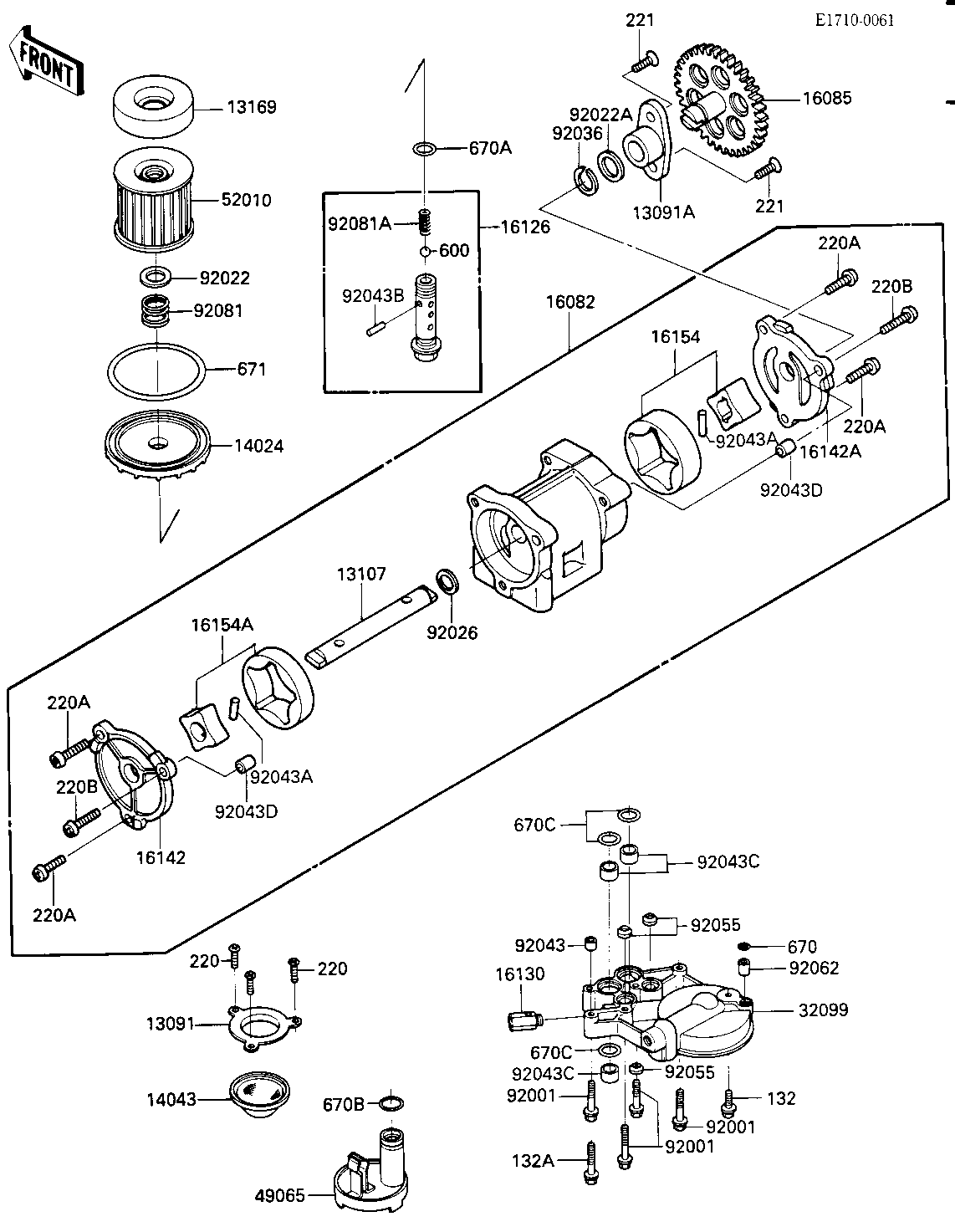

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,OIL FILTER | 13091 | 13091-1274 | 1 | ||
HOLDER,PUMP GEAR | 13091A | 13091-1333 | 1 | ||
SHAFT,OIL PUMP | 13107 | 13107-1105 | 1 | ||
PLATE,OIL FILTER | 13169 | 13169-1313 | 1 | ||
COVER,OIL FILTER,F.BL | 14024 | 14025-1422 | 1 | ||
STRAINER,OIL | 14043 | 16111-003 | 1 | ||
PUMP-ASSY-OIL | 16082 | 16082-1060 | 1 | ||
GEAR,OIL PUMP,35T | 16085 | 16085-1103 | 1 | ||
VALVE,OIL FILTER | 16126 | 16126-1108 | 1 | ||
RELEAF VALVE ASSY | 16130 | 16130-1001 | 1 | ||
COVER-PUMP,LH | 16142 | 16142-1052 | 1 | ||
COVER-PUMP,RH | 16142A | 16142-1054 | 1 | ||
ROTOR ASSY,OIL PUMP | 16154 | 16154-1007 | 1 | ||
ROTOR-PUMP | 16154A | 16154-1053 | 1 | ||
CASE,OIL FILTER | 32099 | 32099-1083 | 1 | ||
FILTER-OIL | 49065 | 49065-1066 | 1 | ||
FILTER,OIL | 52010 | 16099-003 | 1 | ||
BOLT,FLANGED,6X38 | 92001 | 92001-1105 | 4 | ||
WASHER,20.5X30X1.0 | 92022 | 92022-1012 | 1 | ||
WASHER,14X20X1 | 92022A | 92022-1495 | 1 | ||
SPACER,OIL PUMP | 92026 | 92026-1230 | 1 | ||
RING-SNAP,PUMP GEAR | 92036 | 92036-1052 | 1 | ||
PIN-DOWEL | 92043 | 92042-007 | 1 | ||
PIN,DOWEL 5X17.8 | 92043A | 92043-1061 | 2 | ||
SPRING PIN | 92043B | 92043-111 | 1 | ||
PIN,18X20X12 | 92043C | 92043-1213 | 3 | ||
PIN,DOWEL,8X10 | 92043D | 92043-1302 | 2 | ||
"O" RING | 92055 | 92055-077 | 3 | ||
NOZZLE | 92062 | 92062-1055 | 1 | ||
SPRING,OIL FILTER | 92081 | 92081-1018 | 1 | ||
SPRING | 92081A | 92081-109 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0616 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0645 | 1 | ||
SCREW PAN HEAD 6X12 | 220 | 220B0612 | 3 | ||
SCREW PAN HEAD 6X14 | 220A | 220B0614 | 4 | ||
SCREW PAN HEAD 6X20 | 220B | 220B0620 | 2 | ||
SCREW CNTSNK HD 6X16 | 221 | 221B0616 | 2 | ||
BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
"O" RING,8MM | 670 | 670B1508 | 1 | ||
"0" RING,16MM | 670A | 670B2016 | 1 | ||
"0" RING,18MM | 670B | 670B2018 | 1 | ||
O RING | 670C | 670D2020 | 3 | ||
"0" RING,90MM | 671 | 671B2590 | 1 |
