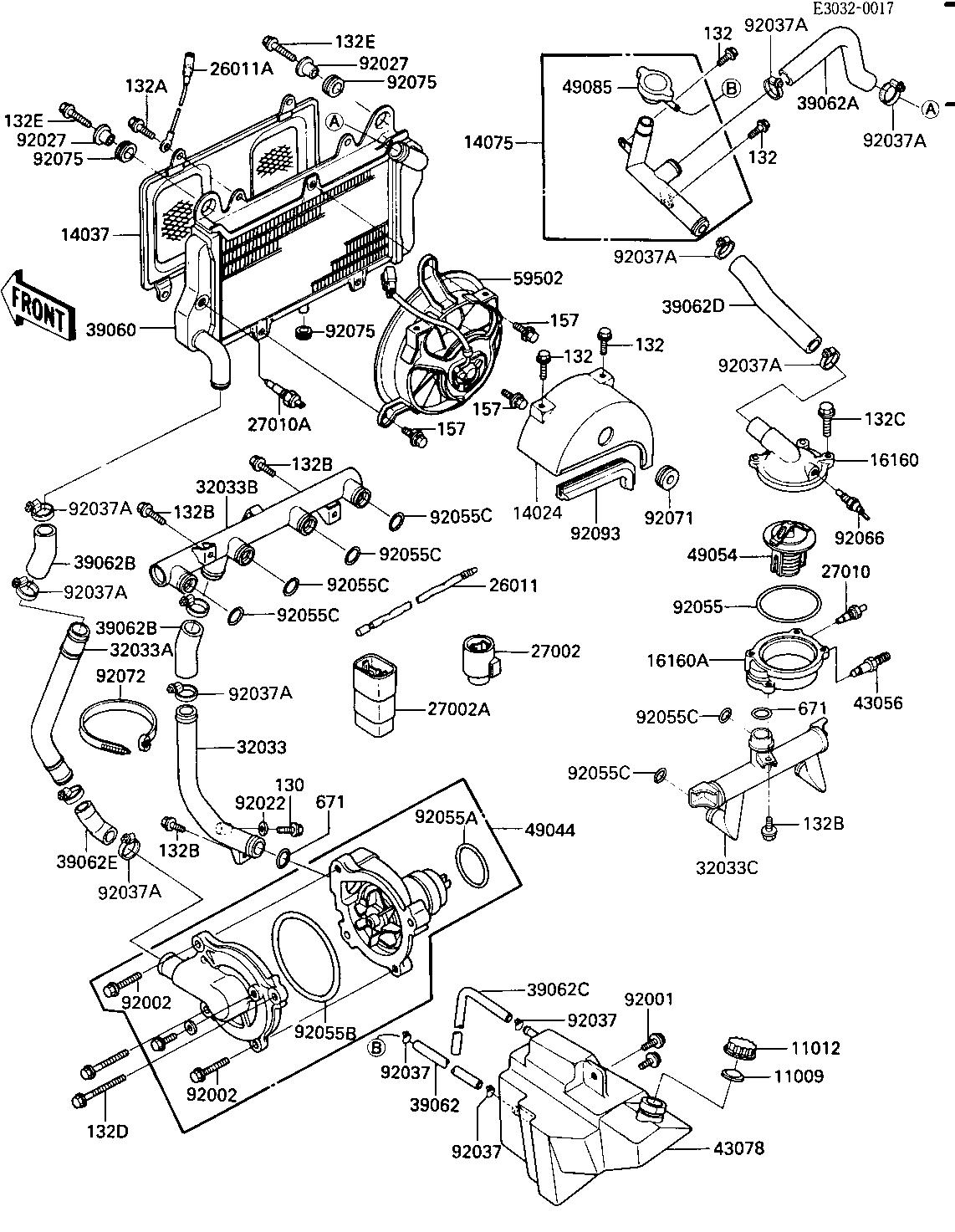

1984 Ninja® - RADIATOR/FAN/WATER PUMP

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVE TANK 11009 11009-1145 1
CAP,RESERVE TANK 11012 11012-1084 1
COVER,FAN 14024 14025-1892 1
SCREEN,RADIATOR 14037 14037-1063 1
CAP-ASSY,RADIATOR 14075 14075-1055 1
BODY,THERMOSTAT,UPP 16160 16160-1067 1
BODY,THERMOSTAT,LWR 16160A 16160-1068 1
WIRE-LEAD 26011 26011-1204 1
WIRE-LEAD 26011A 26011-1282 1
RELAY-ASSY 27002 27002-1054 1
RELAY-ASSY 27002A 27002-1055 1
SWITCH,FAN 27010 27010-1036 1
SWITCH,FAN 27010A 27010-1167 1
PIPE-WATER 32033 39192-1028 1
PIPE 32033A 32033-1207 1
PIPE 32033B 32033-1262 1
PIPE 32033C 32033-1719 1
RADIATOR 39060 39060-1059 1
HOSE-COOLING,5.5X10.5 39062 39062-1144 1
HOSE-COOLING 39062A 39062-1070 1
HOSE-COOLING 39062B 39062-1072 2
HOSE-COOLING,RESERVOI 39062C 39062-1220 1
HOSE-COOLING 39062D 39062-1091 1
HOSE-COOLING 39062E 39062-1092 1
BREEDER 43056 43056-003 1
RESERVOIR 43078 43078-1053 1
PUMP-WATER 49044 49044-1058 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1053 1
FAN-ASSY 59502 59502-1053 1
BOLT,W/WASHER,6X12 92001 92001-1516 2
BOLT,6X22 92002 92002-1392 2
WASHER,PLAIN 92022 92022-304 1
COLLAR,FUEL TANK FITT 92027 92027-1134 2
CLAMP,CHAIN OILER 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1985 10
"0" RING,53.5MM 92055 92055-112 1
RING-O,33MM 92055A 92055-1266 1
RING-O,WATER PUMP 92055B 92055-1271 1
RING-O,16MM 92055C 92055-1282 6
PLUG,SENSOR WATER 92066 92066-1183 1
GROMMET,FAN COVER 92071 92071-1116 1
BAND 92072 92072-1197 1
DAMPER 92075 92160-1007 3
SEAL,FAN COVER 92093 92093-1168 1
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED-SMALL 132 132W0608 4
BOLT-FLANGED-SMALL,6X 132A 132J0610 4
BOLT-FLANGED-SMALL 132B 132J0612 6
BOLT-FLANGED-SMALL 132C 132J0620 3
BOLT-FLANGED-SMALL 132D 132J0640 2
BOLT-FLANGED-SMALL 132E 132J0825 2
BOLT-WSP 157 157J0616 3
"0" RING,25MM 671 671B2525 2
