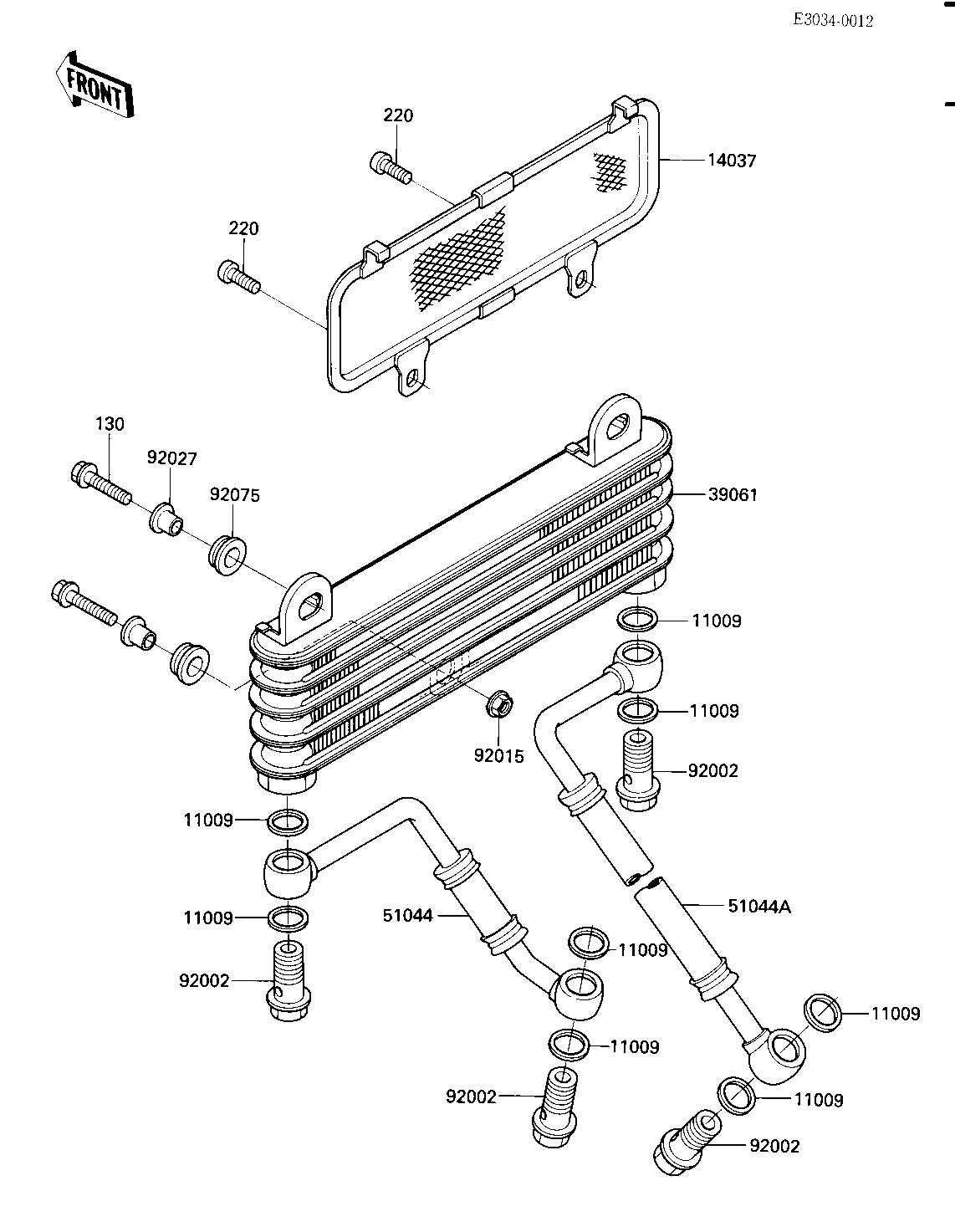

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14X19.5X1.4 11009 11009-1461 8
SCREEN,OIL COOLER 14037 14037-1059 1
EXCHANGER-ASSY-HEAT 39061 39061-1058 1
TUBE-ASSY,OIL COOLER, 51044 51044-1057 1
TUBE-ASSY,OIL COOLER 51044A 51044-1063 1
BOLT,14X28.5 92002 92001-1930 4
NUT,FLANGED,6MM 92015 92015-1233 1
COLLAR,FLANGED,L=12.1 92027 92027-1651 3
DAMPER RUBBER 9207_ 92075-277 3
BOLT-FLANGED,6X20 130 130J0620 3
SCREW PAN HEAD 6X10 220 220E0610 2
