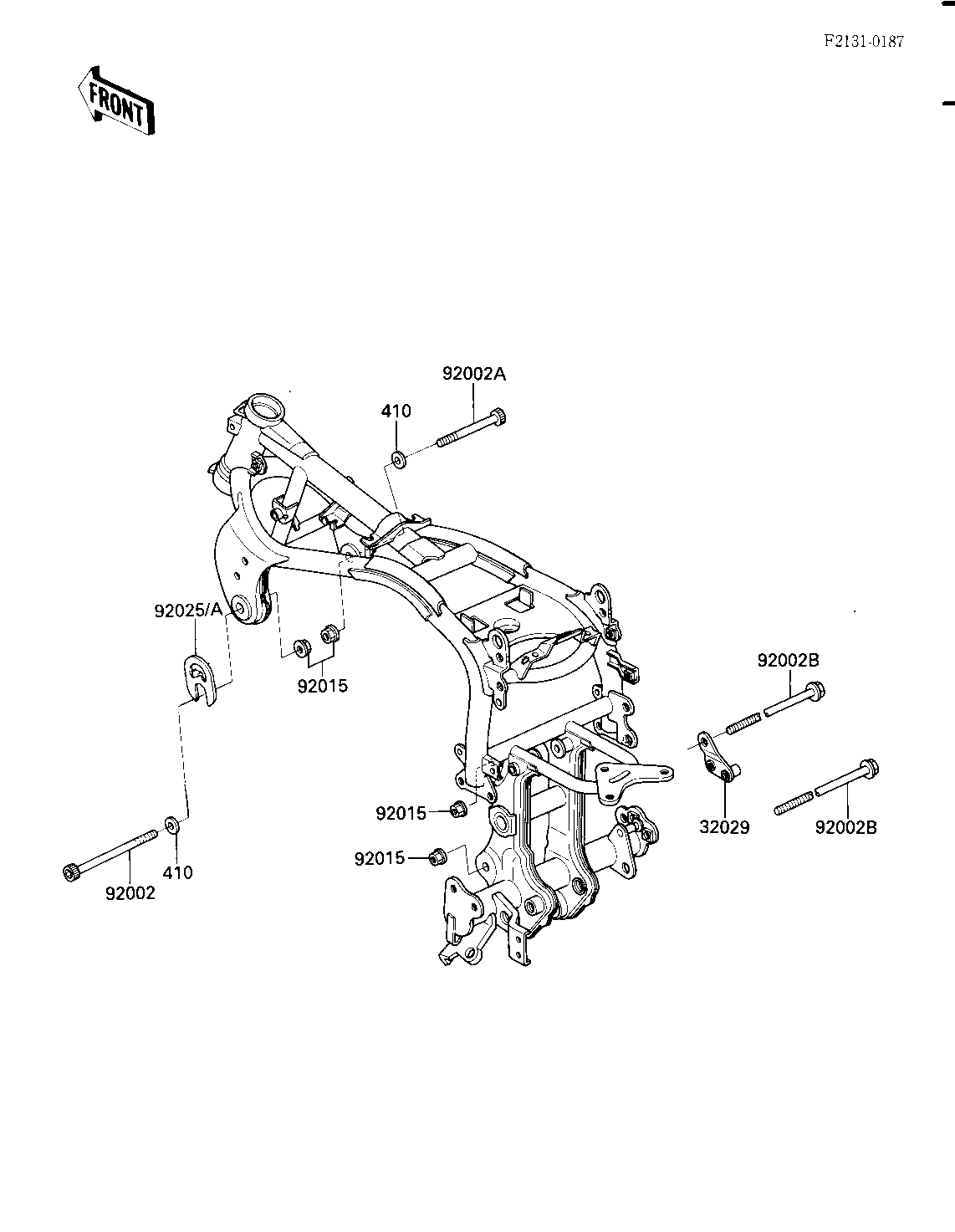

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,RR 32029 32029-1322 1
UNAVAILABLE IN PRICE BOOK 92002 92001-188 1
BOLT,SOCKET,10X72 92002A 92001-1889 1
BOLT 92002B 92002-1321 2
NUT,10MM 92015 92015-1429 4
SHIM 92025 92025-1616 AR
SHIM 92025A 92025-1617 AR
WASHER PLAIN 10MM 410 410B1000 2
