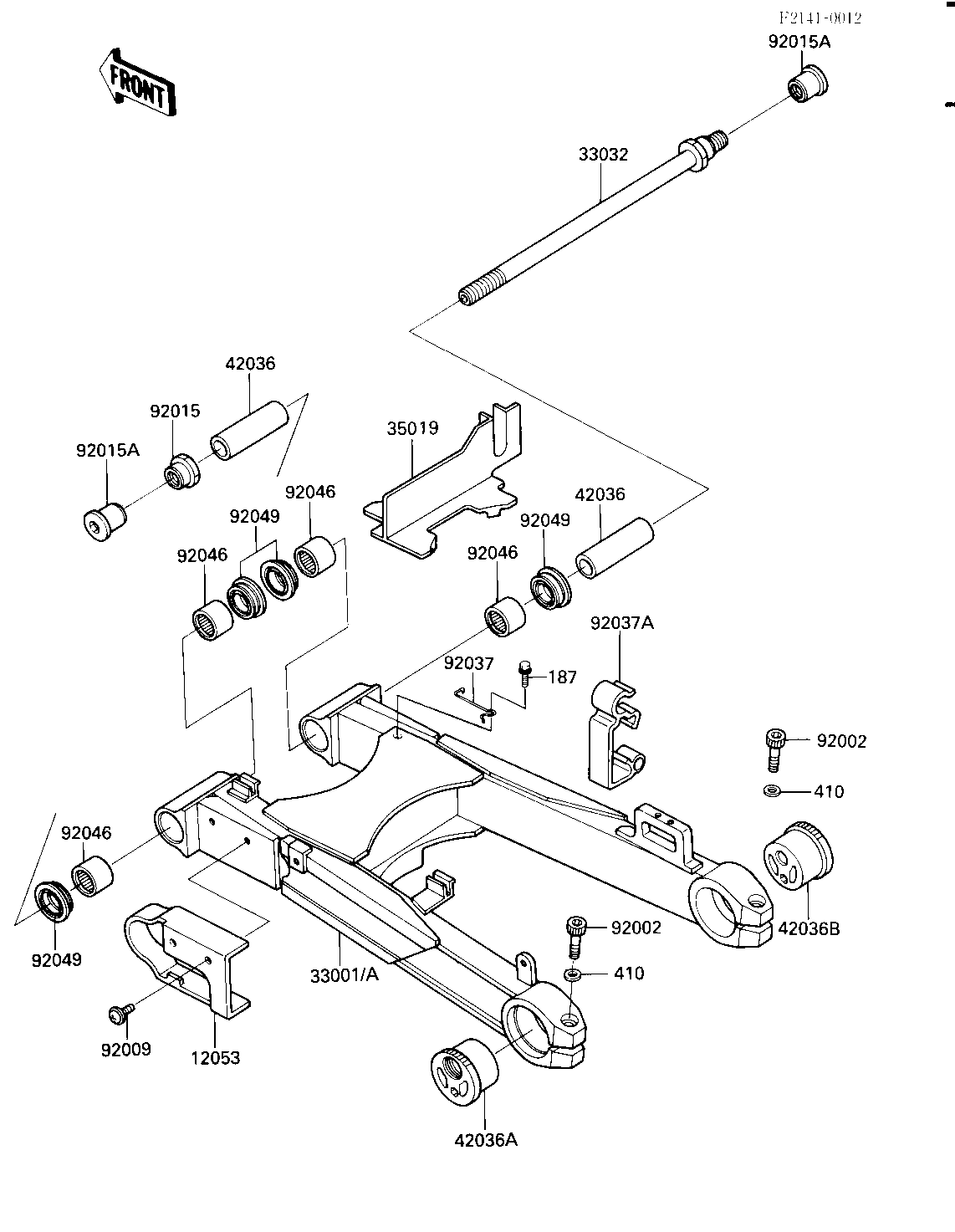

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE-CHAIN 12053 12053-1119 1
ARM-COM-SWING,G.SILV 33001 33001-1231-F2 1
SHAFT-SWING ARM 33032 33032-1105 1
FLAP,SWING ARM 35019 35019-1124 1
SLEEVE,SWING ARM 42036 42036-1114 2
SLEEVE,AXLE,RH 42036A 42036-1147 1
BOLT 92002 92002-1452 2
SCREW,6X10 92009 92009-1286 2
NUT,SWING ARM SHAFT 92015 92015-1333 1
NUT,SWING ARM 92015A 92015-1334 2
CLAMP 92037 92037-1565 1
CLAMP,BRAKE HOSE 92037A 92037-1674 2
BEARING-NEEDLE 92046 92046-1035 4
SEAL-OIL 92049 92049-1166 4
BOLT-UPSET-WSP 187 187D0610 1
W-PLAIN-S 410 410E1000 1
