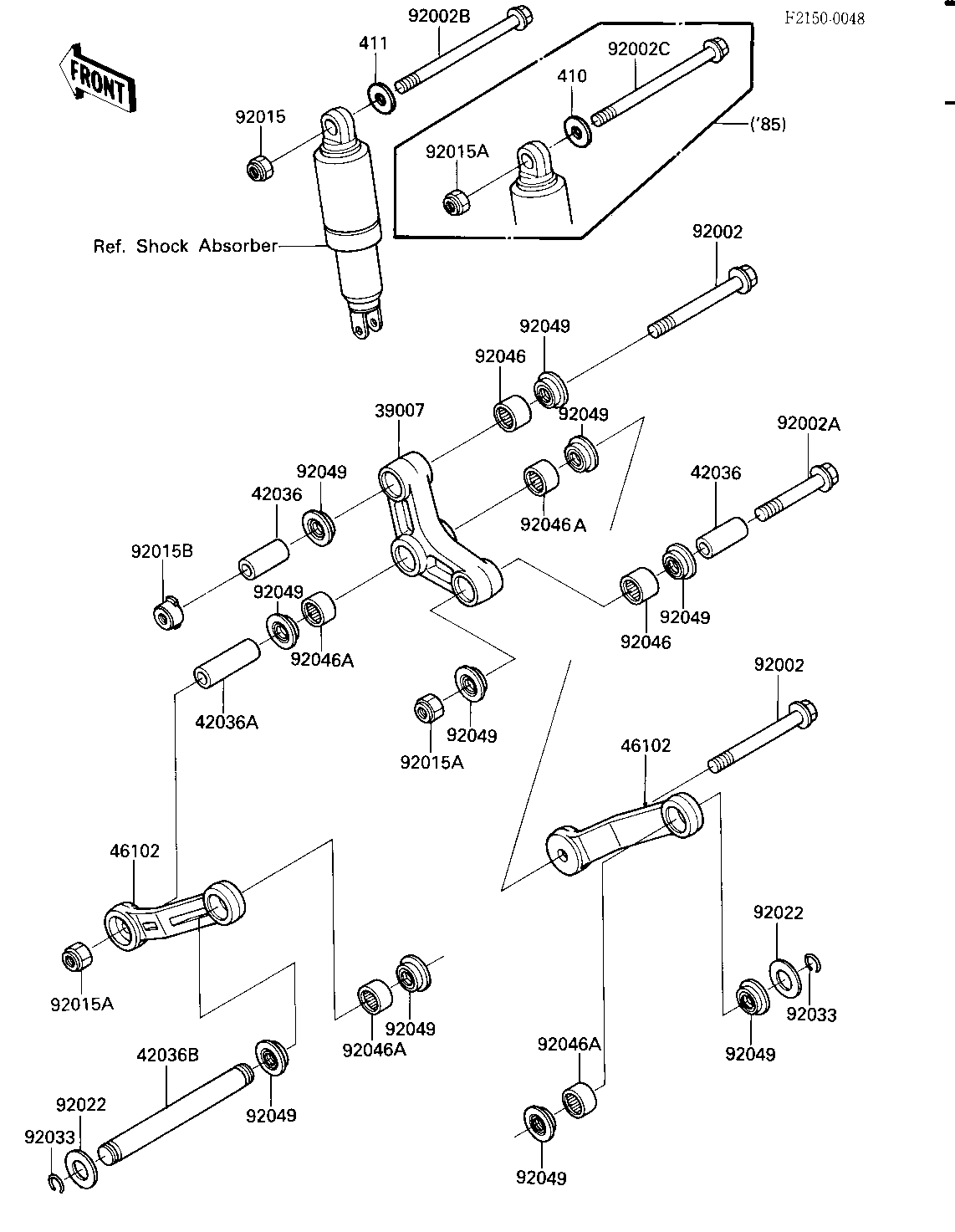

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1055 1
SLEEVE,12.5X20X39 42036 42036-1108 2
SLEEVE,12.5X20X50 42036A 42036-1111 1
SLEEVE 42036B 42036-1137 1
ROD,UNI TRAK 46102 46102-1108 2
BOLT,FLANGED,12X85 92002 92002-1463 2
BOLT,FLANGED,12X60 92002A 92002-1464 1
BOLT,FLANGED,10X130 92002B 92002-1465 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
NUT,LOCK,12MM,BLACK 92015A 92015-1190 2
NUT,12MM 92015B 92015-1482 1
WASHER 92022 92022-1590 2
RING-SNAP,18.3MM 92033 92033-1168 2
BEARING-NEEDLE,BM2027 92046 92046-1110 2
BEARING-NEEDLE,BM2027 92046A 92046-1112 4
SEAL-OIL,ARM,CNT 92049 92049-1109 10
WASHER PLAIN 10MM 411 411B1000 1
