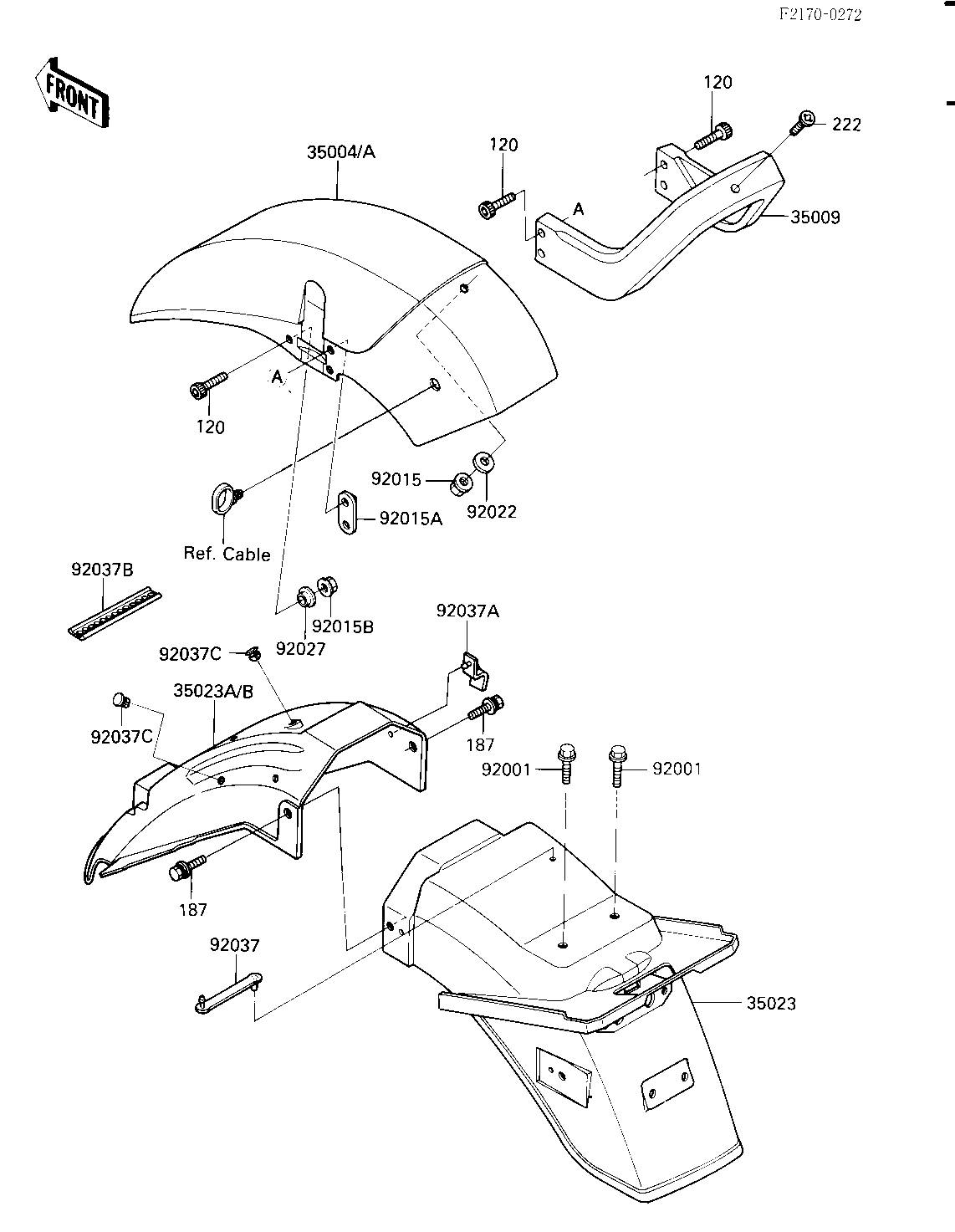

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,F.BLACK/ 35004 35004-1155-M1 1
FENDER-FRONT,F.BLACK/L.P. (Can 35004A 35004-1155-M3 1 CN
BRACE,FENDER 35009 35009-1054 1
FENDER-REAR,RR 35023 35023-1324 1
FENDER-REAR,FR 35023A 35023-1122 1 CA
BOLT,6X25 92001 92001-1870 2
NUT-6MM 92015 92015-1078 1
NUT,FENDER 92015A 92015-1345 2
NUT,6MM 92015B 92015-1365 2
WASHER 6.5X20X1.6T 92022 92022-125 1
COLLAR,BRAKE PEDAL 92027 92027-1168 2
CLAMP 92037 92037-1163 1
CLAMP,HARNESS 92037A 92037-1532 1
CLAMP 92037B 92037-1578 2 CA
CLAMP 92037C 92037-1579 4 CA
BOLT,SOCKET,6X30 120 120P0630 6
BOLT-UPSET-WSP 187 187B0622 2
SCREW OVL CNTSNK 6X20 222 222B0620 1
