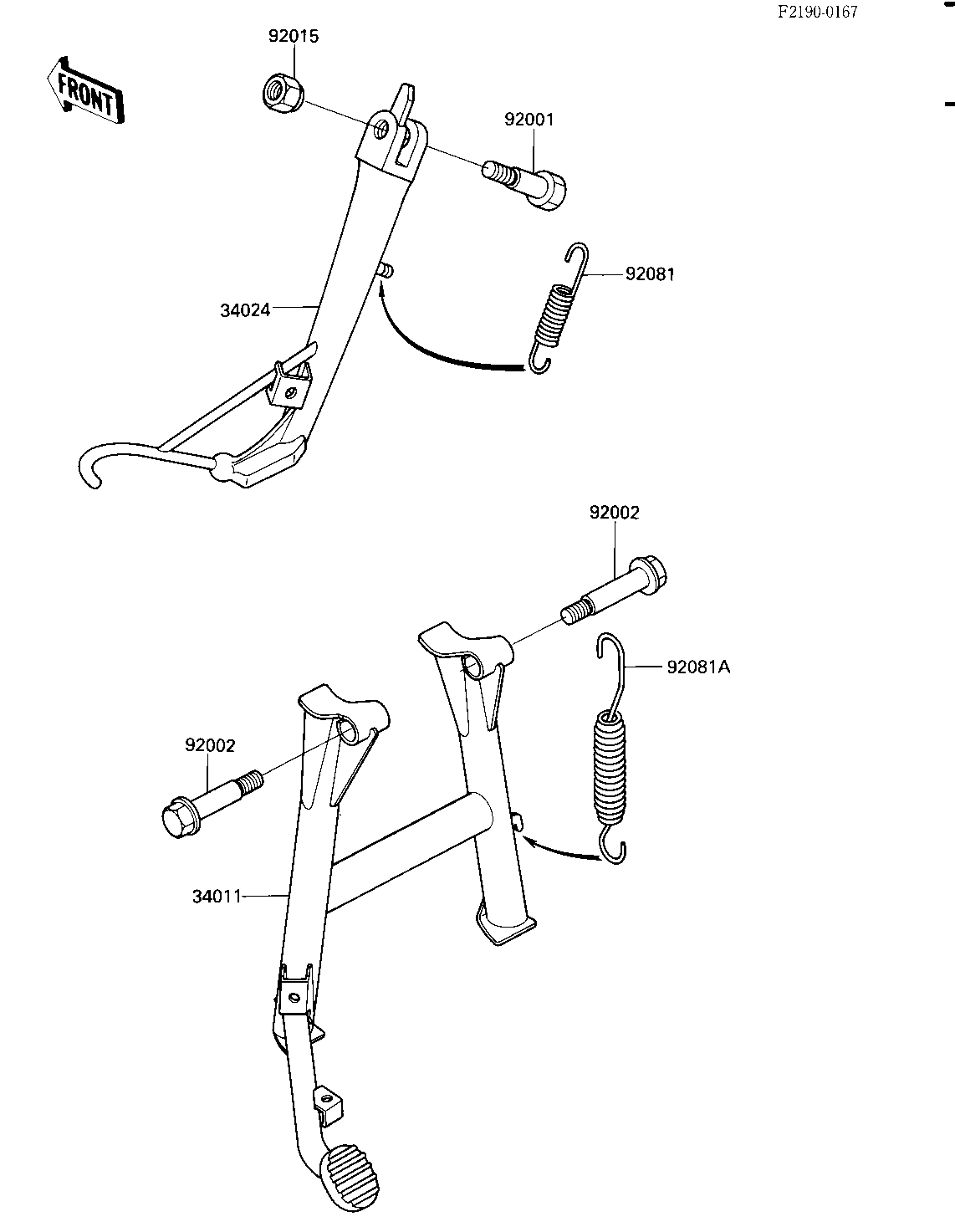

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-CENTER 34011 34011-1108 1
STAND-SIDE 34024 34024-1176 1
BOLT, SIDE STAND FIT 92001 92003-157 1
BOLT,CENTER STAND 92002 92001-1880 2
NUT,LOCK,10MM 92015 92019-021 1
SPRING,SIDE STAND 92081 92081-1676 1
SPRING,CENTER STAND 92081A 92081-1828 1
