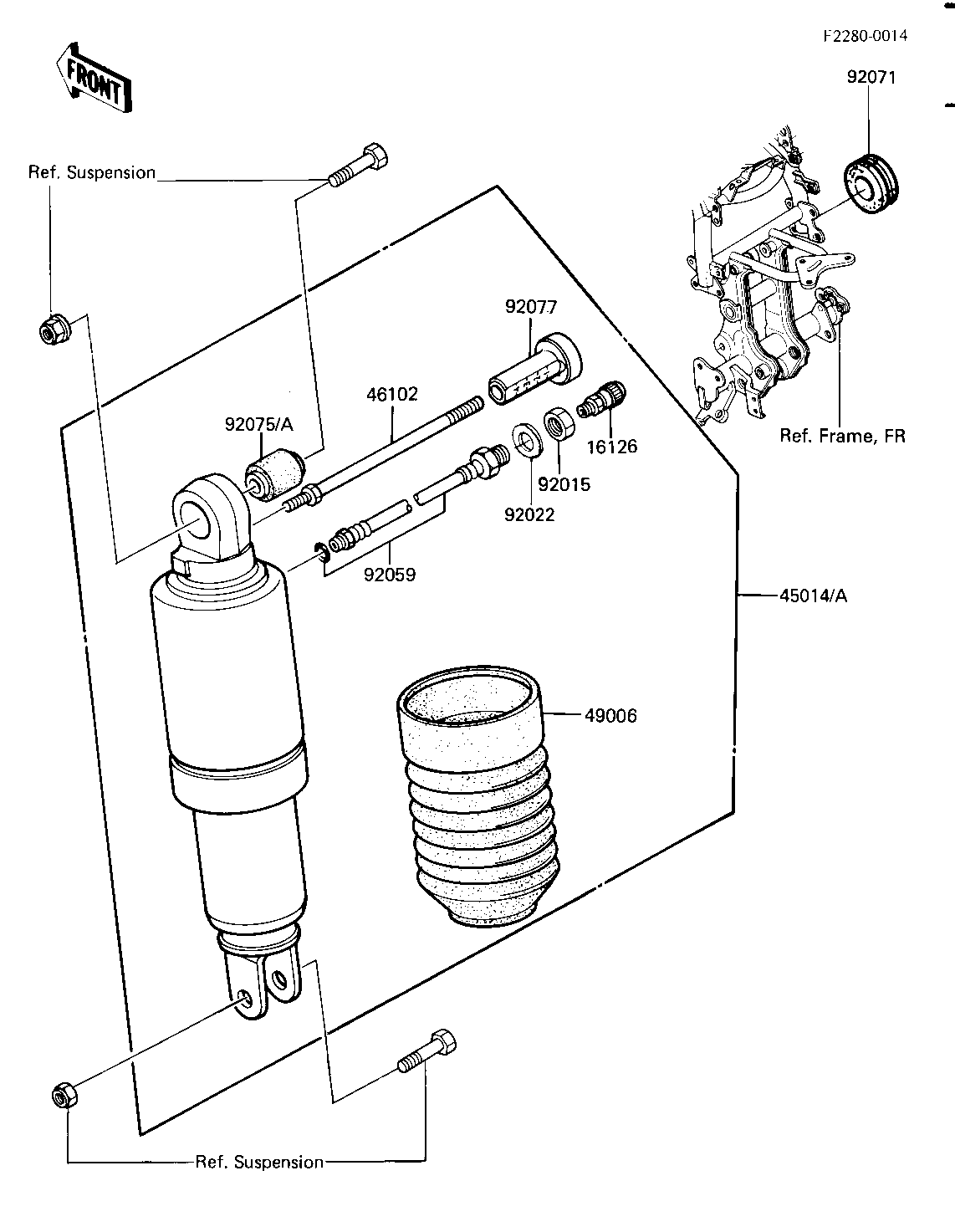

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE AIR 16126 16126-1052 1
SHOCKABSORBER,RR 45014 45014-1270 1
ROD,RR SHOCKABSORBER, 46102 46102-1114 1
BOOT,RR SHOCKABSORBER 49006 49006-1151 1
NUT,14MM 92015 92015-1305 1
WASHER 92022 92022-1494 1
TUBE,SHOCKABSORBER 92059 92059-1364 1
GROMMET 92071 92071-056 1
DAMPER,RR SHOCKABSORB 92075 92075-1552 1
KNOB,RR SHOCKABSORBER 92077 92077-1051 1
