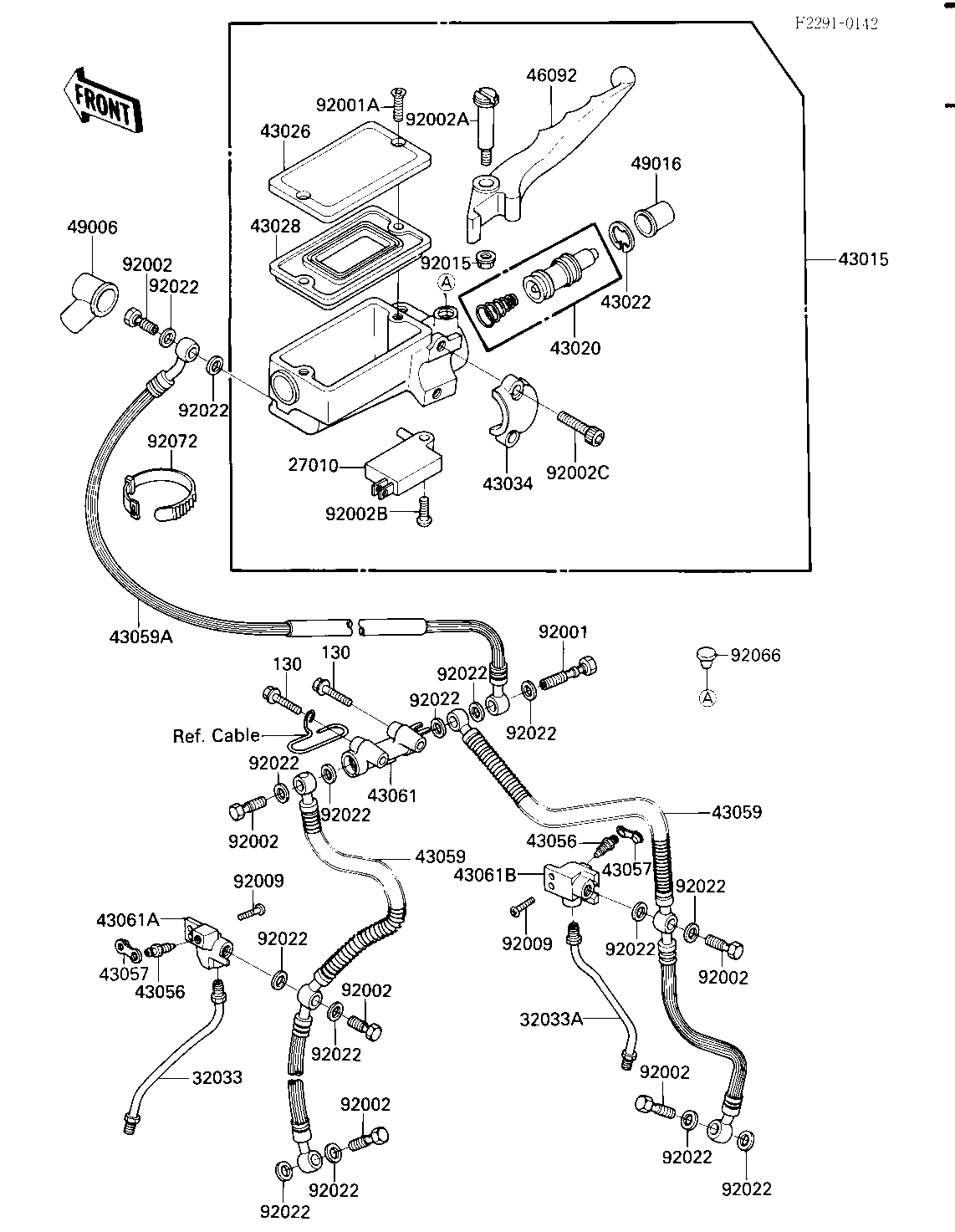

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
PIPE,BRAKE,FR,LH | 32033 | 32033-1240 | 1 | ||
PIPE,BRAKE,FR,RH | 32033A | 32033-1241 | 1 | ||
CYLINDER-ASSY-MASTER, | 43015 | 43015-1260 | 1 | ||
PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE,FR | 43026 | 43026-1052 | 1 | ||
DIAPHRAGM,MASTER CYLI | 43028 | 43028-1058 | 1 | ||
HOLDER-BRAKE,MASTER C | 43034 | 43034-1053 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1051 | 2 | ||
CAP-BREATHER | 43057 | 43057-1001 | 2 | ||
HOSE-BRAKE,FR,L=505 | 43059 | 43059-1259 | 2 | ||
HOSE-BRAKE,FR,L=340 | 43059A | 43059-1260 | 1 | ||
JOINT BRAKE | 43061 | 43061-1004 | 1 | ||
JOINT-BRAKE,FR,LH | 43061A | 43061-1051 | 1 | ||
JOINT-BRAKE,FR,RH | 43061B | 43061-1052 | 1 | ||
LEVER-GRIP,FRONT BRAK | 46092 | 46092-1112 | 1 | ||
BOOT,DUST | 49006 | 49006-1041 | 1 | ||
COVER-SEAL,MASTER CYL | 49016 | 49016-1044 | 1 | ||
BOLT | 92001 | 92002-1909 | 1 | ||
BOLT,MASTER CYLINDER | 92001A | 92001-1727 | 2 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 6 | ||
BOLT,LEVER SET | 92002A | 92002-1322 | 1 | ||
BOLT | 92002B | 92002-1323 | 1 | ||
BOLT,SOCKET,6X10 | 92002C | 92002-1324 | 2 | ||
SCREW,6X14 | 92009 | 92009-1349 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 15 | ||
PLUG,9.5X8 | 92066 | 92066-1077 | 1 | ||
BAND,WIRING HARNESS | 92072 | 92072-056 | 1 | ||
BOLT-FLANGED,6X60 | 130 | 130G0660 | 2 |
