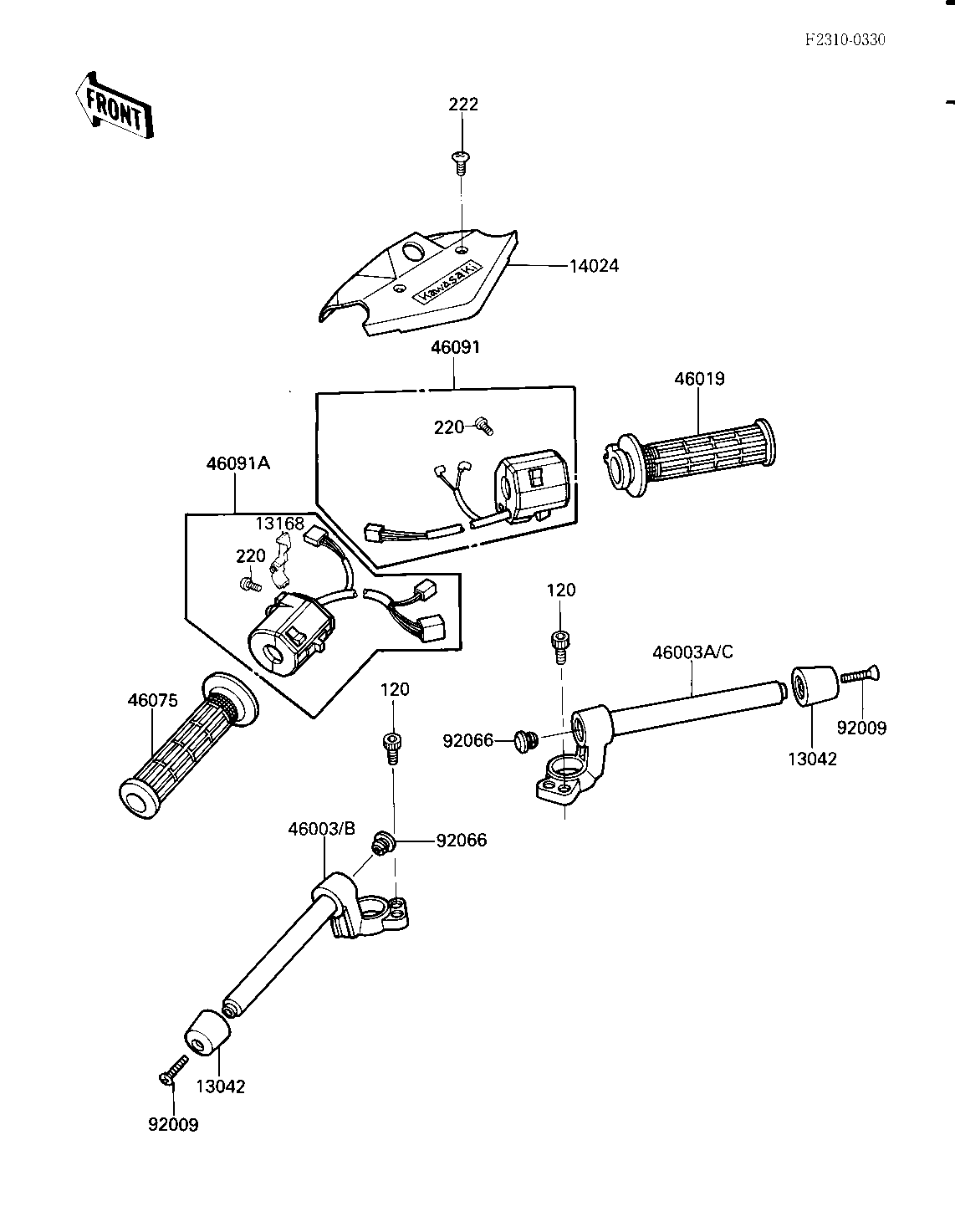

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 13042 13042-100 2
LEVER,CHOKE 13168 13168-1239 1
COVER,HANDLE 14024 14025-1830 1
HANDLE,LH 46003 46003-1203 1
HANDLE,RH 46003A 46003-1204 1
GRIP-ASSY,THROTTLE 46019 46019-1056 1
GRIP,LH 46075 46075-1028 1
HOUSING-ASSY-CONTROL, 46091 46091-1334 1
HOUSING-ASSY-CONTROL, 46091A 46091-1335 1
SCREW,HUNDLE WEIGHT 92009 92009-1257 2
PLUG 92066 92066-1257 2
UNAVAILABLE IN PRICE BOOK 120 12050820 4
UNAVAILABLE IN PRICE BOOK 220 22000520 4
UNAVAILABLE IN PRICE BOOK 222 22200530 2
