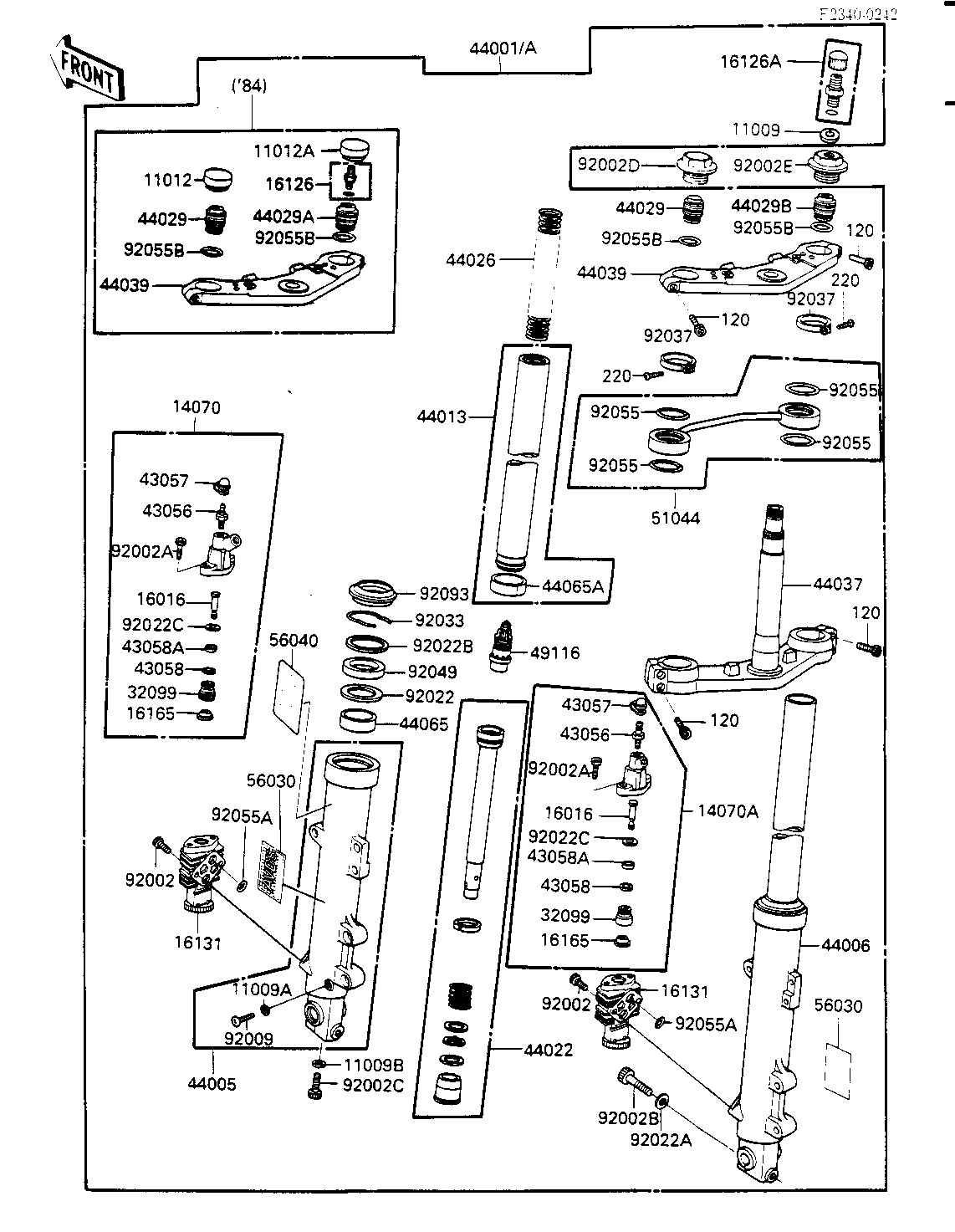

1984 Ninja® - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009A 44045-002 2
GASKET,FORK CYLINDER 11009B 44045-057 2
CAP 11012 11012-1404 1
CAP,FORK 11012A 11012-1413 1
BODY-BREATHER 14070 14070-1056 1
BODY-BREATHER 14070A 14070-1057 1
PLUNGER 16016 16016-1063 2
VALVE,AIR 16126 16126-1050 1
BODY-VALVE 16131 16131-1057 2
SEPARATOR 16165 16165-1051 2
CASE 32099 32099-1067 2
BREEDER 43056 43056-003 2
CAP,BREEDER 43057 43057-003 2
RING 43058 43058-1052 2
RING 43058A 43058-1053 2
FORK-FRONT 44001 44001-1523 1
PIPE-LEFT FORK OUTER 44005 44005-1217 1
PIPE-RIGHT FORK OUTER 44006 44006-1217 1
PIPE-FORK INNER 44013 44013-1219 2
CYLINDER-FORK 44022 44022-1167 2
SPRING-FRONT FORK 44026 44026-1277 2
SEAT-FORK SPRING,LH 44029 44029-1109 1
SEAT-FORK SPRING,RH 44029A 44029-1114 1
HOLDER-FORK UNDER 44037 44037-1167 1
HOLDER-FORK UPPER 44039 44039-1103 1
BUSHING-FRONT FORK,OU 44065 44065-1091 2
BUSHING,FORK PIPE 44065A 92028-1126 2
VALVE-ASSY 49116 49116-1055 2
TUBE-ASSY 51044 51044-1059 1
LABEL,AVDS MARK 56030 56030-1057 2
LABEL-WARNING,FRONT F 56040 56040-1110 1
BOLT,SOCKET,6X16 92002 92002-1166 4
BOLT,SOCKET,5X12 92002A 92002-1289 4
BOLT 92002B 92002-1316 2
BOLT 92002C 92002-1317 2
SCREW,4X8 92009 92009-1324 2
WASHER,FORK OUT PIPE 92022 92022-1262 2
WASHER 92022A 92022-1598 2
WASHER 92022B 92022-1599 2
WASHER 92022C 92022-1636 2
SNAP RING,FORK OUTER 92033 92033-1047 2
CLAMP,FRONT FORK 92037 92037-1277 2
SEAL-OIL,FORK 92049 92049-1178 2
RING-O,ROD 92055 92055-1369 4
RING-O,ANTI-DIVE UNIT 92055A 92055-1201 4
RING-O 92055B 92055-1250 2
SEAL,FORK 92093 92093-1162 2
BOLT-SOCKET 120 120S0825 6
SCREW-PAN-CROS 220 220E0414 2
