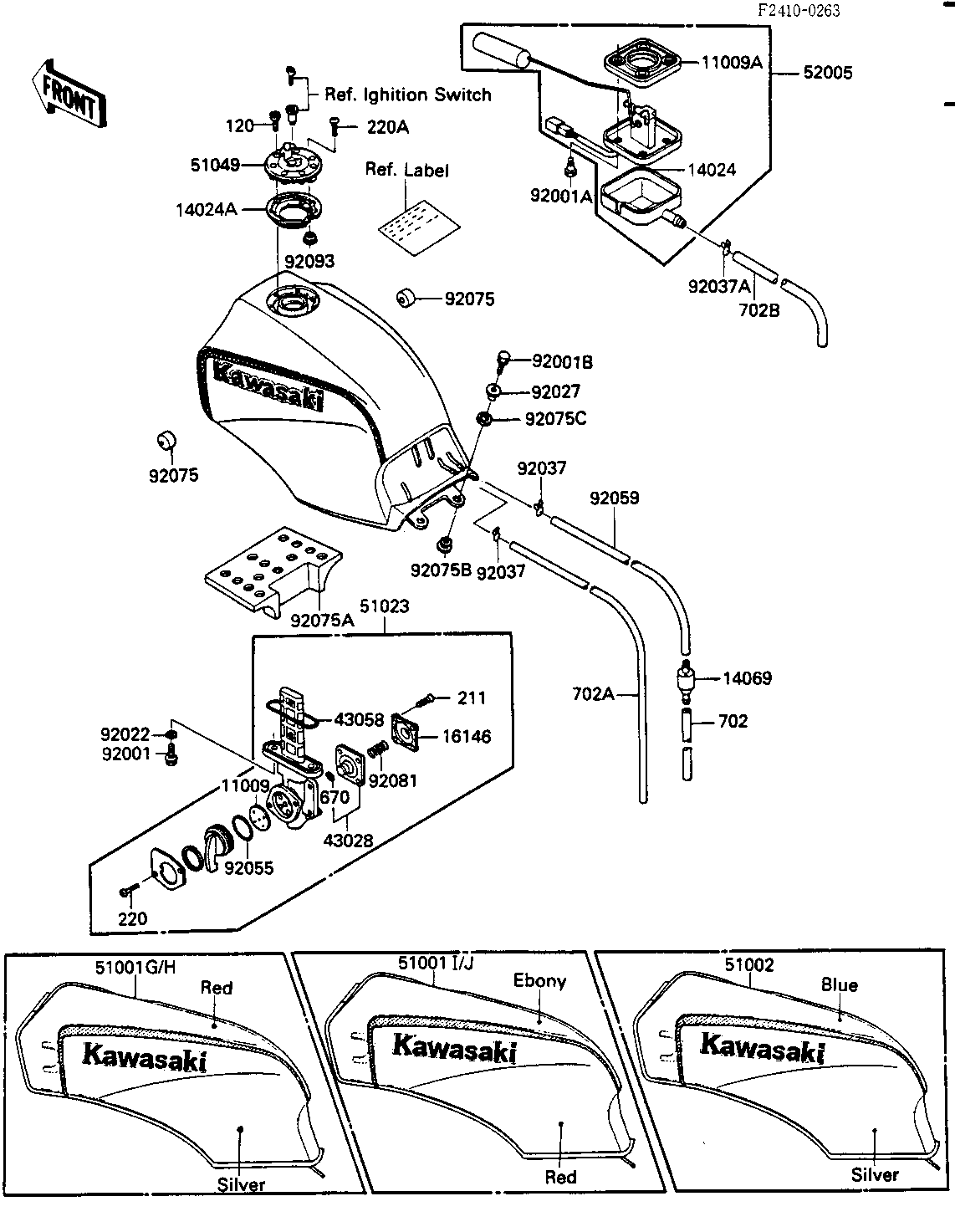

1985 Ninja® - FUEL TANK (ZX900-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAP VALVE 11009 11009-1194 1
GASKET,FUEL GAUGE 11009A 11009-1656 1
COVER,FUEL GAGE 14024 14025-1536 1
COVER 14024A 14025-1913 1
BREATER,FUEL TANK 14069 14069-1004 1 CN,US
COVER ASSY,TAP 16146 16146-1005 1
DIAPHRAGM ASSY,TAP 43028 43028-1015 1
"0" RING 43058 51039-010 1
TANK-COMP-FUEL,R/SILV 51001G 51001-5459-M7 1 CA
TANK-COMP-FUEL,F.RED/ 51001H 51002-5092-M7 1 US
TANK-COMP-FUEL,EB/RED 51001I 51001-5470-J3 1 CA
TANK-COMP-FUEL,EBONY/ 51001J 51002-5094-J3 1 CN,US
51002-5096-L8 (Canada) 51002 51002-5001-L8 1 CN
TAP-ASSY,FUEL 51023 51023-1110 1
CAP-TANK,FUEL 51049 51049-1079 1
GAUGE,FUEL 52005 52005-1058 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
BOLT,FUEL GAGE 92001A 92001-1705 4
BOLT,6X25 92001B 92002-1137 2
WASHER-PLAIN 92022 92022-183 2
COLLAR 6.8X10X14.5 92027 92027-156 2
CLAMP FUEL PIPE 92037 92037-010 1 CA
CLAMP,CHAIN OILER 92037A 92037-147 1
"0" RING,TAP LEVER 92055 92055-1027 1
TUBE,7X10X230 92059 92059-1519 1 CN,US
DAMPER RUBBER,FL TANK 92075 92075-125 2
DAMPER,FUEL TANK 92075A 92075-1672 1
RUBBER,FENDER COVER 92075B 92075-174 2
DAMPER RUBBER 92075C 92075-175 2
SPRING,TAP 92081 92081-1171 1
OIL SEAL,FUEL TANK 92093 92093-1030 1
BOLT-SOCKET 120 120S0512 7
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 4
"O" RING,4MM 670 670B1504 1
TUBE-BREATHER (BULK) 702 702A071000 1 CN,US
TUBE-BREATHER (BULK) 702A 702A071000 1
TUBE-BREATHER (BULK) 702B 702A071000 1
