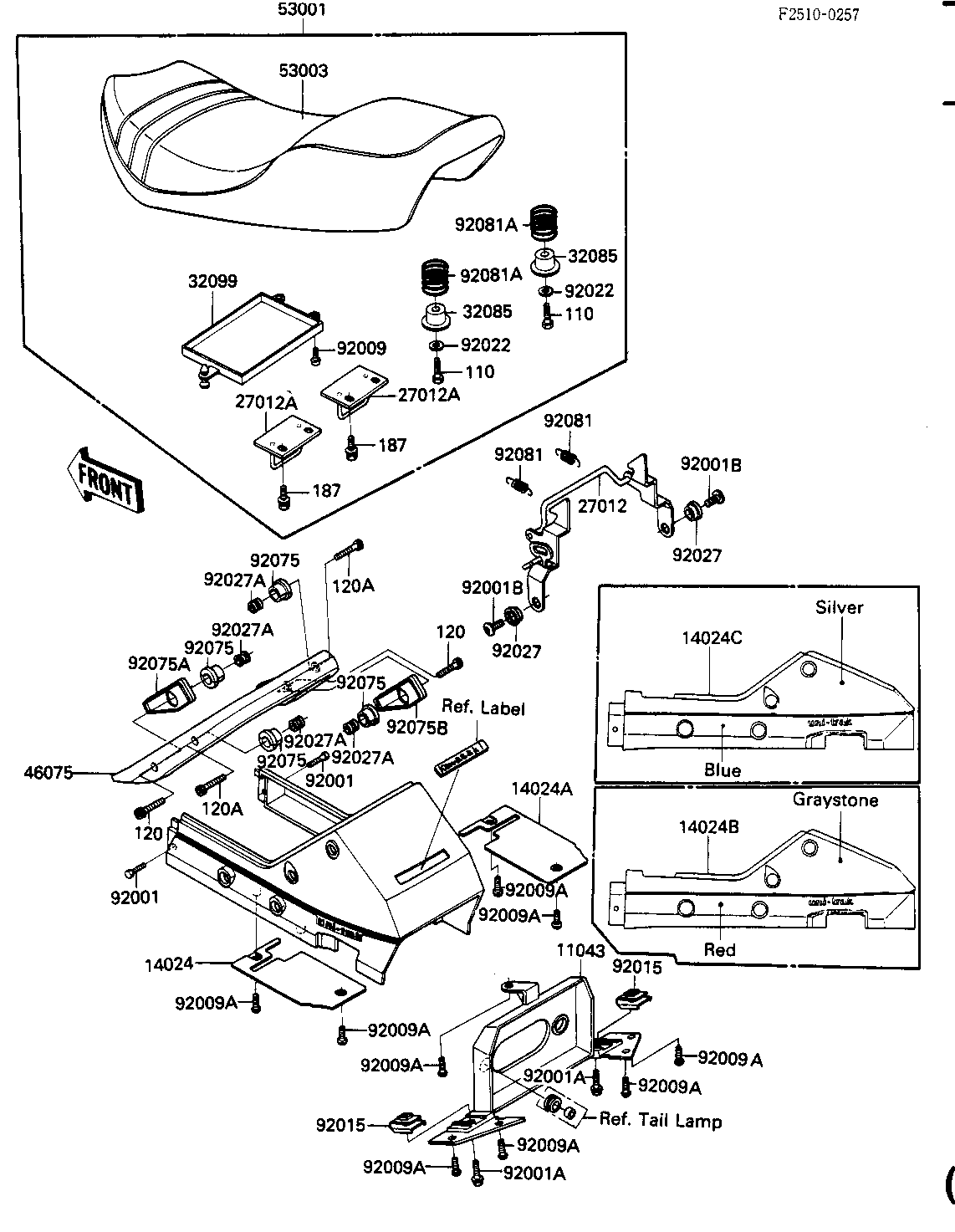

1984 Ninja® - SEAT/SEAT COVER (ZX900-A1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,TAIL LAMP | 11043 | 11043-1458 | 1 | ||
COVER | 14024 | 14025-1888 | 1 | ||
COVER | 14024A | 14025-1889 | 1 | ||
COVER,SEAT,F.RED/M.GR | 14024B | 14025-5179-L7 | 1 | ||
COVER,SEAT,L.P.BLUE/G.SIL (Can | 14024C | 14025-5180-L8 | 1 | CN | |
HOOK,SEAT LOCK | 27012 | 27012-1321 | 1 | ||
HOOK, SEAT | 27012A | 53008-021 | 2 | ||
STOPPER,SEAT | 32085 | 32085-1167 | 2 | ||
CASE | 32099 | 32099-011 | 1 | ||
GRIP,FRAME | 46075 | 46075-1054 | 1 | ||
SEAT-ASSY,DUAL | 53001 | 53001-1370 | 1 | ||
LEATHER,SEAT | 53003 | 53003-1119 | 1 | ||
BOLT,6X12 | 92001 | 92001-1771 | 2 | ||
BOLT | 92001A | 92001-1826 | 2 | ||
BOLT,8X16 | 92001B | 92001-1841 | 2 | ||
SCREW | 92009 | 92009-1043 | 2 | ||
SCREW | 92009A | 92009-1197 | 9 | ||
NUT,TAIL LAMP BRACKET | 92015 | 92015-1346 | 2 | ||
WASHER,6.5X16X2 | 92022 | 92022-1565 | 2 | ||
COLLAR,8.2X13X6 | 92027 | 92027-1565 | 2 | ||
COLLAR,L=14 | 92027A | 92027-1742 | 4 | ||
DAMPER,FRAME GRIP | 92075 | 92075-1603 | 4 | ||
DAMPER,FRAME GRIP,LH | 92075A | 92075-1604 | 1 | ||
DAMPER,FRAME GRIP,RH | 92075B | 92075-1605 | 1 | ||
SPRING,HOOK RETURN | 92081 | 92081-1580 | 2 | ||
SPRING,SEAT | 92081A | 92081-1664 | 2 | ||
BOLT-UPSET | 110 | 112G0625 | 2 | ||
BOLT-SOCKET,8X35,BLAC | 120 | 120S0835 | 2 | ||
BOLT-SOCKET,8X40,BLAC | 120A | 120S0840 | 2 | ||
BOLT 6X14 | 187 | 187B0614 | 4 |
