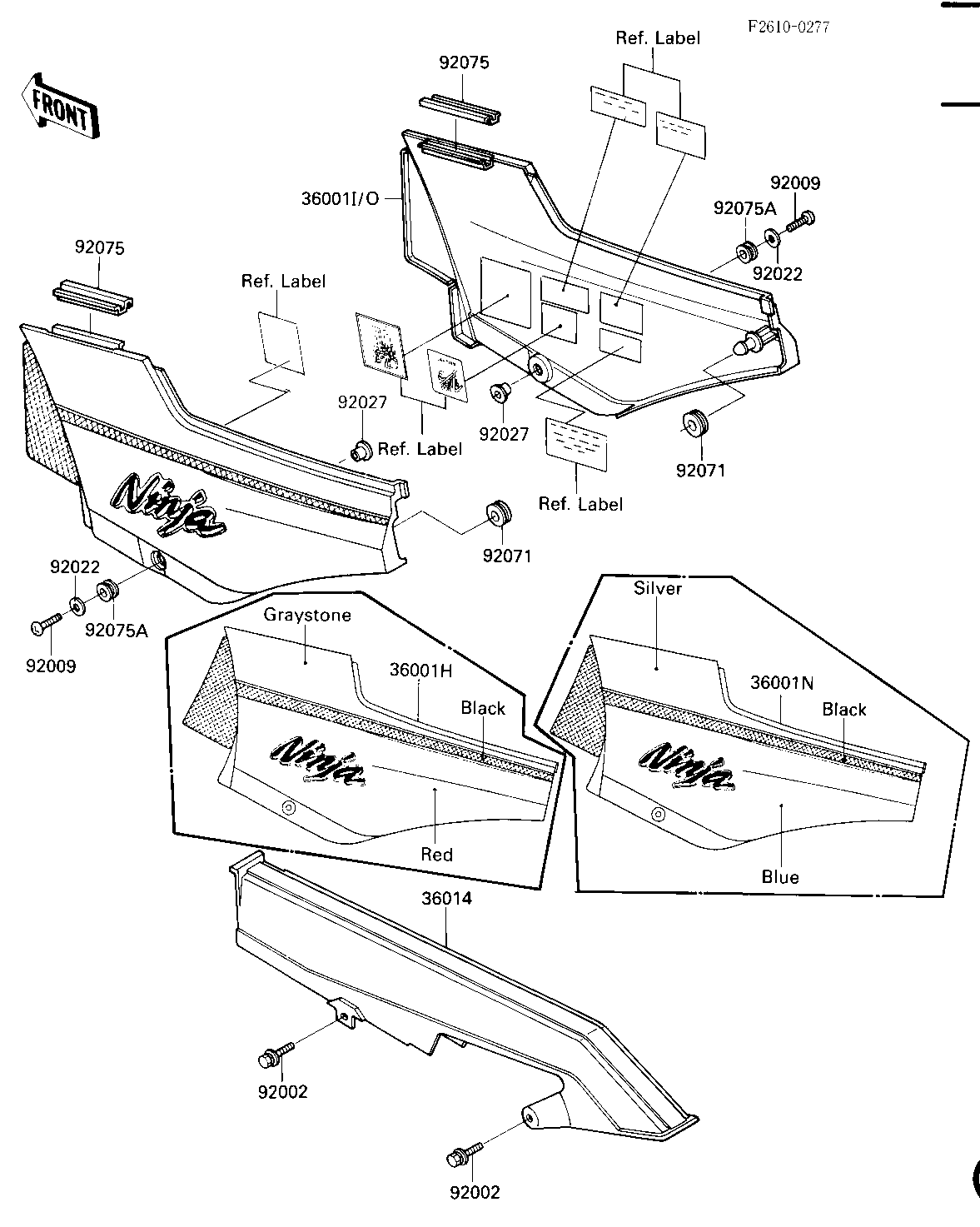

1984 Ninja® - SIDE COVERS/CHAIN COVER (ZX900-A1)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,BLACK/R 36001H 36001-5424-L9 1
COVER-SIDE,RH,BLACK/R 36001I 36001-5425-L9 1
COVER-SIDE,LH,BLACK/BLUE/ (Can 36001N 36001-5434-M2 1 CN
COVER-SIDE,RH,BLACK/BLUE/ (Can 360010 36001-5435-M2 1 CN
CASE-CHAIN 36014 36014-1165 1
BOLT,6X16 92002 92002-1136 2
SCREW 92009 92009-1663 2
WASHER,6.5X20X1.6 92022 92022-1619 2
COLLAR 92027 92027-1795 2
GROMMET 92071 92071-056 2
DAMPER,SIDE COVER 92075 92075-1601 2
DAMPER 92075A 92075-1634 2
