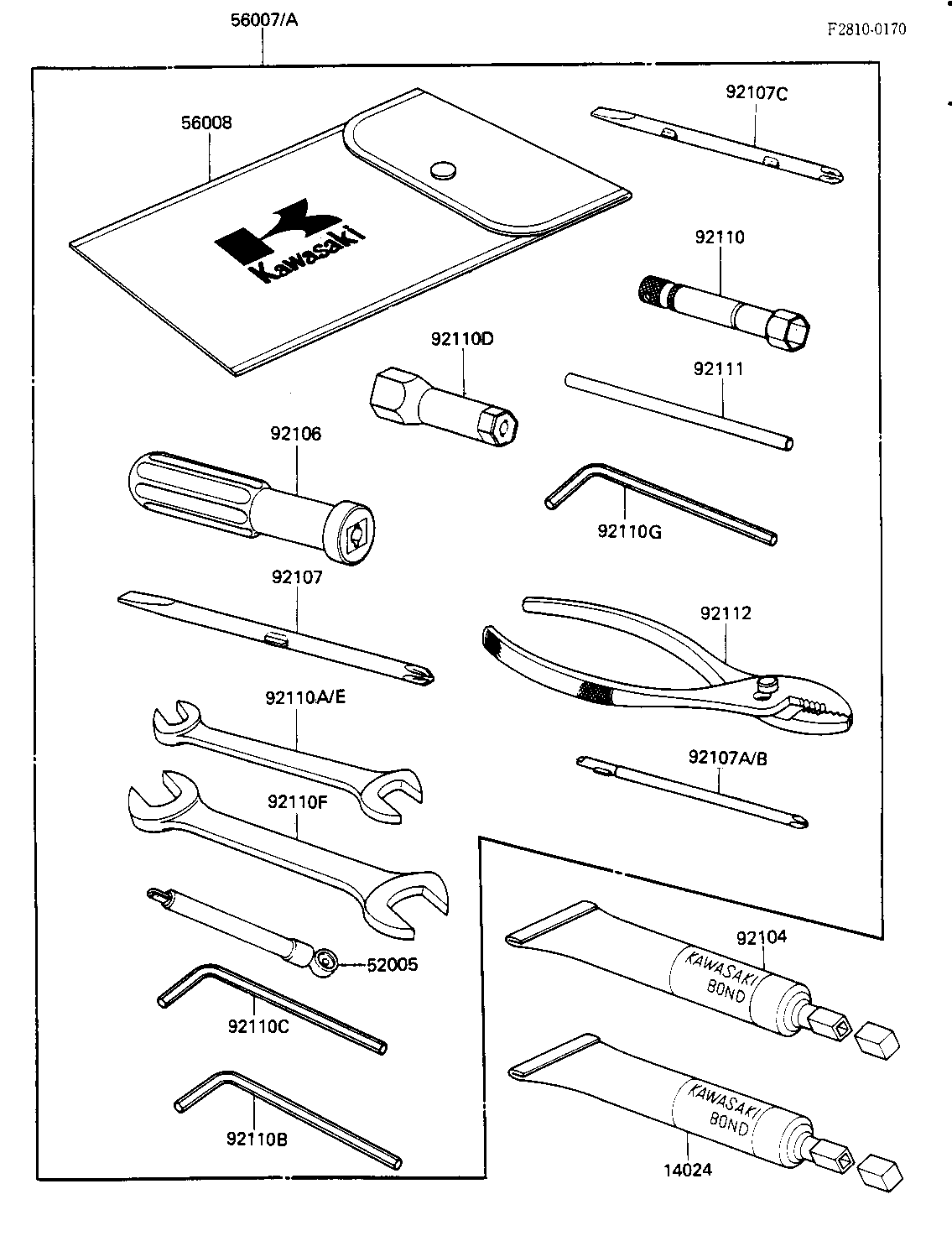

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOND,#10 14024 56019-120 1
GAUGE,AIR,3.5KG/CM2 52005 52005-1031 1
TOOLKIT 56007 56007-1194 1
BAG,TOOLKIT 56008 56008-1019 1
GASKET-LIQUID,BLACK 92104 92104-1003 1
GRIP,SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER 92107 92107-1052 1
92107-1002 (Canada) 92107B 92107-008 1
WRENCH,SPARK PLUG 92110 92110-1018 1
TOOL-WRENCH,OPEN END 92110A 92110-1038 1
TOOL-WRENCH,ALLEN,12M 92110B 92110-1104 1
TOOL-WRENCH,ALLEN,8MM 92110C 92110-1108 1
TOOL-WRENCH 92110D 92110-1112 1
TOOL-WRENCH,OPEN END, 92110F 92110-1153 1
BAR,SPARK PLUG WRENCH 92111 92111-005 1
PLIERS,160MM 92112 92112-003 1
