Part Item Information

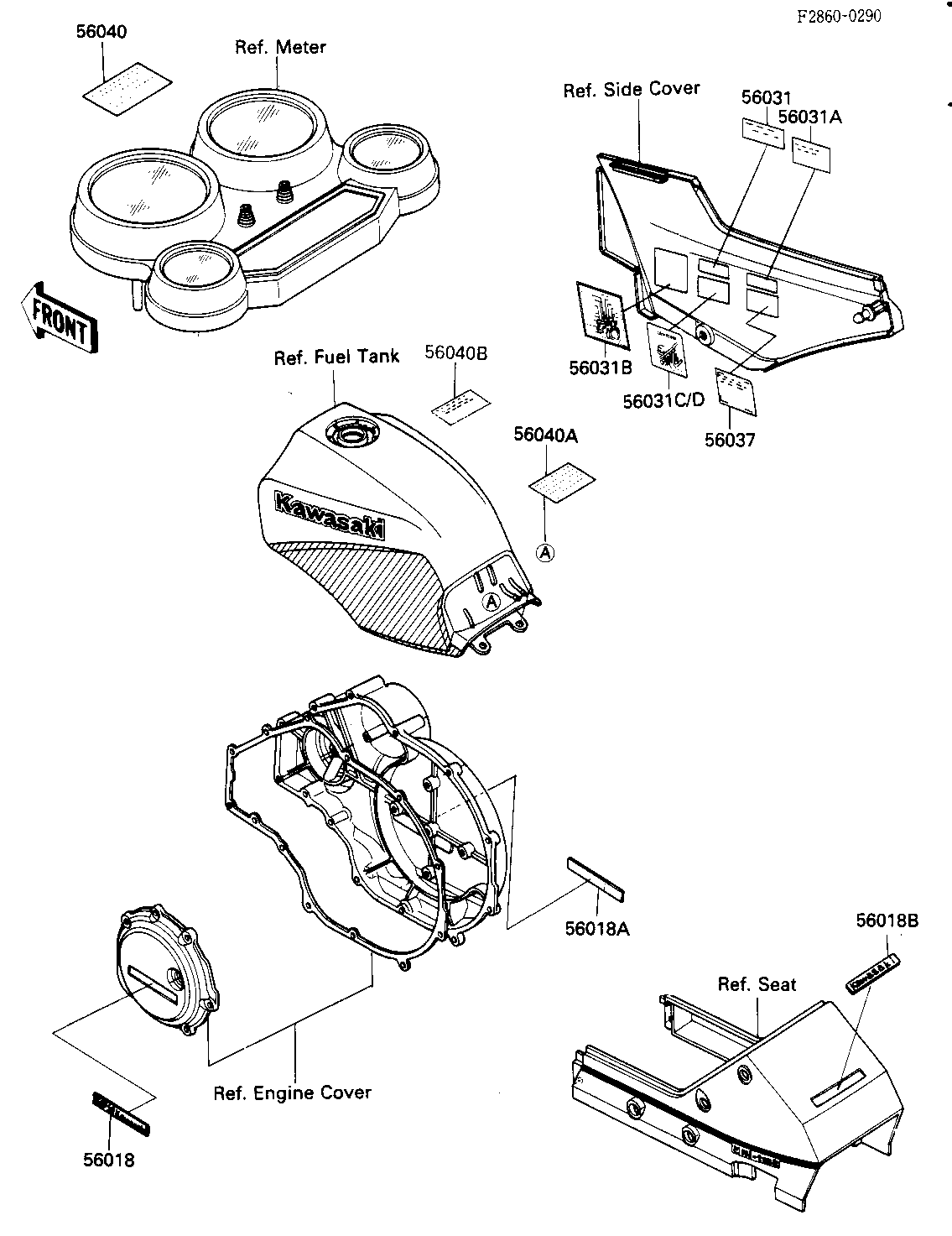

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,LEFT COVER 56018 56018-1501 1
MARK,CLUTCH COVER 56018A 56018-1502 1
MARK 56018B 56018-1507 1
LABEL-MANUAL,OIL & OI 56031 56031-1428 1
LABEL-MANUAL,CHAIN 56031A 56031-1352 1
LABEL-MANUAL,DAILY SA 56031B 56031-1353 1
LABEL-MANUAL,BATTERY 56031C 56031-1400 1 CN,US
LABEL-MANUAL,BATTERY 56031D 56031-1407 1 CA
LABEL,TIRE & LOAD 56037 56037-1285 1
LABEL,BRAKE-IN 56040 56040-1007 1 CA,US
LABEL,AIR INTAKE 56040A 56040-1014 1
LABEL-WARNING,FUEL TK 56040B 56040-1121 1 CA
