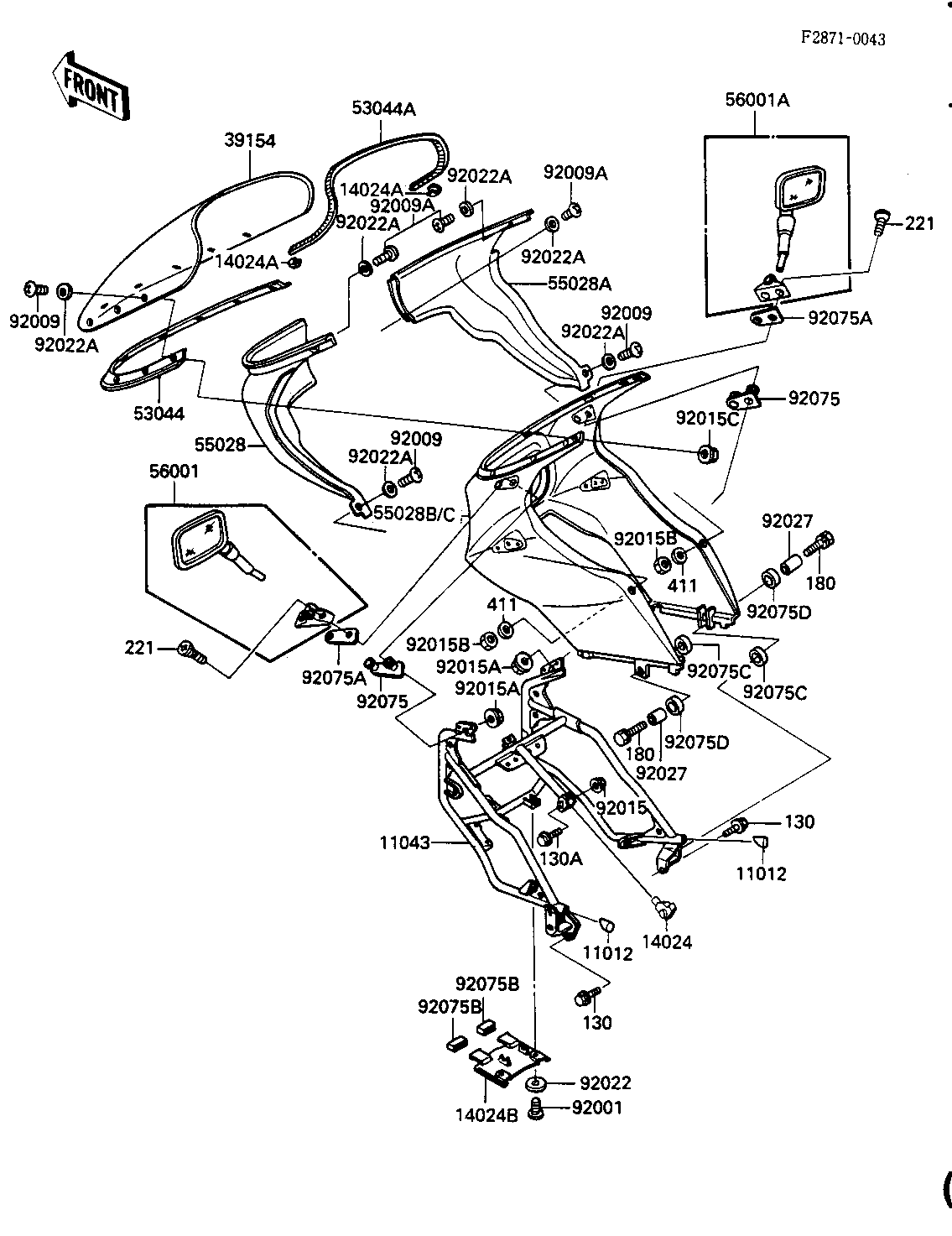

1984 Ninja® - FAIRING (ZX900A-1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,COWLING BRACKET 11012 11012-1401 2
BRACKET,COWLING BODY 11043 11043-1452 1
COVER,COWLING BRACKET 14024 14025-1718 1
COVER,WINDSHIELD END 14024A 14025-1756 2
COVER 14024B 14025-1823 1
WINDSHIELD 39154 39154-1091 1
TRIM,WINDSHIELD 53044 53044-1119 1
TRIM,COWLING 53044A 53044-1120 1
COWLING,UPP,INNER,LH 55028 55028-1066 1
COWLING,UPP,INNER,RH 55028A 55028-5068 1
COWLING,UPP,OUTER,F.R 55028B 55028-5049-B1 1
COWLING,UPP,OUTER,L.P.BLU (Can 55028C 55028-5051-M4 1 CN
MIRROR-ASSY,LH 56001 56001-1219 1
MIRROR-ASSY,RH 56001A 56001-1220 1
BOLT,6X14 92001 92001-1782 2
SCREW 92009 92009-1654 10
SCREW 92009A 92009-1651 3
NUT,FLANGED,8MM 92015 92015-1408 1
NUT-6MM 92015A 92015-1078 4
NUT,FLANGED,5MM 92015B 92015-1259 2
NUT,5MM,COWLING 92015C 92015-1343 8
WASHER,6.5X16X2 92022 92022-1342 2
WASHER,NYLON,5.3X11.5 92022A 92022-1521 13
COLLAR 92027 92027-251 2
DAMPER,MIRROR 92075 92075-1492 2
DAMPER,MIRROR 92075A 92075-1500 2
DAMPER,COWLING 92075B 92075-1602 2
RUBBER,FENDER COVER 92075C 92075-174 2
DAMPER RUBBER 92075D 92075-175 2
BOLT-FLANGED 130 130J0812 2
BOLT-FLANGED,8X30 130A 130J0830 1
BOLT-UPSET-WS,6X25 180 180B0625 2
SCREW-CSK-CROS,6X30 221 221C0630 4
WASHER PLAIN 5MM 411 411B0500 2
