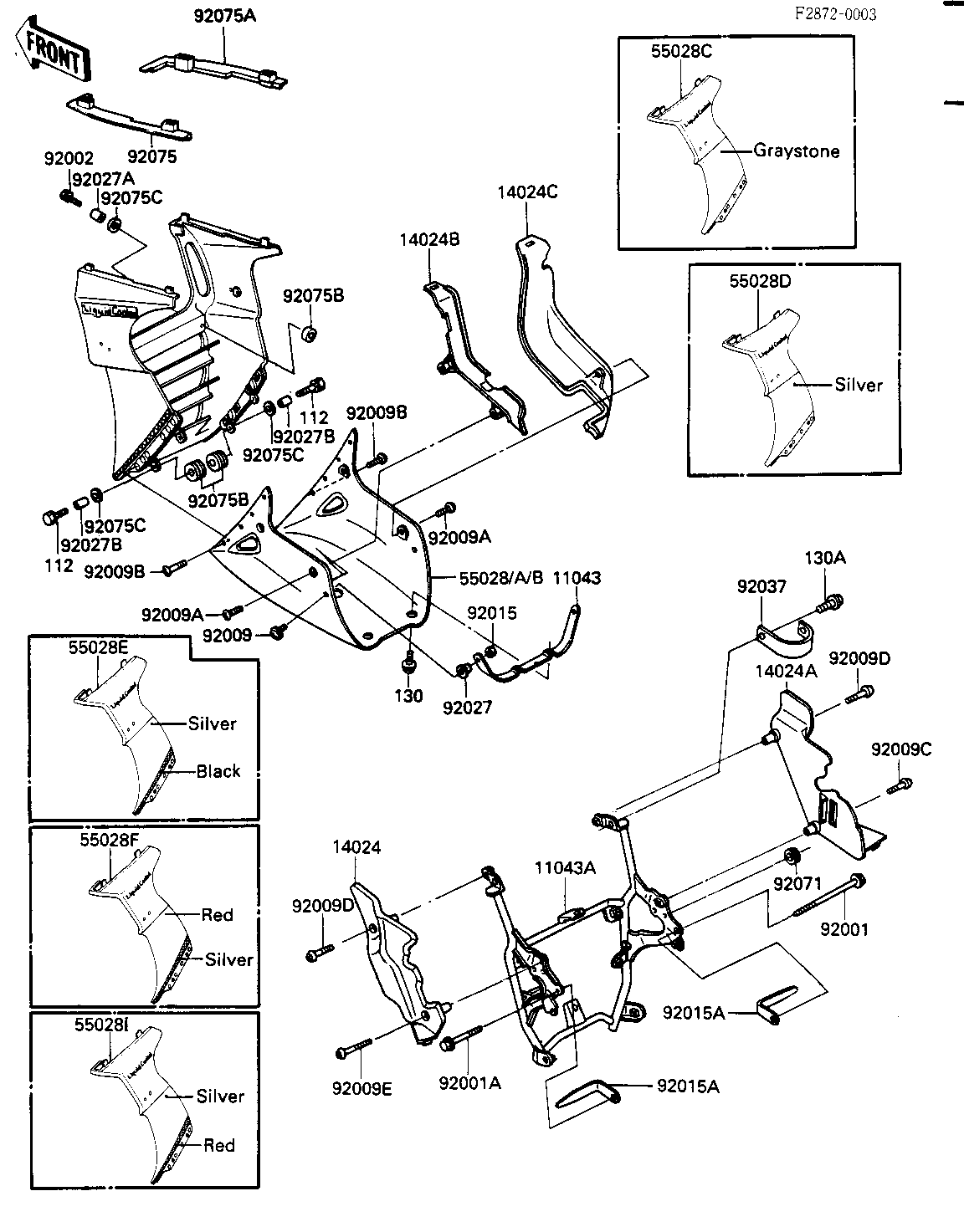

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,COWLING,LWR | 11043 | 11043-1632 | 1 | ||
BRACKET,COWLING,LWR | 11043A | 11043-1873 | 1 | ||
COVER | 14024 | 14025-1893 | 1 | ||
COVER | 14024A | 14025-1894 | 1 | ||
COVER | 14024B | 14025-1896 | 1 | ||
COVER | 14024C | 14025-1897 | 1 | ||
COWLING,LWR,F.RED | 55028 | 55028-1072-B1 | 1 | CA,US | |
COWLING,LWR,EBONY | 55028A | 55028-1072-H8 | 1 | ||
COWLING,LWR,L.P.BLUE (Canada) | 55028B | 55028-1072-M4 | 1 | CN | |
COWLING,CNT,M.GRAYSTO | 55028C | 55028-5055-C4 | 1 | ||
COWLING,CNT,GRSL,BLUE (Canada) | 55028D | 55028-5056-F2 | 1 | CN | |
COWLING,CNT,G.S. | 55028E | 55028-5072-F2 | 1 | CA,US | |
BOLT,FLANGED,10X60 | 92001 | 92001-1617 | 1 | ||
BOLT,FLANGED,10X41,BL | 92001A | 92001-1844 | 1 | ||
BOLT-FLANGED,6X25 | 92002 | 130J0625 | 2 | ||
SCREW | 92009 | 92009-1664 | 2 | ||
SCREW | 92009A | 92009-1654 | 4 | ||
SCREW | 92009B | 92009-1663 | 8 | ||
SCREW,6X35 | 92009C | 92009-1351 | 1 | ||
SCREW,6X40 | 92009D | 92009-1352 | 2 | ||
SCREW,6X55 | 92009E | 92009-1353 | 1 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1339 | 2 | ||
NUT | 92015A | 92015-1478 | 2 | ||
COLLAR,FRONT FENDER | 92027 | 92027-1166 | 2 | ||
COLLAR,L=13.1,BLACK | 92027A | 92027-1450 | 2 | ||
COLLAR | 92027B | 92027-251 | 4 | ||
CLAMP,HARNESS | 92037 | 92037-113 | 1 | ||
GROMMET | 92071 | 92071-024 | 1 | ||
DAMPER | 92075 | 92075-1645 | 1 | ||
DAMPER | 92075A | 92075-1646 | 1 | ||
RUBBER,FENDER COVER | 92075B | 92075-174 | 6 | ||
DAMPER RUBBER | 92075C | 92075-175 | 6 | ||
BOLT-UPSET | 112 | 112G0625 | 4 | ||
BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | ||
BOLT,FLANGE | 130A | 130B0812 | 2 |
