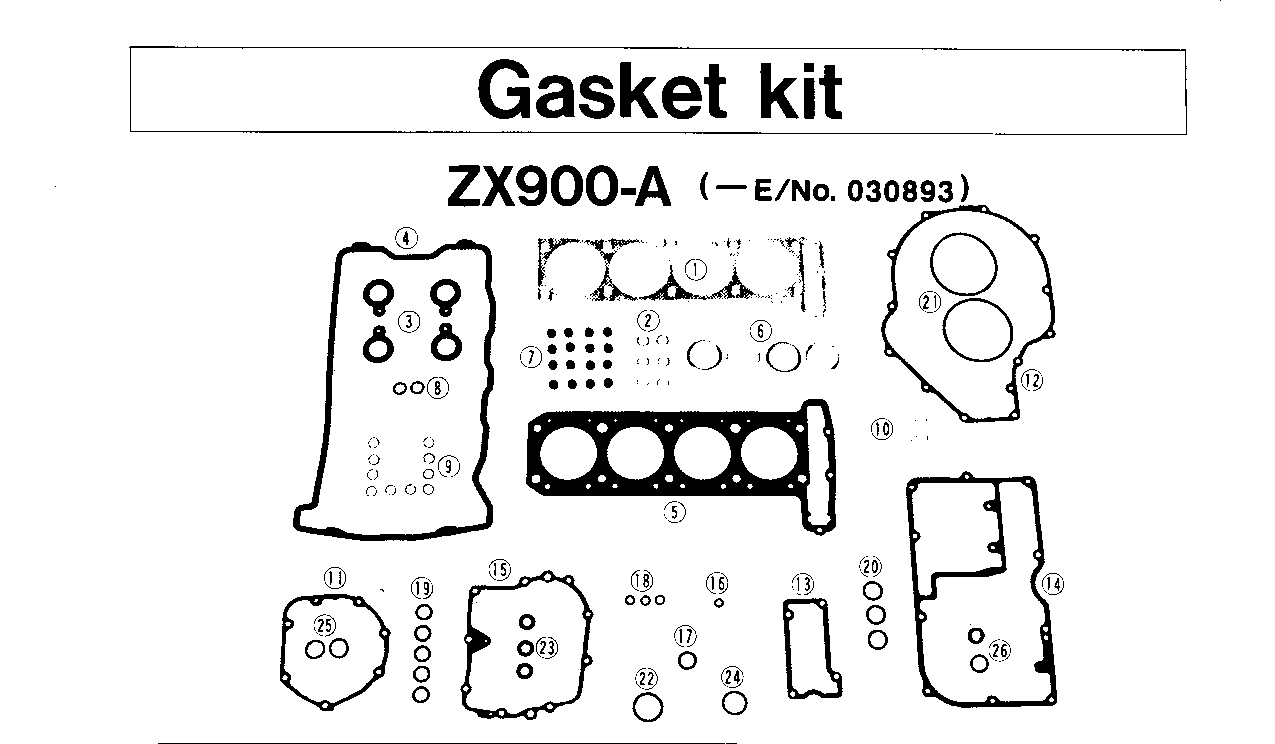

1984 Ninja® - GASKET KIT ZX900-A (-E/NO. 030893)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 1 11004-1111 1 11028-1083
GASKET,12.4X17X1.5 2 11009-1376 6 11028-1083
GASKET 3 11009-1377 4 11028-1083
GASKET,CYLINDER HEAD 4 11009-1378 1 11028-1083
GASKET,CYLINDER BASE 5 11009-1386 1 11028-1083
GASKET,EXHAUST PIPE H 6 11009-1840 4 11028-1083
SEAL-OIL,RVC2-5.5X8.5 7 92049-1062 16 11028-1083
RING-O,ID=13.8 8 92055-1141 2 11028-1083
RING-O,11.7MM 9 92055-1265 16 11028-1083
