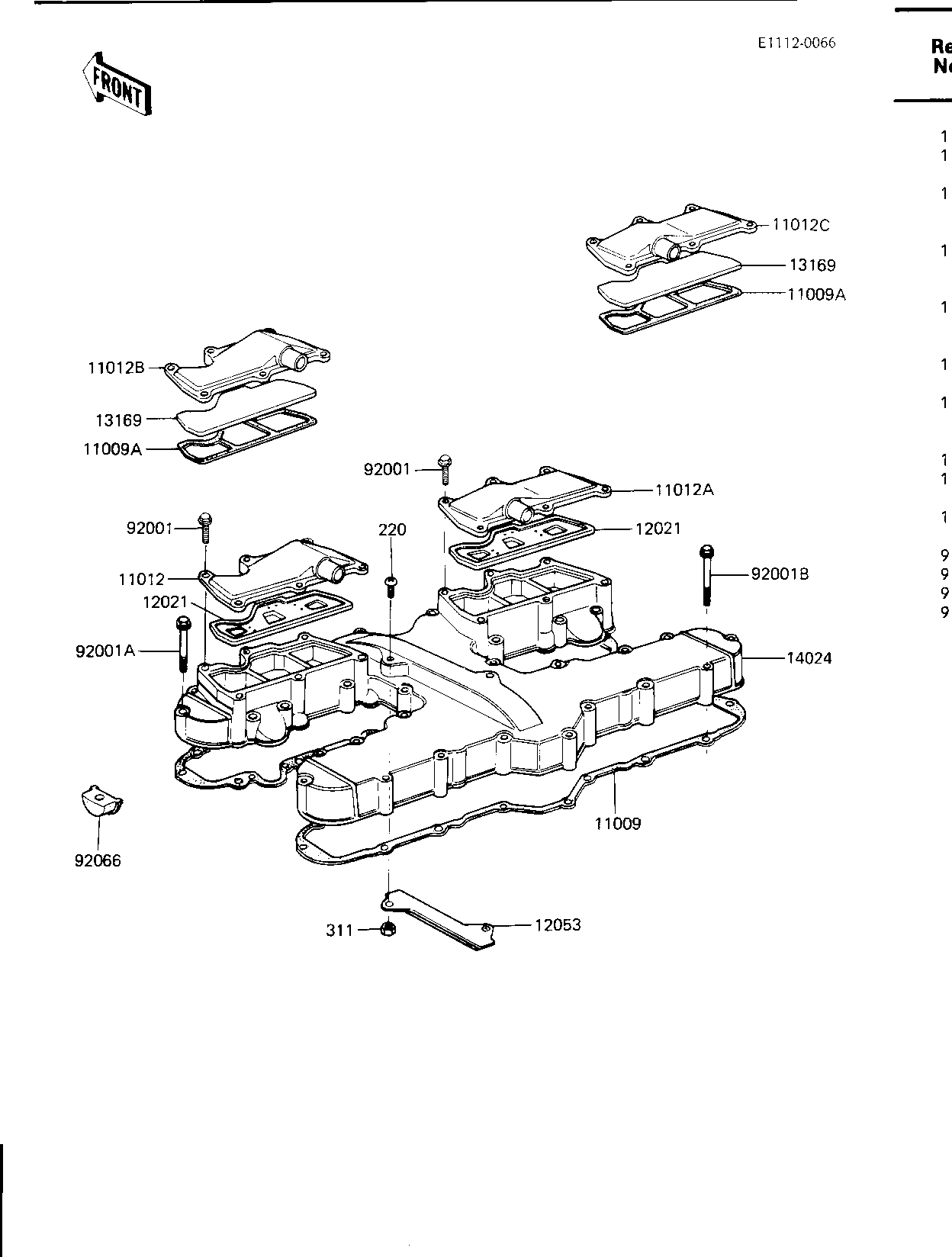

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYL HEAD COVER 11009 11009-1095 1
GASKET (Canada) 11009A 11009-1170 2 CN
CAP,L.H,REED VALVE 11012 11012-1057 1 US
CAP,R.H,REED VALVE 11012A 11012-1058 1 US
CAP,L.H (Canada) 11012B 11012-1107 1 CN
CAP,R.H (Canada) 11012C 11012-1108 1 CN
VALVE ASSY,REED 12021 12021-1004 2 US
GUIDE,CHAIN,CAM 12053 12053-1026 1
PLATE (Canada) 13169 13169-1221 2 CN
COVER,HEAD 14024 14025-1639 1
BOLT,HEX HEAD,6X20 92001 92001-1100 12
BOLT,HEX HEAD,6X52 92001A 92001-1192 4
BOLT,HEX HEAD,6X45 92001B 92003-092 28
PLUG,CAMSHAFT 92066 92066-1030 4
SCREW PAN HEAD 6X16 220 220B0616 2
NUT 6MM 311 311B0600 2
