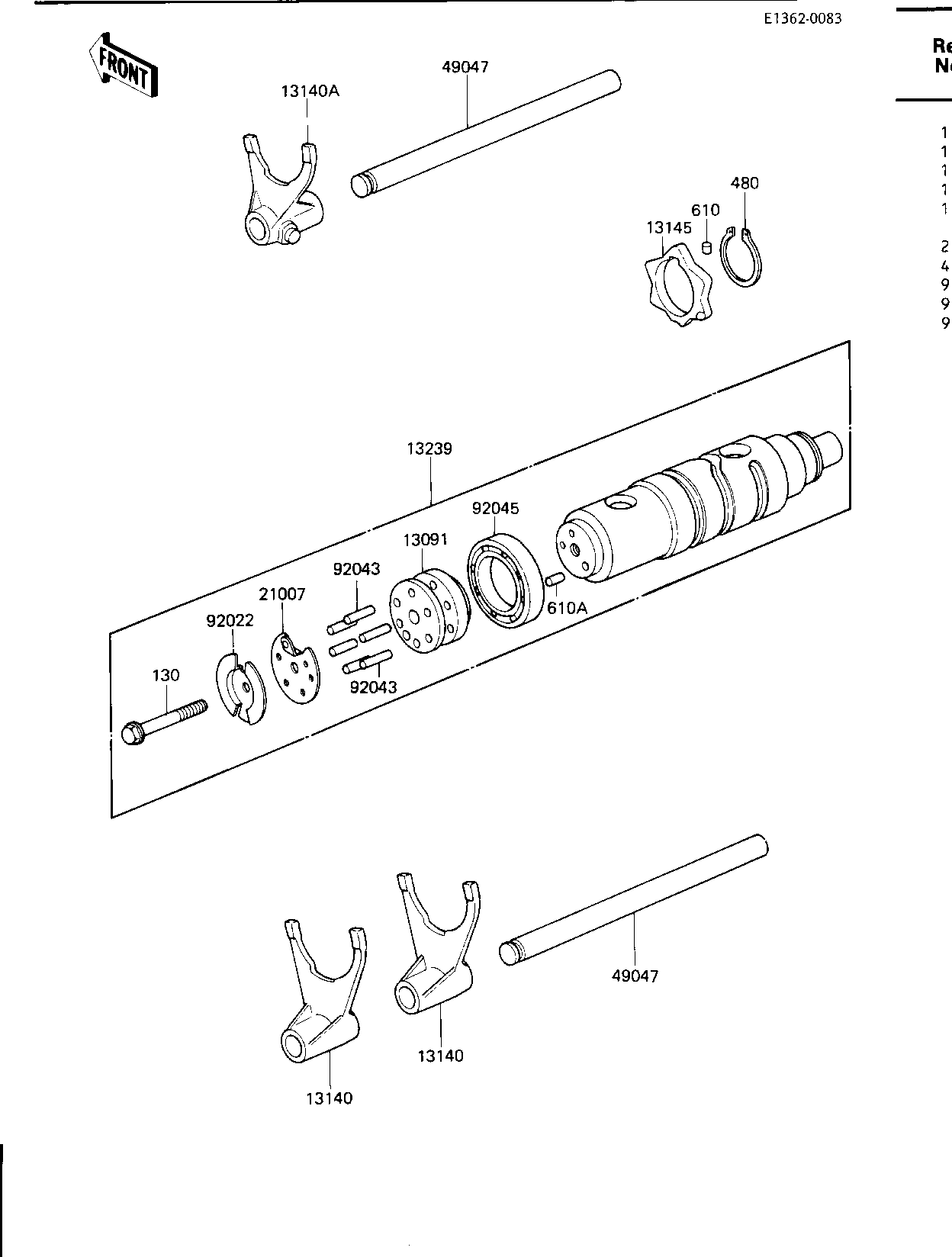

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,BEARING 13091 13091-1113 1
FORK-SHIFT,LOW,2,3RD 13140 13140-1050 2
FORK-SHIFT,4TH&TOP 13140A 13140-1051 1
CAM-CHANGE DRUM 13145 13145-1058 1
DRUM-ASSY-CHANGE 13239 13239-1109 1
ROTOR,NEUTRAL 21007 21007-1070 1
ROD,SHIFT,12X173 49047 49047-1008 2
WASHER,NEUTRAL ROTOR 92022 92022-1399 1
PIN-CHANGE DRUM 92043 92042-020 6
BEARING,BALL,#6906 92045 92045-1016 1
BOLT,FLANGED,6X35 130 130H0635 1
CIRCLIP,30MM 480 480J3000 1
PIN-DOWEL,4X6 610 610A0406 1
PIN DOWEL 4X8 610A 610A0408 1
