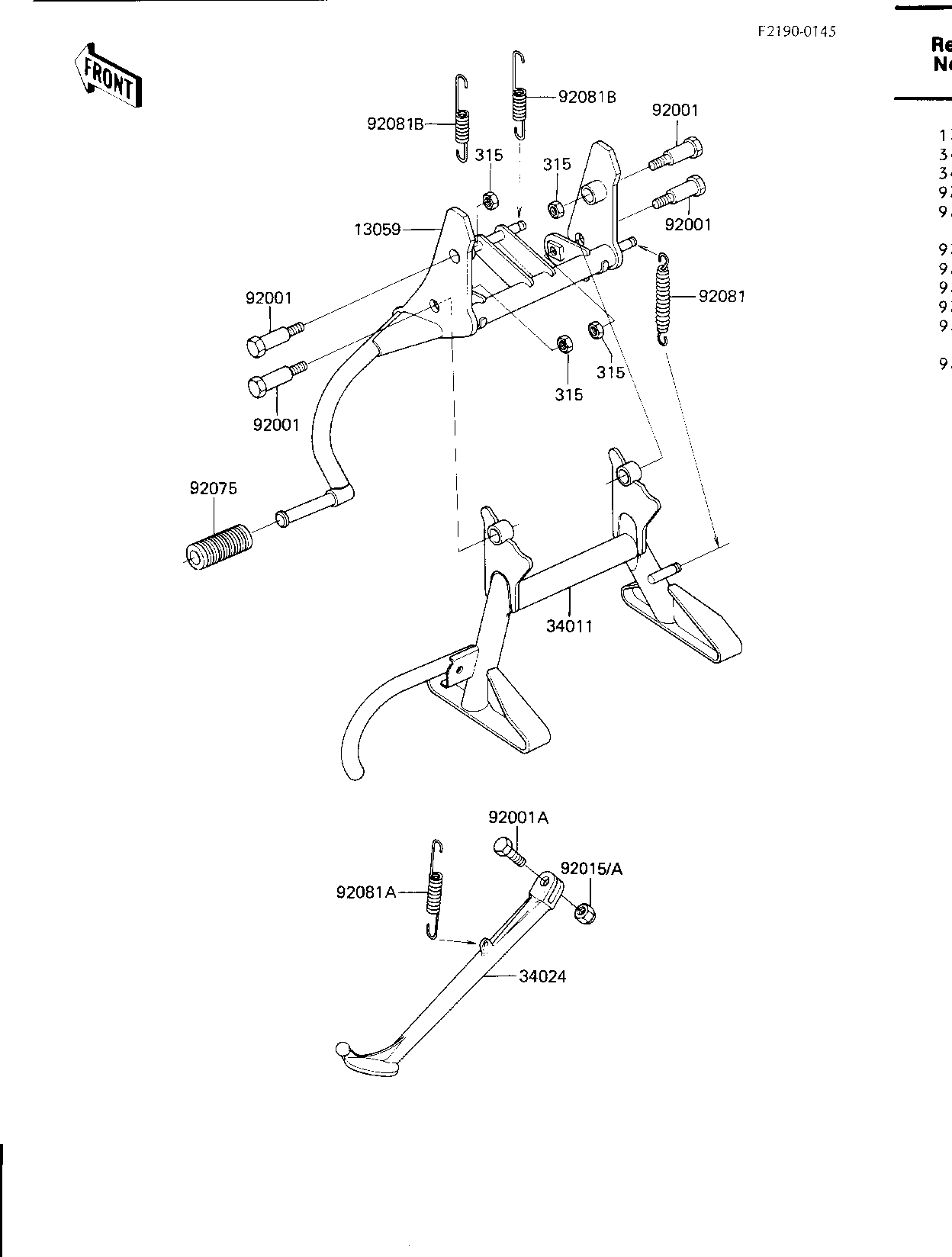

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-KICK,CENTER STA 13059 13059-1102 1
STAND-CENTER 34011 34011-1103 1
STAND-SIDE 34024 34024-1158 1
BOLT,CENTER STAND 92001 92001-1848 4
BOLT,12X43 92001A 92001-1984 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 1
RUBBER KICK PEDAL 92075 13063-002 1
SPRING,MAIN STAND 92081 34023-012 1
SPRING,SIDE STAND 92081A 34025-005 1
SPRING,STAND 92081B 92081-1657 2
NUT 10MM 315 315B1000 4
