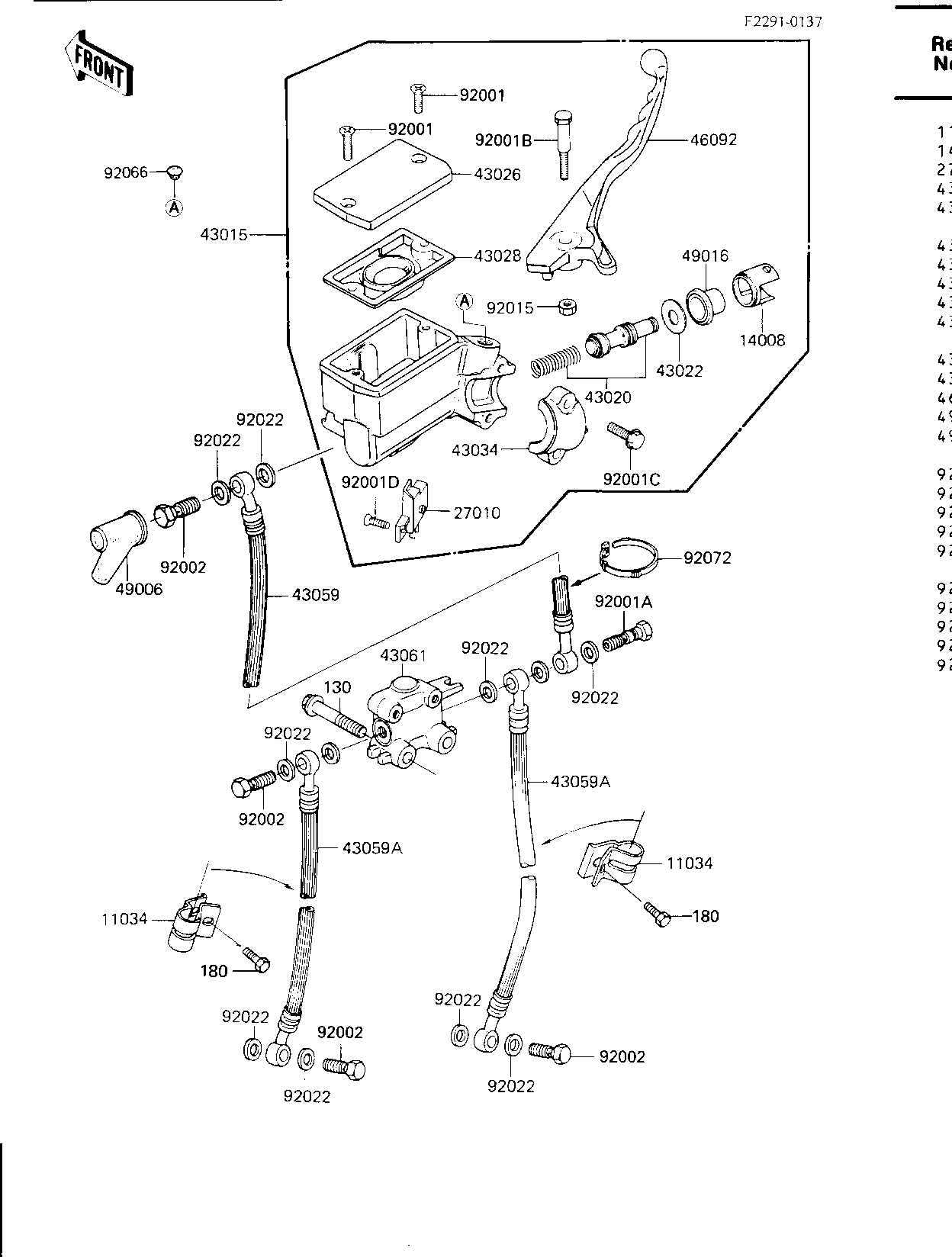

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,BRAKE HOSE | 11034 | 11034-1284 | 2 | ||
LINER,PISTON | 14008 | 14008-1035 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1056 | 1 | ||
CYLINDER-ASSY-MASTER | 43015 | 43015-1141 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1079 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1009 | 1 | ||
CAP-BRAKE,MASTER CYLI | 43026 | 43026-1027 | 1 | ||
DIAPHRAGM,MASTER CYL1 | 43028 | 43028-1029 | 1 | ||
HOLDER,MASTER CYLINDR | 43034 | 43034-1001 | 1 | ||
HOSE-BRAKE,L=550 | 43059 | 43059-1160 | 1 | ||
HOSE-BRAKE,L=570 | 43059A | 43059-1175 | 2 | ||
JOINT,BRAKE | 43061 | 43061-1001 | 1 | ||
LEVER-GRIP,FRONT BRAK | 46092 | 46092-1102 | 1 | ||
BOOT,DUST | 49006 | 49006-1067 | 1 | ||
COVER-SEAL,BRK PISTON | 49016 | 49016-1041 | 1 | ||
SCREW,COUNTERSUNK HED | 92001 | 92001-1055 | 2 | ||
BOLT | 92001A | 92002-1909 | 1 | ||
BOLT,6X37.3,BLACK | 92001B | 92001-1512 | 1 | ||
BOLT,W/WASHER,6X25,BL | 92001C | 92001-1513 | 2 | ||
SCREW-COUNTERSUNK | 92001D | 92001-1532 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 4 | ||
NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 11 | ||
PLUG,9.5X8 | 92066 | 92066-1077 | 1 | ||
BAND,WIRING HARNESS | 92072 | 92072-056 | 1 | ||
BOLT,FLANGED,8X45 | 130 | 130G0845 | 2 | ||
BOLT-UPSET-WS | 180 | 180C0612 | 2 |
