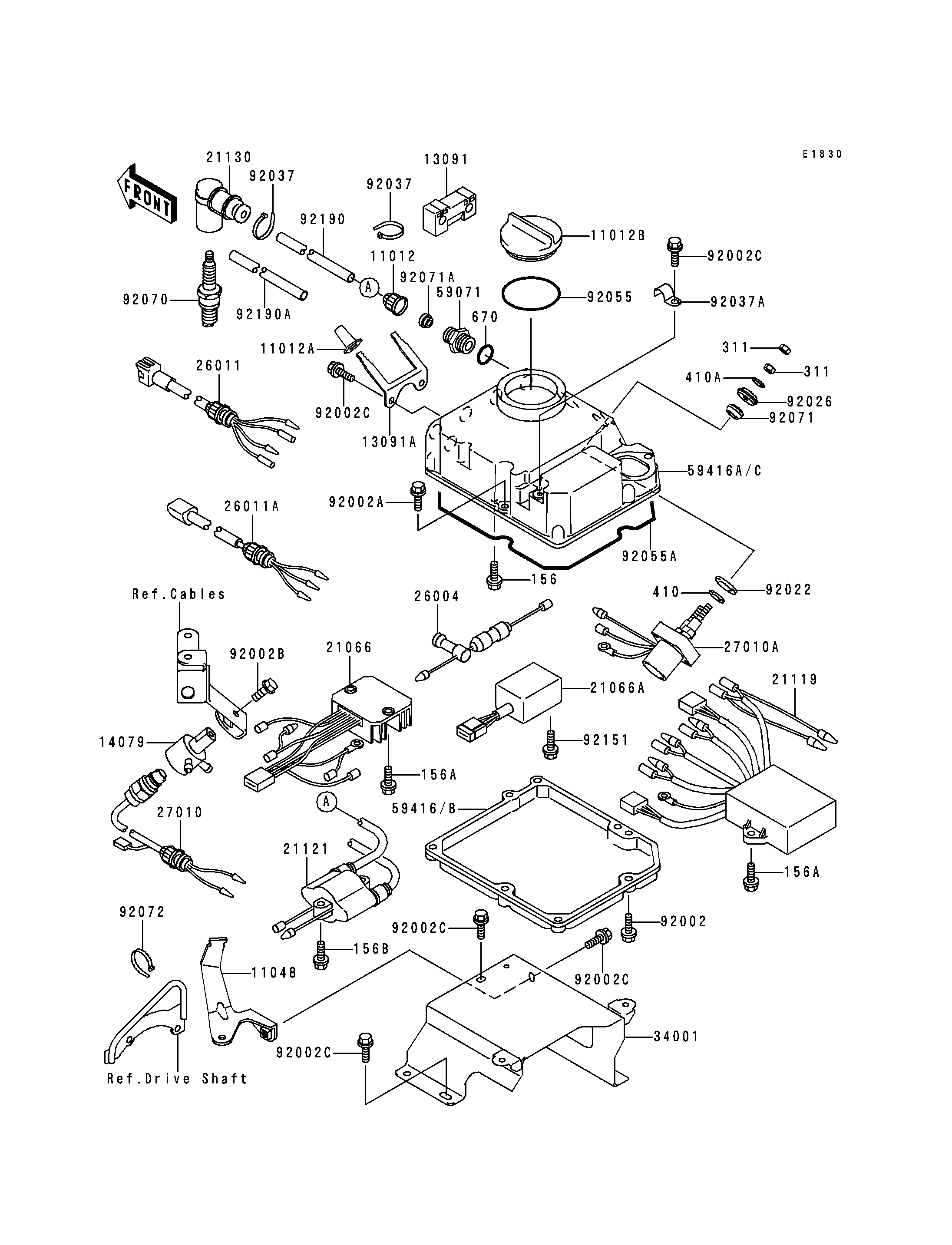

1998 Xi Sport - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012A
11012A
11012B
11012B
11048
11048
13091
13091
13091A
13091A
14079
14079
21066
21066
21066A
21066A
21119
21119
21121
21121
21130
21130
26004
26004
26011
26011
26011A
26011A
27010
27010
27010A
27010A
34001
34001
59071
59071
59416
59416
59416A
59416A
92002
92002
92002A
92002A
92002B
92002B
92002C
92002C
92002C
92002C
92002C
92002C
92002C
92002C
92002C
92002C
92022
92022
92026
92026
92037
92037
92037
92037
92037A
92037A
92055
92055
92055A
92055A
92070
92070
92071
92071
92071A
92071A
92072
92072
92151
92151
92190
92190
92190A
92190A
156
156
156A
156A
156A
156A
156B
156B
311
311
311
311
410
410
410A
410A
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3005 2
CAP,HOLDER 11012A 11012-3768 2
CAP 11012B 11012-3791 1
BRACKET,HIGH TENSION CORD 11048 11048-3736 1
HOLDER,HIGH TENSION CORD 13091 13091-3771 1
HOLDER,PLUG CAP 13091A 13091-3781 1
HOLDER-ASSY 14079 14079-3710 1
REGULATOR-VOLTAGE 21066 21066-3711 1
REGULATOR-VOLTAGE 21066A 21066-3714 1
IGNITER 21119 21119-3750 1
COIL-IGNITION 21121 21121-3704 1
CAP-SPARK PLUG 21130 21130-3706 2
FUSE-ASSY 26004 26004-3712 1
WIRE-LEAD 26011 26011-3799 1
WIRE-LEAD 26011A 26011-3800 1
SWITCH 27010 27010-3733 1
SWITCH,STARTER RELAY 27010A 27010-3760 1
STAND,ELECTRIC CASE 34001 34001-3705 1
JOINT 59071 59071-3001 5
CASE-ELECTRIC,LWR 59416 59416-3728 1
CASE-ELECTRIC,UPP 59416A 59416-3746 1
BOLT,6X25 92002 92002-3714 5
BOLT,6X35 92002A 92002-3715 3
BOLT,6X16 92002B 92002-3728 1
BOLT,6X12 92002C 92002-3763 7
WASHER 92022 92022-3035 2
SPACER 92026 92026-3703 2
CLAMP 92037 92037-1173 7
CLAMP 92037A 92037-3730 1
RING-O 92055 92055-1292 1
RING-O,ELECTRIC CASE 92055A 92055-3733 1
PLUG-SPARK,BR8ES(NGK),SOLID 92070 92070-2078 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-527 2
BAND 92072 92072-3778 2
BOLT,6X12 92151 92151-3724 1
TUBE,HIGH TENSION,L=330 92190 92190-3707 1
TUBE,HIGH TENSION,L=210 92190A 92190-3708 1
BOLT-WP,6X14 156 156R0614 1
BOLT-WP,6X22 156A 156R0622 4
BOLT-WP 156B 156R0630 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
O RING,16MM 670 670B2016 5
