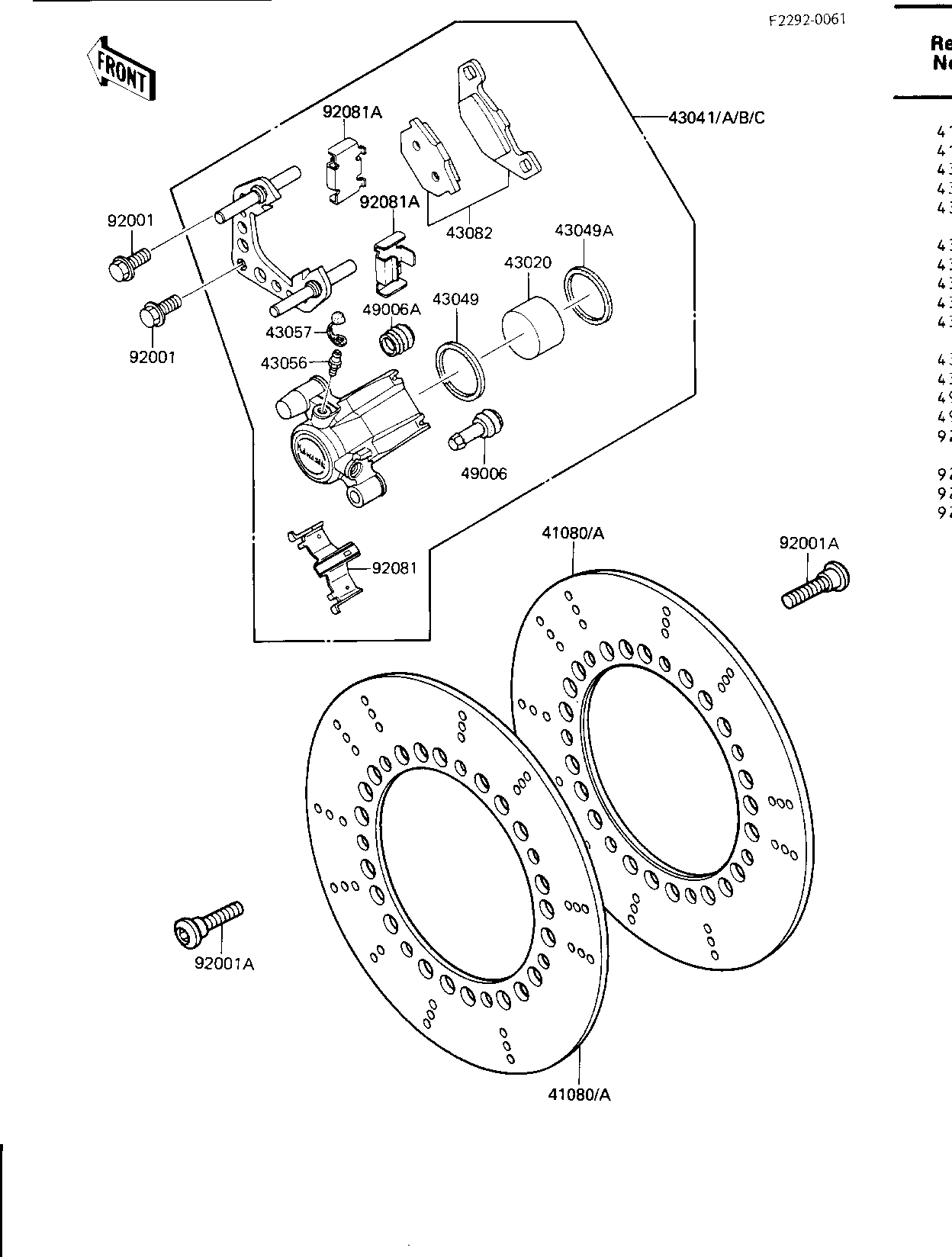

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR.SILVER 41080A 41080-1125 2
PISTON-COMP-BRAKE 43020 43020-1066 2
CALIPER-ASSY,FR,LH 43041B 43041-1176 1
CALIPER-ASSY,FR,RH 43041C 43041-1177 1
RING,PISTON SEAL 43049 43049-002 2
PACKING,PISTON 43049A 43049-1028 2
BREEDER 43056 43056-003 2
CAP,BREEDER 43057 43057-003 2
PAD-ASSY-BRAKE 43082 43082-1029 2
BOOT,CALIPER 49006 49006-1094 2
BOOT,CALIPER 49006A 49006-1095 2
BOLT,FLANGED,10X41 92001 92001-1732 4
BOLT,SOCKET,8X30 92001A 92001-1951 14
SPRING,PAD 92081 92081-1525 2
SPRING,PAD STOPPER 92081A 92081-1661 4
