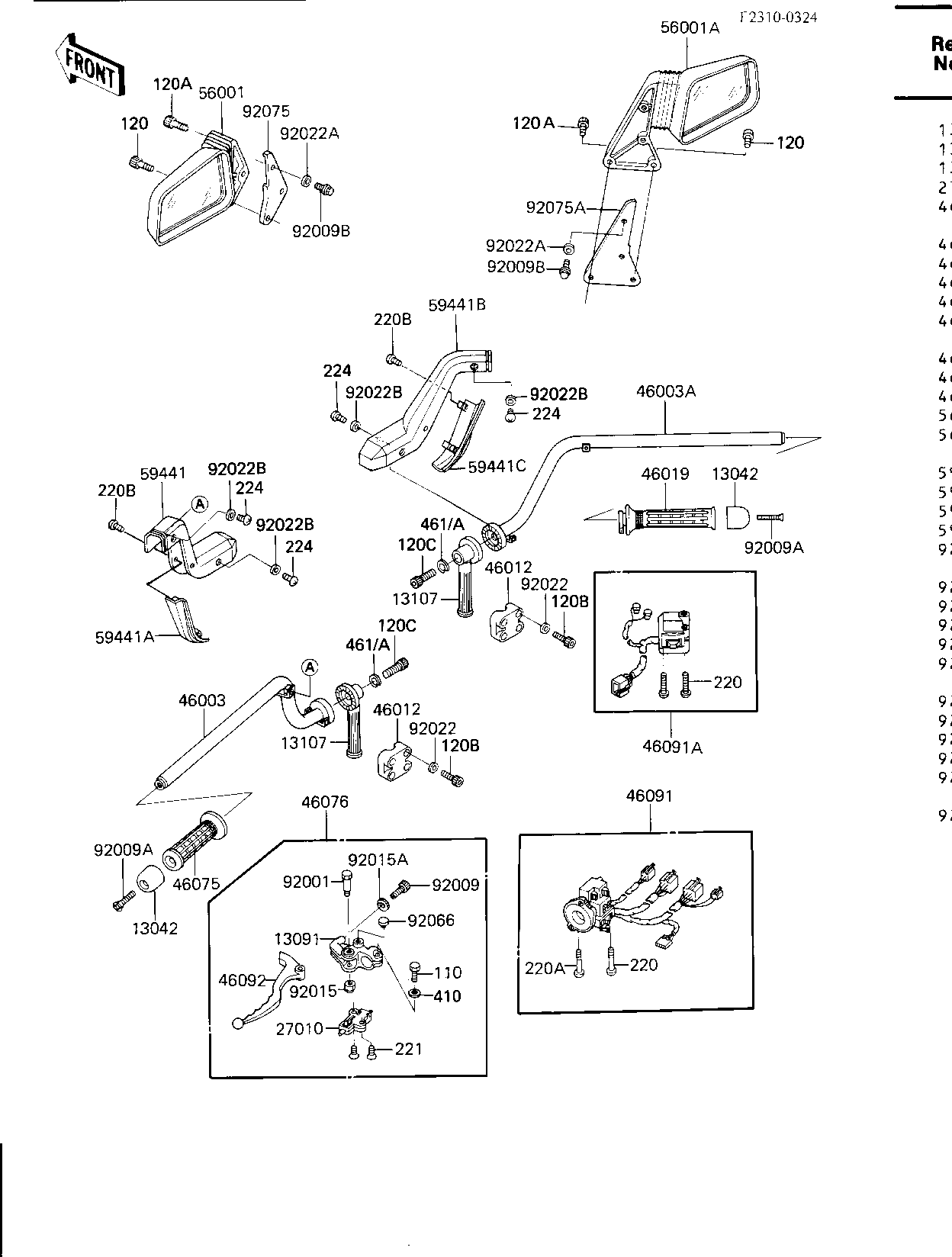

1985 Voyager - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-1051 2
HOLDER,CLUTCH LEVER 13091 13091-1254 1
SHAFT,HANDLE 13107 13107-1040 2
SWITCH,CLUTCH 27010 27010-1094 1
HANDLE,LH 46003 46003-1131 1
HANDLE,RH 46003A 46003-1132 1
HOLDER-HANDLE 46012 46012-1039 2
GRIP-ASSY,THROTTLE 46019 46019-1053 1
GRIP,LH 46075 46075-1036 1
LEVER-ASSY-GRIP 46076 46076-1042 1
HOUSING-ASSY-CONTROL, 46091 46091-1420 1
HOUSING-ASSY-CONTROL, 46091A 46091-1322 1
LEVER-GRIP,CLUTCH 46092 46092-1101 1
MIRROR-ASSY,LH 56001 56001-1138 1
MIRROR-ASSY,RH 56001A 56001-1139 1
COVER-HANDLE,LH,UPP 59441 59441-1013 1
COVER-HANDLE,LH,LWR 59441A 59441-1014 1
COVER-HANDLE,RH,UPP 59441B 59441-1015 1
COVER-HANDLE,RH,LWR 59441C 59441-1017 1
BOLT,CLUTCH LEVER,BLA 92001 92001-1548 1
SCREW,CABLE ADJUST,8 92009 92009-1134 1
SCREW,HUNDLE WEIGHT 92009A 92009-1257 2
SCREW,6X14 92009B 92009-1288 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK 92015A 92015-1197 1
WASHER,9X15.5X2 92022 92022-1401 8
WASHER,MIRROR ASSY 92022A 92022-1505 2
WASHER,3.3X8X0.5 92022B 92022-1516 6
PLUG,9.5X8 92066 92066-1077 1
DAMPER,MIRROR,LH 92075 92075-1457 1
DAMPER,MIRROR,RH 92075A 92075-1458 1
BOLT,6X22,BLACK 110 110C0622 1
BOLT,SOCKET,6X30,BLAC 120 120S0630 4
BOLT-SOCKET,6X35,BLAC 120A 120S0635 2
BOLT-SOCKET,8X30,BLAC 120B 120S0830 8
BOLT-SOCKET,12X35,BLA 120C 120S1235 2
SCREW-PAN-CROS 220 220B0535 3
SCREW PAN HEAD 5X45 220A 220B0545 1
SCREW-PAN-CROS 220B 220C0308 6
SCREW-CSK-CROS 221 221C0316 2
SCREW-PAN-WP-CROS 224 224C0510 6
WASHER PLAIN 410 410F0600 1
WASHER-SPRING,12MM,BL 461A 461K1200 2
