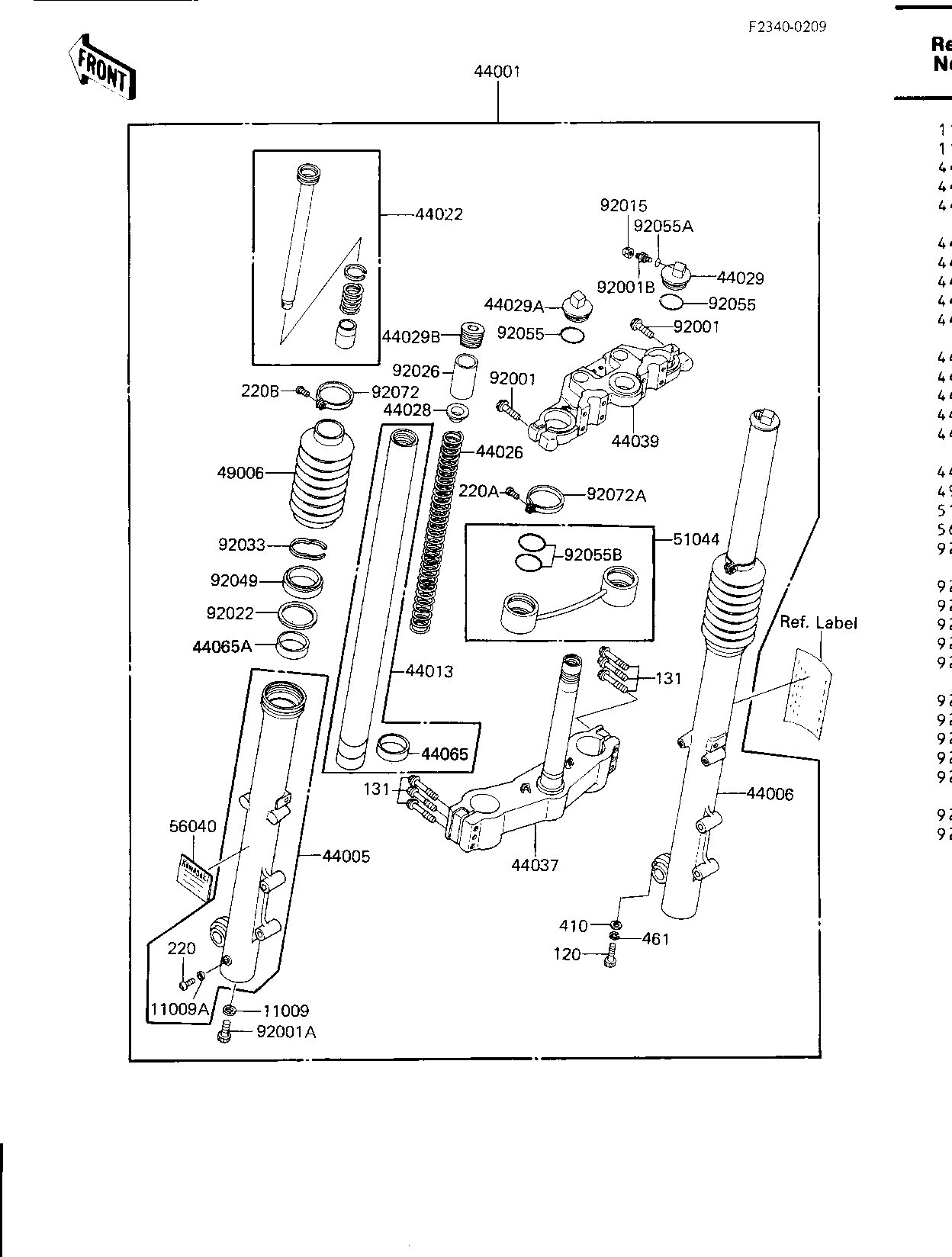

1985 Voyager - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1127 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
FORK-FRONT 44001 44001-1463 1
PIPE-LEFT FORK OUTER 44005 44005-1132 1
PIPE-RIGHT FORK OUTER 44006 44006-1132 1
PIPE-FORK INNER 44013 44013-1206 2
CYLINDER-FORK 44022 44022-1156 2
SPRING-FRONT FORK 44026 44026-1261 2
GUIDE-FORK SPRING 44028 44028-1051 2
SEAT-FORK SPRING,RH 44029 44029-1102 1
SEAT-FORK SPRING,LH 44029A 44029-1103 1
SEAT-FORK SPRING 44029B 44029-1104 2
HOLDER-FORK UNDER 44037 44037-1112 1
HOLDER-FORK UPPER 44039 44039-1076 1
PISTON-FORK 44065 44018-1006 2
BUSHING,FRONT FORK 44065A 44065-1064 2
BOOT,FRONT FORK 49006 49006-1159 2
TUBE-ASSY,FRONT FORK 51044 51044-1025 1
LABEL-WARNING,FRONT F 56040 56040-1110 1
BOLT,10X45 92001 92001-1189 2
BOLT,FORK CYLINDER 92001A 92001-1309 2
BOLT,NIPPLE 92001B 92001-1878 1
NUT,CAP 92015 92015-1326 1
WASHER,FORK OUTER TUB 92022 92022-1298 2
SPACER,FRONT FORK SPR 92026 92026-1222 2
CIRCLIP 92033 92033-1036 2
SEAL-OIL 92049 92049-1164 2
"0" RING,FORK TOP CAP 92055 92055-1050 2
"0" RING,AIR VALVE 92055A 92055-1094 1
"O" RING,HOSE ASSY 92055B 92055-1106 4
BAND,BOOT 92072 92072-1077 2
BAND 92072A 92072-1157 2
BOLT-SOCKET,8X30,BLAC 120 120S0830 1
BOLT,FLANGED,8X45 131 131G0845 6
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW-PAN-CROS 220A 220B0414 2
SCREW PAN HEAD 4X16 220B 220B0416 2
WASHER PLAIN 8MM 410 410B0800 1
WASHER SPRING 8MM 461 461F0800 1
