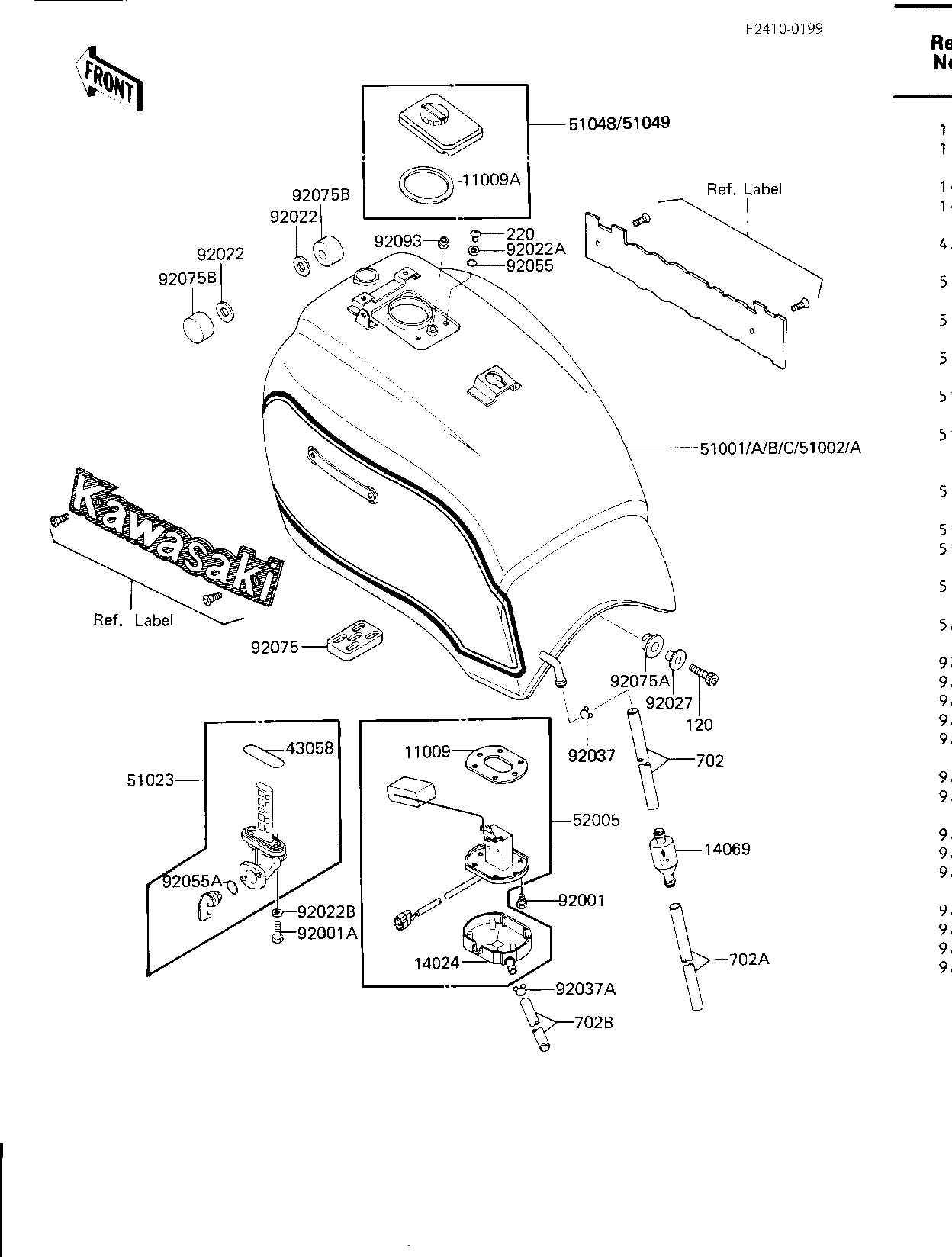

1985 Voyager - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1037 1
GASKET,FUEL TANK CAP 1100 11009-1051 1 CN,US
COVER,FUEL GAUGE 14024 14024-1434 1
BREATER,FUEL TANK 14069 14069-1004 1
"0" RING 43058 51039-010 1
TANK-COMP-FUEL,EBONY 51001B 51001-5460-F7 1 CN,US
TANK-COMP-FUEL,T.EBON 51001C 51001-5461-F7 1 CA
TAP-ASSY 51023 51023-1054 1
CAP-ASSY-TANK 51048 51048-1022 1 CAN,US
CAP,TANK-FUEL 51049 51049-1059 1 CA
GAUGE,FUEL 52005 52005-1053 1
BOLT,FUEL GAUGE FIT 92001 92001-1069 6
BOLT,6X20,FUEL TAP 92001A 92001-1091 2
WASHER-PL-10.5X26X2.3 92022 92022-044 2
WASHER,PLAIN 92022A 92022-1038 2
WASHER-PLAIN 92022B 92022-183 2
COLLAR,FUEL TANK FITT 92027 92027-1134 1
CLAMP FUEL PIPE 92037 92037-010 1 CN,US
CLAMP,CHAIN OILER 92037A 92037-147 1
"0" RING 92055 92055-1023 2
"0" RING 92055A 92055-1036 1
DAMPER,FUEL TANK,REAR 92075 92075-1114 1
DAMPER,FUEL TANK,FITT 92075A 92075-1116 1
DAMPER RUBBER,FL TANK 92075B 92075-125 2
OIL SEAL,FUEL TANK 92093 92093-1030 1
BOLT,SOCKET,8X30 120 120P0830 1
SCREW PAN HEAD 5X10 220 220B0510 2
TUBE-RUBBER 702 702A07120 1 CN,US
TUBE,RUBBER,7X10X400 702A 702A07400 1 CN,US
TUBE-BREATHER (BULK) 702B 702A071000 1 CN,US
