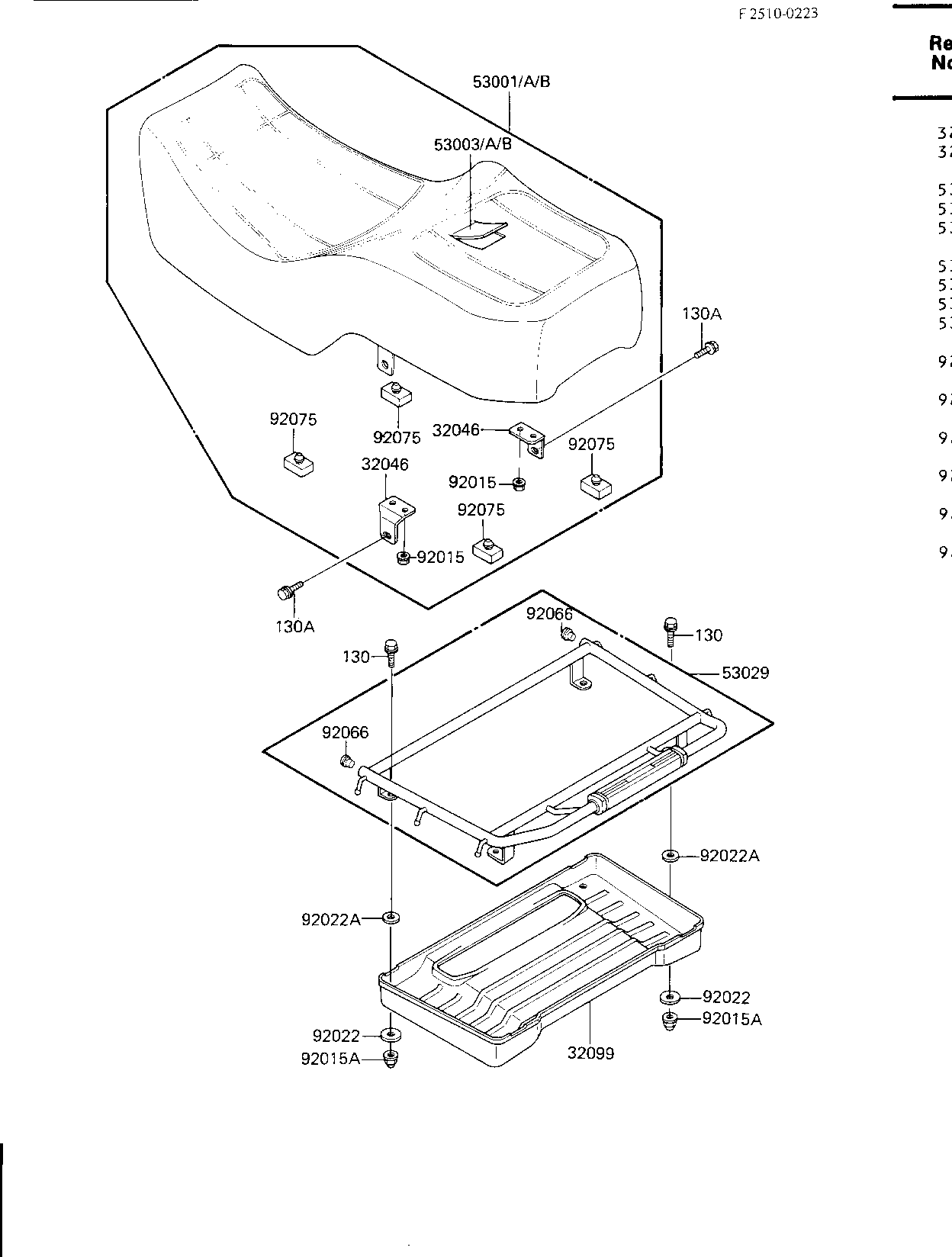

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-SEAT 30246 32046-1203 2
CASE,CARRIER 32099 32099-1035 1 (OPTION)
SEAT-ASSY,DUAL,RED 53001A 53001-1396 1
LEATHER,SEAT,RED 53003A 53003-1123 1
CARRIER,TRUNK 53029 53029-1030 1 (OPTION)
NUT-6MM 92015 92015-1078 4
NUT,LOCK 6MM 92015A 92015-1262 4 (OPTION)
WASHER,7X28X1.6,BLACK 92022 92022-1392 4 (OPTION)
WASHER,RUBBER 92022A 92022-1477 4 (OPTION)
PLUG,CARRIER 92066 92066-1119 2 (OPTION)
DAMPER RUBBER 92075 92075-099 4
BOLT,FLANGED,6X18 130 130B0618 4 (OPTION)
BOLT-FLANGED,8X16 130A 130G0816 2
