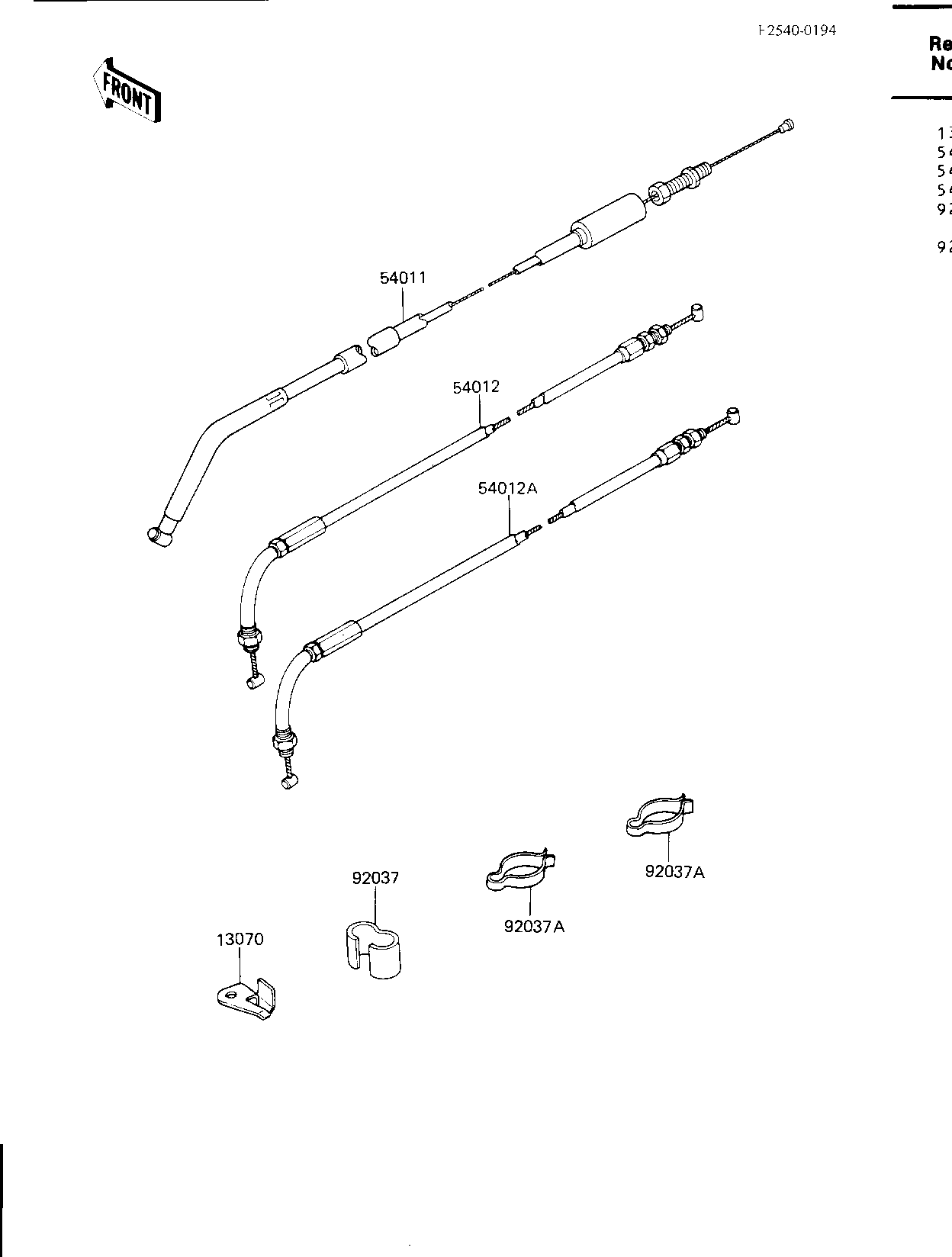

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,CLUTCH CABLE 13070 13070-1013 1
CABLE-CLUTCH 54011 54011-1168 1
CABLE-THROTTLE 54012 54012-1208 1
CABLE-THROTTLE 54012A 54012-1209 1
CLAMP-CABLE 92037 92037-069 1
CLAMP,CABLE 92037A 92037-093 2
