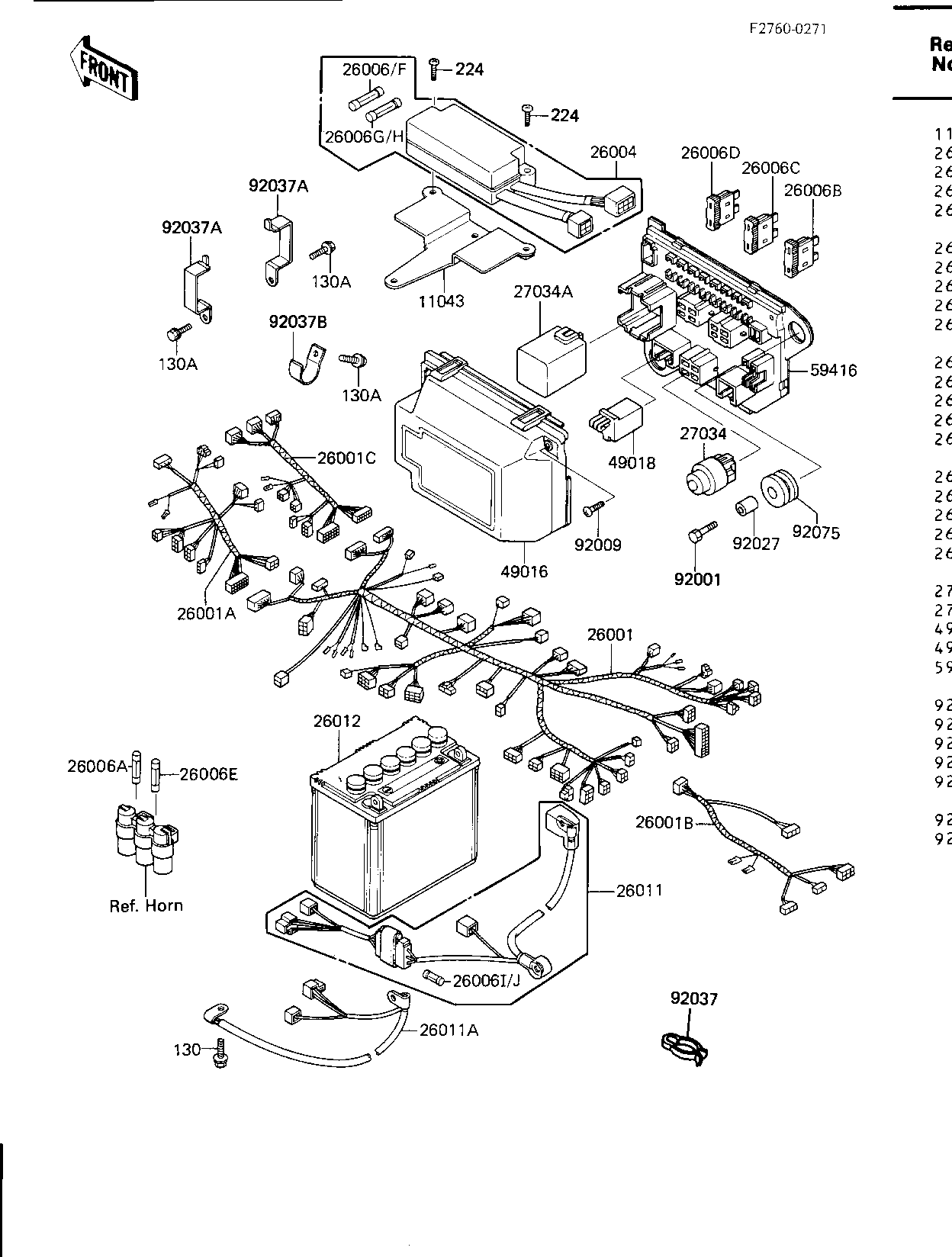

1985 Voyager - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-B,SUB FUSE 11043 11043-1317 1
HARNESS,MAIN 26001 26001-1505 1
HARNESS,SUB 26001A 26001-1506 1
HARNESS,RR 26001B 26001-1553 1
HARNESS,SUB,COWLING R 26001C 26001-1576 1
FUSE-ASSY 26004 26004-1052 1
FUSE-20A 26006 26006-005 3
FUSE,20A 26006A 26006-006 1
FUSE,30A-G 26006B 26006-1006 2
FUSE,10A-R 26006C 26006-1007 7
FUSE,20A 26006D 26006-1051 2
FUSE,3A 26006E 26006-1052 1
FUSE,5A,L=25 26006F 26006-1053 2
FUSE,3A,L=30 26006G 26006-1054 1
FUSE,1A,L=30 26006H 26006-1055 1
FUSE,20A,L=30 26006I 26006-1056 1
FUSE,1A,L=30 26006J 26006-1057 2
WIRE-LEAD,BATTERY 26011 26011-1190 1
WIRE-LEAD,BATTERY GRO 26011A 26011-1191 1
YUA BAT 12N24-3 26012 26012-1079 1
RELAY,STARTER 27034 27034-1006 3
RELAY,FLASHER 27034A 27034-1007 1
COVER-SEAL 49016 49016-1050 1
DIODE 49018 49018-1006 2
CASE-ELECTRIC 59416 59416-1056 1
BOLT,6X22 92001 92002-1262 2
SCREW,TAPPING,4X10 92009 92009-1021 2
COLLAR,REAR FENDER 92027 92027-162 2
CLAMP,CABLE 92037 92037-093 1
CLAMP,HARNESS 92037A 92037-1469 2
CLAMP,HARNESS 92037B 92037-1492 1
DAMPER 92075 92075-1562 2
BOLT,FLANGED,6X10 130 130B0610 1
BOLT-FLANGED,6X10,BLA 130A 130C0610 3
SCREW-PAN-WP-CROS 224 224C0520 2
