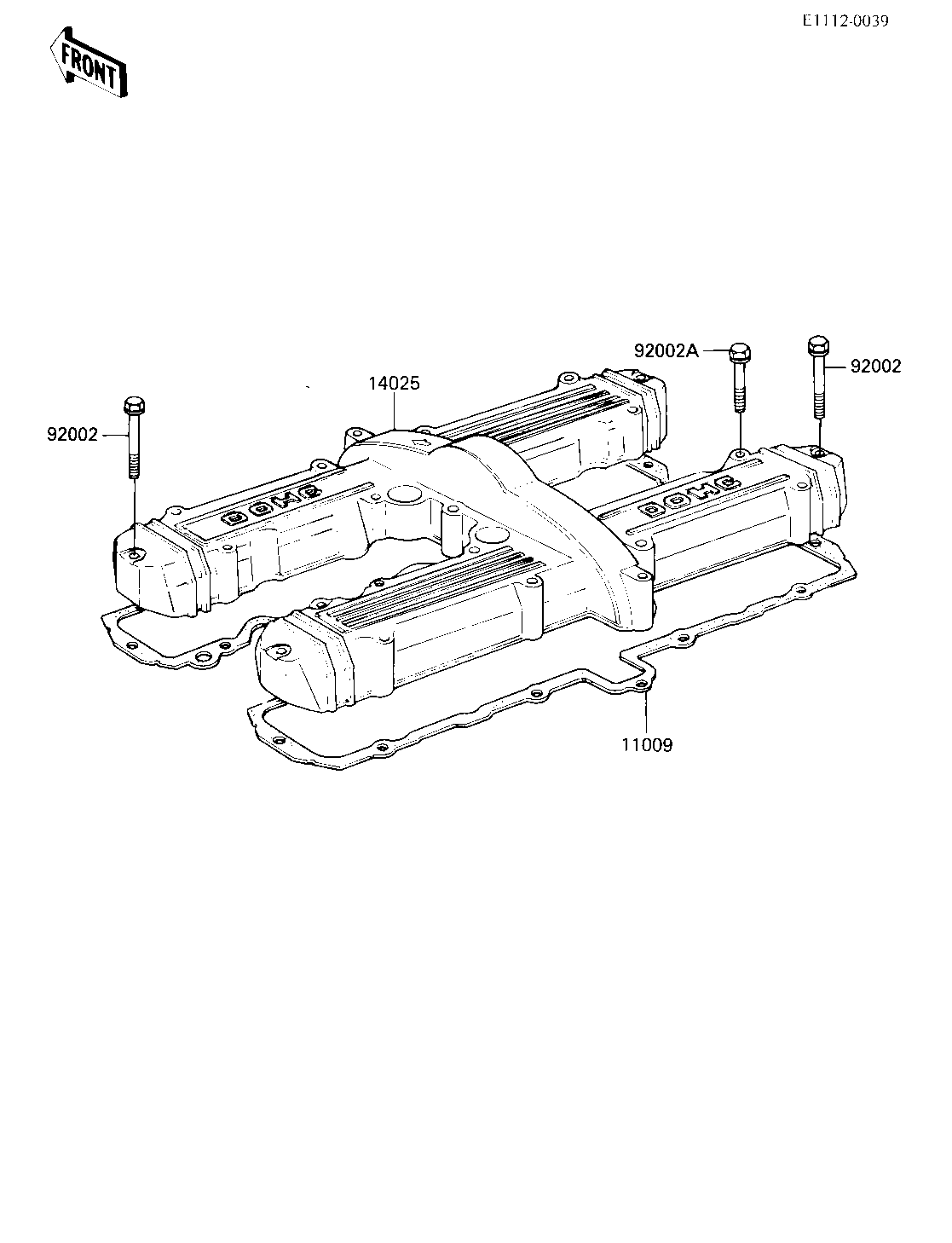

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11009-1274 1
COVER,CYLINDER HEAD,B 14025 14025-1433 1
BOLT,6X45 92002 92002-1069 4
BOLT,6X40 92002A 92002-1080 20
