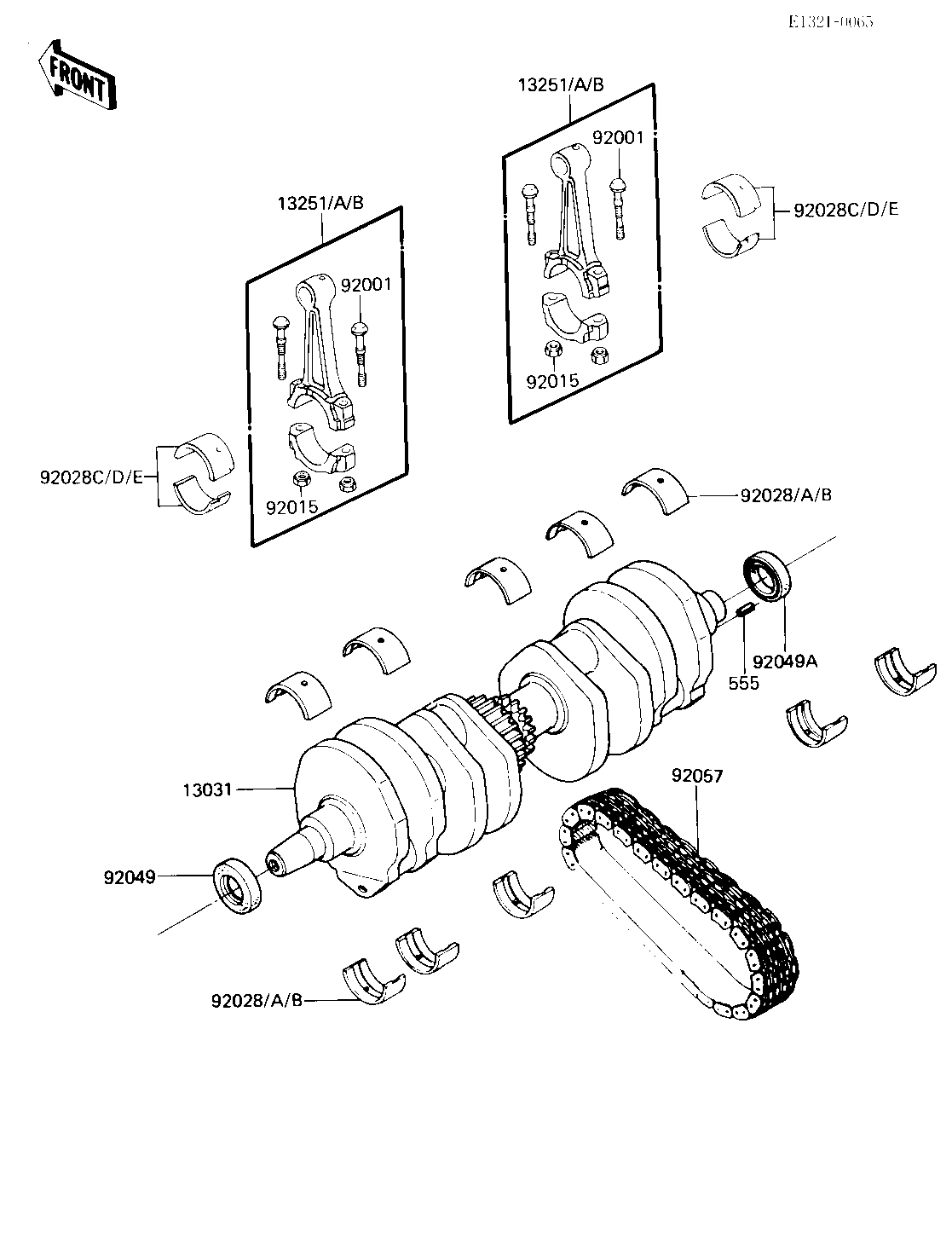

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1314 1
ROD-ASSY-CONNECTING,K 13251 13251-1054-KK 4
ROD-ASSY-CONNECTING,K 13251A 13251-1054-KK 4
ROD-ASSY-CONNECTING,K 13251B 13251-1054-KK 4
BOLT,CONNECTING ROD,8 92001 92001-1887 8
NUT,FLANGED,8MM 92015 92015-1311 8
BUSHING,CRANKSHAFT 92028 92028-1100 AR
BUSHING,CRANKSHAFT 92028A 92028-1101 AR
BUSHING,CRANKSHAFT 92028B 92028-1102 AR
BUSHING,CONNECTING RO 92028C 92028-1203 AR
BUSHING,CONNECTING RO 92028D 92028-1204 AR
BUSHING,CONNECTING RO 92028E 92028-1205 AR
SEAL-OIL,HSCY25X39X7 92049 92049-1090 1
OIL SEAL,HSCY25397 92049A 92050-081 1
CHAIN,63-139X5OL(TSUB 92057 92057-1151 1
PIN-SPRING,4X8 555 555A0408 1
