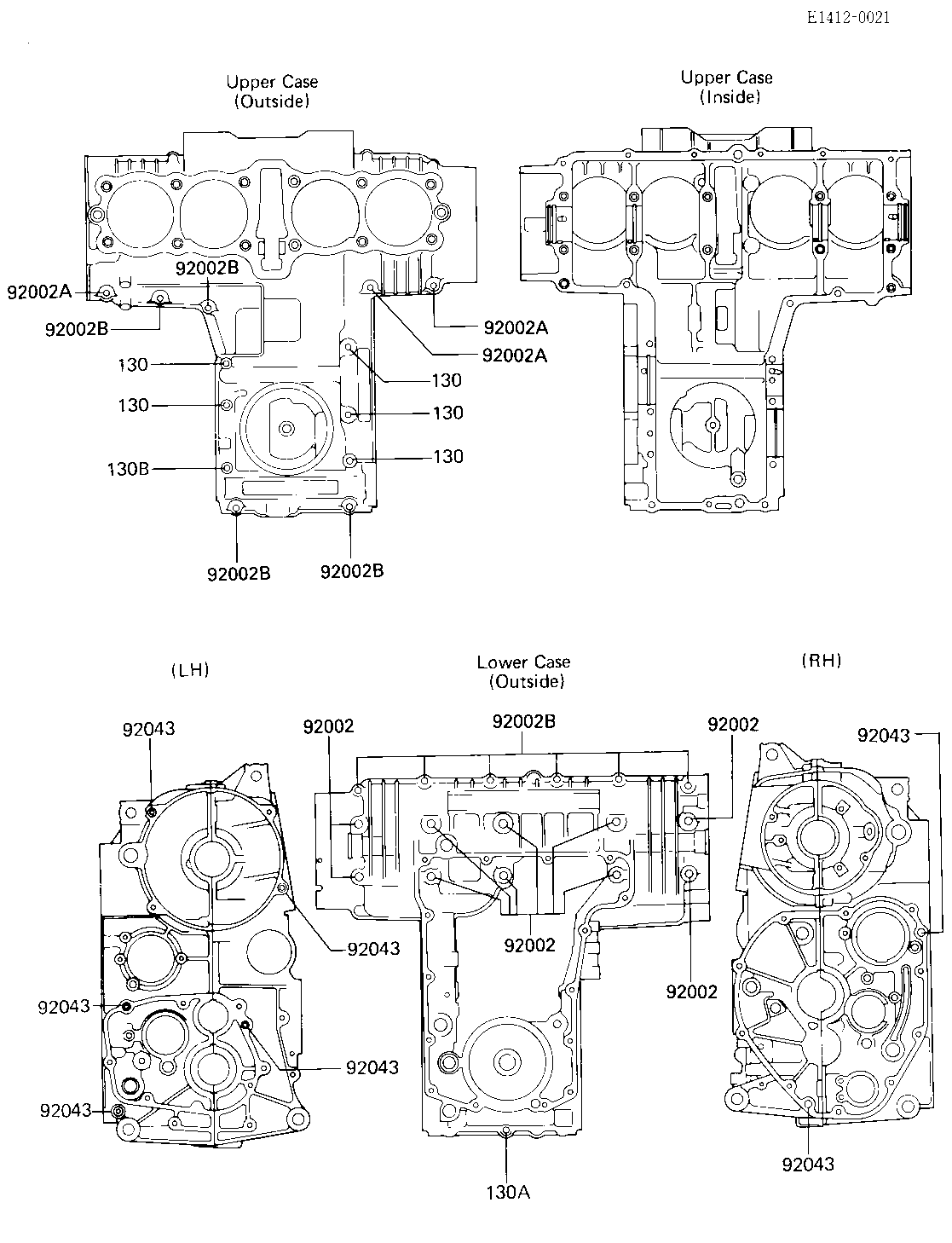

1985 GPz 750 Turbo - CRANKCASE BOLT & STUD PATTERN

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,8X95 92002 92002-1077 10
BOLT,6X50 92002A 92002-1079 1
BOLT,6X40 92002B 92002-1080 9
PIN-DOWEL 92043 92042-007 7
BOLT-FLANGED 130 130T06100 5
BOLT-FLANGED 130A 130T06105 1
BOLT-FLANGED 130B 130T06115 1
