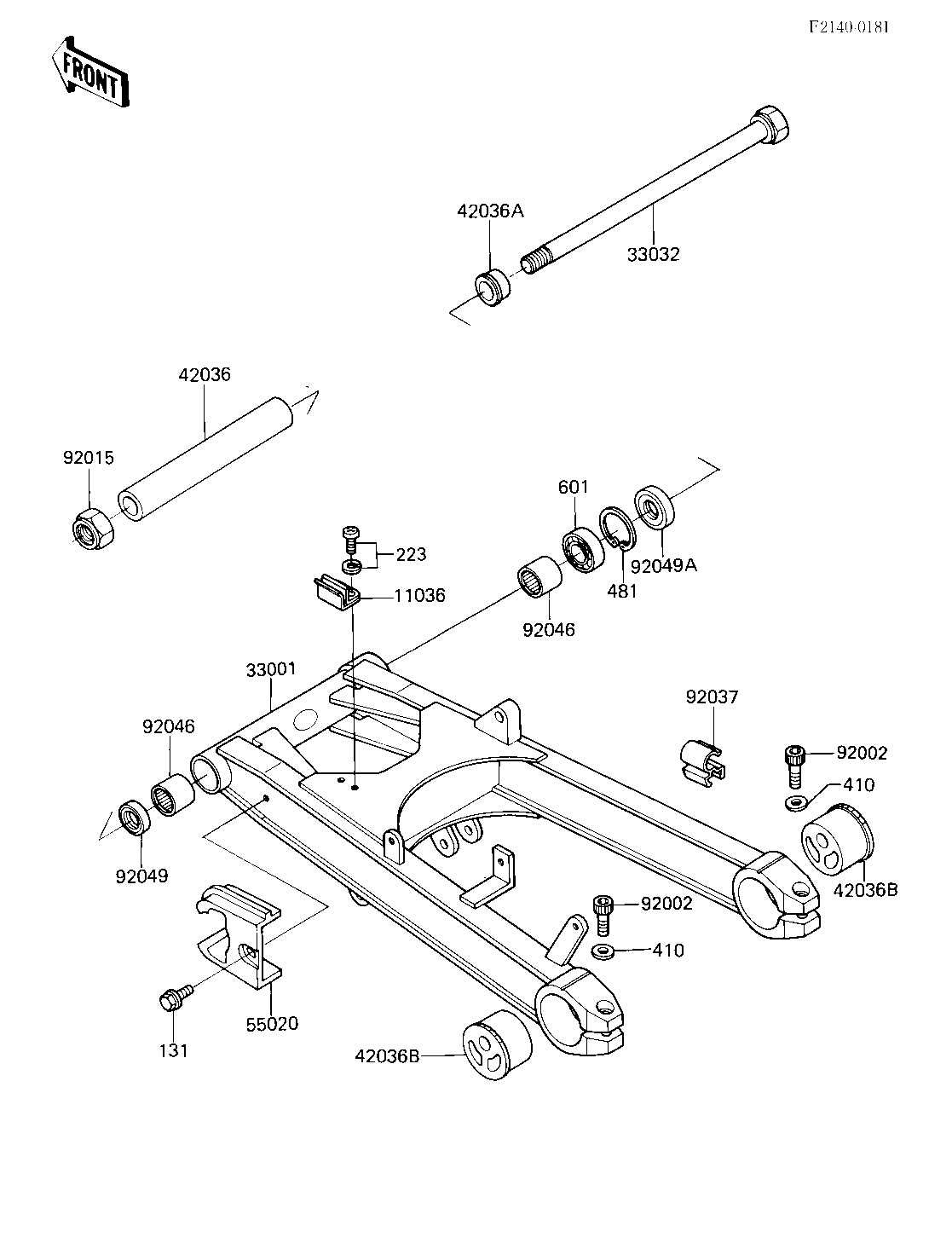

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,CAIN CASE 11036 11036-1868 1
ARM-COMP-SWING,G.SILV 33001 33001-1204-F2 1
SHAFT-SWING ARM 33032 33032-1040 1
SLEEVE,17.1X25X212 42036 42036-1080 1
SLEEVE,17.1X24X11.5 42036A 42036-1081 1
SLEEVE,AXLE,RR 42036B 42036-1082 2
GUARD,CHAIN 55020 55020-1153 1
BOLT 92002 92002-1452 2
NUT,LOCK,16MM,BLACK 92015 92015-1207 1
CLAMP,BRAKE HOSE 92037 92037-1392 2
BEARING-NEEDLE 92046 92046-1035 2
SEAL-OIL 92049 92049-1060 1
SEAL-OIL,AG1258A0 92049A 92049-1110 1
BOLT-FLANGED 131 131G0516 1
SCREW-PAN-WS-CROS 223 223X0508 2
W-PLAIN-S 410 410E1000 2
RING, SNAP,43.5M/M 481 92033-1040 1
BEARING BALL #6203 601 601A6203 1
