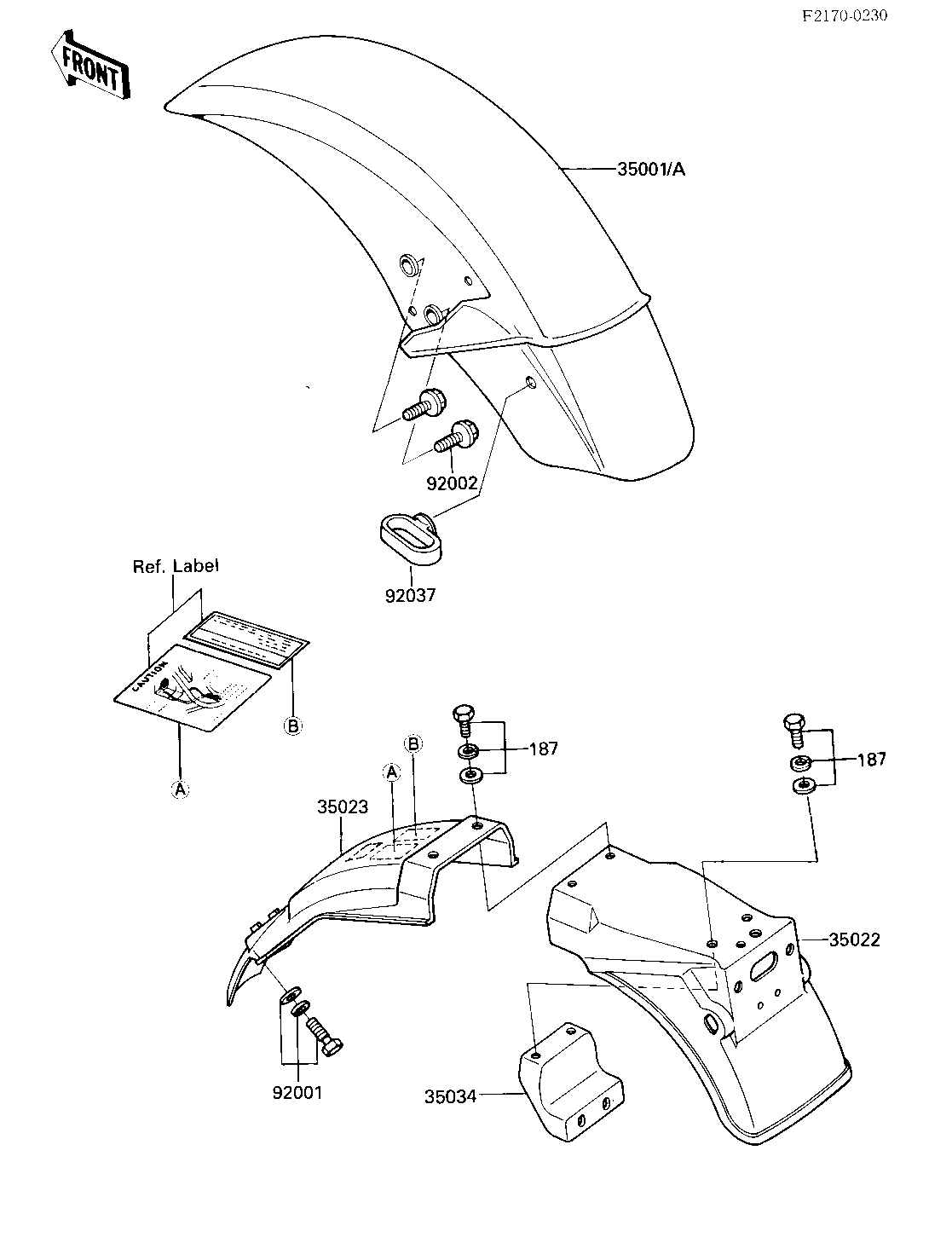

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-ASSY-FRONT,F.R 35001A 35001-1112-B1 1
FENDER-COMP-REAR,RR,B 35022 35022-1115-6Z 1
FENDER-REAR,FR 35023 35023-1106 1
REINFORCE,FENDER,RR 35034 35034-1091 1
BOLT,6X16 92001 92001-1851 2
BOLT,8X20 92002 92002-1134 4
CLAMP,CABLE 92037 92037-1459 1
BOLT-UPSET-WSP 187 187B0620 4
