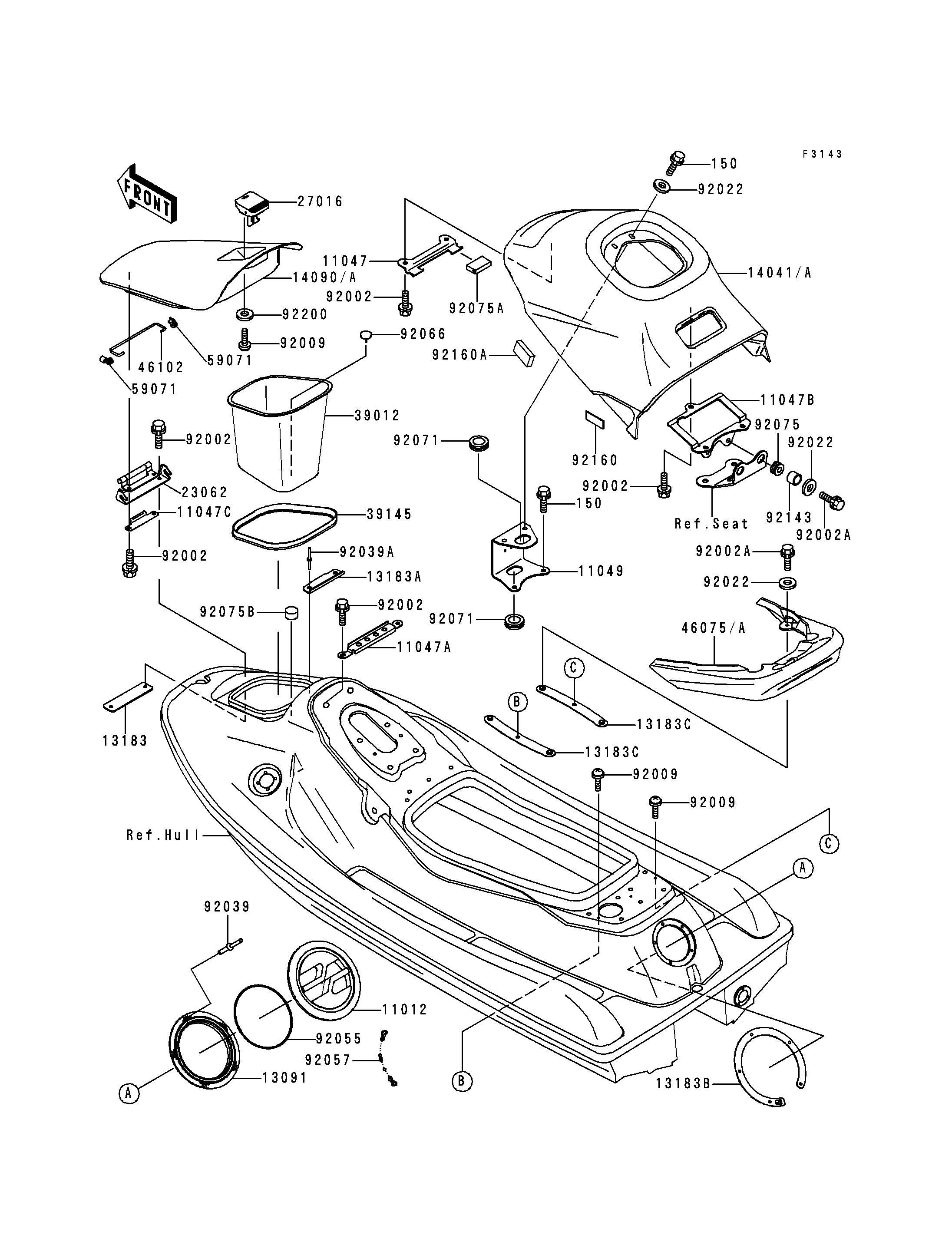

1998 Xi Sport - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11047
11047
11047A
11047A
11047B
11047B
11047C
11047C
11049
11049
13091
13091
13183
13183
13183A
13183A
13183B
13183B
13183C
13183C
13183C
13183C
14041
14041
14090A
14090A
23062
23062
27016
27016
39012
39012
39145
39145
46075A
46075A
46102
46102
59071
59071
59071
59071
92002
92002
92002
92002
92002
92002
92002
92002
92002
92002
92002A
92002A
92002A
92002A
92009
92009
92009
92009
92009
92009
92022
92022
92022
92022
92022
92022
92039
92039
92039A
92039A
92055
92055
92057
92057
92066
92066
92071
92071
92071
92071
92075
92075
92075A
92075A
92075B
92075B
92143
92143
92160
92160
92160A
92160A
150
150
150
150
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STORAGE,J.WHITE 11012 11012-3758-8U 1
BRACKET,HANDLE POLE COVER,FR 11047 11047-3763 1
BRACKET,HANDLE POLE COVER,FR 11047A 11047-3764 1
BRACKET,HANDLE POLE COVER,RR 11047B 11047-3773 1
BRACKET,ROD HOLDER 11047C 11047-3779 1
BRACKET,HANDLE POLE COVER,CNT 11049 11049-3732 1
HOLDER,STORAGE,J.WHITE 13091 13091-3766-8U 1
PLATE,HINGE BRACKET 13183 13183-3781 1
PLATE,HOOK 13183A 13183-3801 1
PLATE,STORAGE 13183B 13183-3804 1
PLATE,TAIL GRIP 13183C 13183-3805 2
COVER-COMP,HANDLE POLE,EBONY 14041 14041-3702-H8 1
COVER,HATCH,J.WHITE 14090A 14090-3711-8C 1
BRACKET-COMP,HATCH COVER 23062 23062-3705 1
LOCK-ASSY,HATCH COVER 27016 27016-3721 1
CASE-STORAGE 39012 39012-3712 1
TRIM-SEAL,STORAGE CASE 39145 39145-3734 1
GRIP,TAIL,VIOLET 46075A 46075-3724-RE 1
ROD 46102 46102-3715 1
JOINT 59071 59071-1125 2
BOLT,6X16 92002 92002-3728 11
BOLT,6X20 92002A 92002-3755 6
SCREW,5X16 92009 92009-3789 4
WASHER,6.5X20X1.5 92022 92022-3710 8
RIVET 92039 92039-3714 5
RIVET 92039A 92039-3753 2
RING-O,ID=131.6MM 92055 92055-3732 1
CHAIN,COVER,L=100 92057 92057-3704 1
PLUG 92066 92066-3752 1
GROMMET 92071 92071-3704 2
DAMPER 92075 92075-105 2
DAMPER 92075A 92075-1446 2
DAMPER 92075B 92075-3760 2
COLLAR,7.5X10.5X7.2 92143 92143-3730 2
DAMPER 92160 92160-3792 2
DAMPER 92160A 92160-3808 2
BOLT-WS,6X14 150 150R0614 4
WASHER,5.9X16X1.5 92200 92200-3714 2
