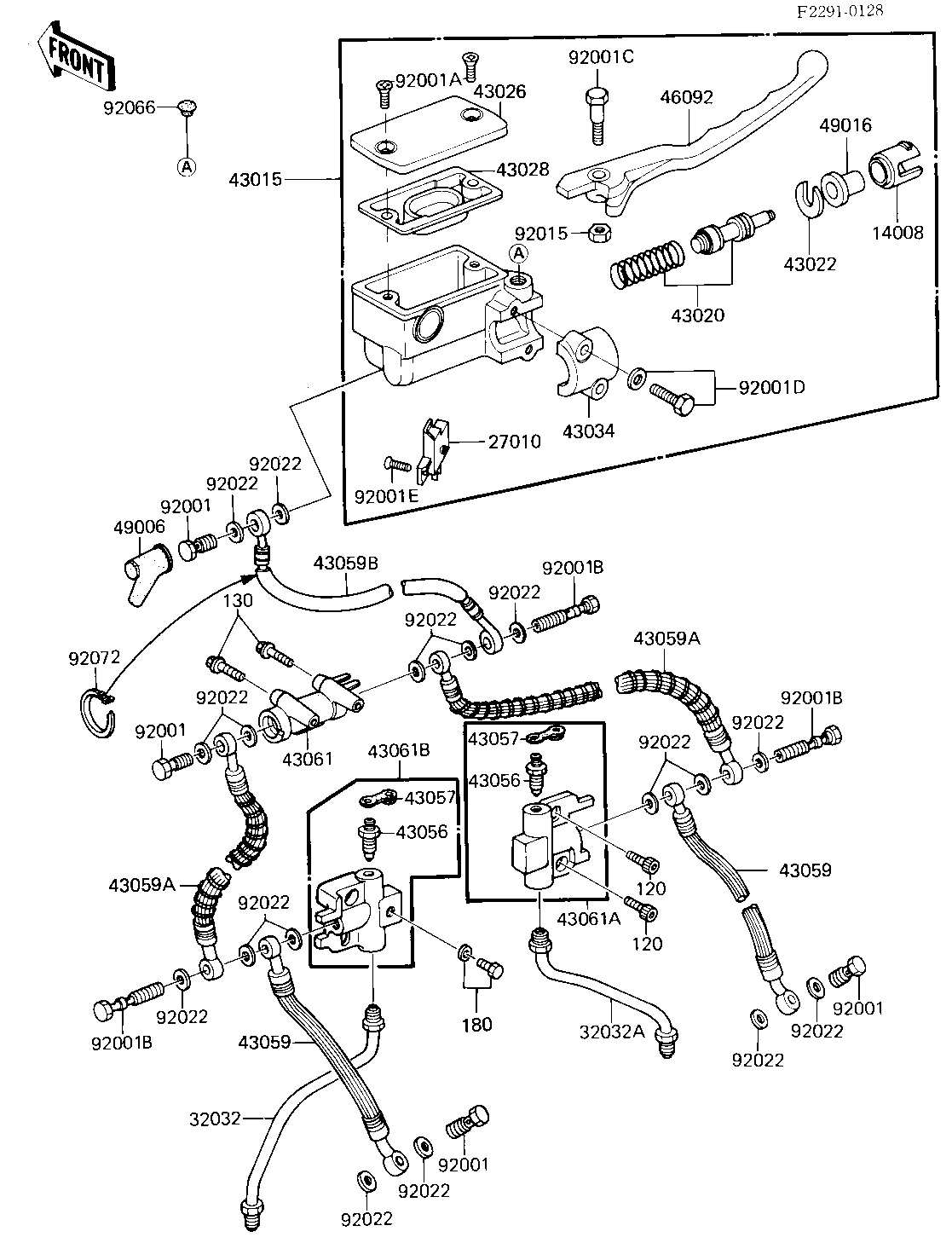

1985 GPz 750 Turbo - FRONT MASTER CYLINDER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LINER,PISTON 14008 14008-1035 1
SWITCH,BRAKE 27010 27010-1056 1
PIPE,BRAKE,FR,LH 32032 32033-1061 1
PIPE,BRAKE,FR,RH 32032A 32033-1062 1
CYLINDER-ASSY-MASTER 43015 43015-1085 1
PISTON-COMP-BRAKE 43020 43020-1079 1
STOPPER-BRAKE,PISTON 43022 43022-1009 1
CAP-BRAKE,FRONT 43026 43026-1017 1
DIAPHRAGM,MASTER CYL1 43028 43028-1029 1
HOLDER-BRAKE,MASTER C 43034 43034-1013 1
BREATHER-BRAKE 43056 43056-1051 2
CAP-BREATHER 43057 43057-1001 2
HOSE-BRAKE,FR,L=181 43059 43059-1164 2
HOSE-BRAKE,L=325 43059A 43059-1167 2
HOSE-BRAKE,FR,L=360 43059B 43059-1274 1
JOINT BRAKE 43061 43061-1004 1
JOINT-BRAKE,FR,RH 43061A 43061-1005 1
JOINT-BRAKE,FR,LH 43061B 43061-1006 1
LEVER-GRIP,MASTER CYL 46092 46092-1026 1
BOOT,DUST 49006 49006-1041 1
COVER-SEAL,BRK PISTON 49016 49016-1041 1
BOLT,OIL,L=23 92001 92002-1888 4
SCREW,COUNTERSUNK HED 92001A 92001-1055 2
BOLT 92001B 92002-1909 3
BOLT,6X37.3,BLACK 92001C 92001-1512 1
BOLT,W/WASHER,6X25,BL 92001D 92001-1513 2
SCREW-COUNTERSUNK 92001E 92001-1532 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
WASHER-OIL BOLT 92022 43067-001 17
PLUG,9.5X8 92066 92066-1077 1
BAND,WIRING HARNESS 92072 92072-056 1
BOLT-SOCKET,6X14,BLAC 120 120S0614 4
BOLT-FLANGED,6X60 130 130G0660 2
BOLT-UPSET-WS 180 180C0612 1
