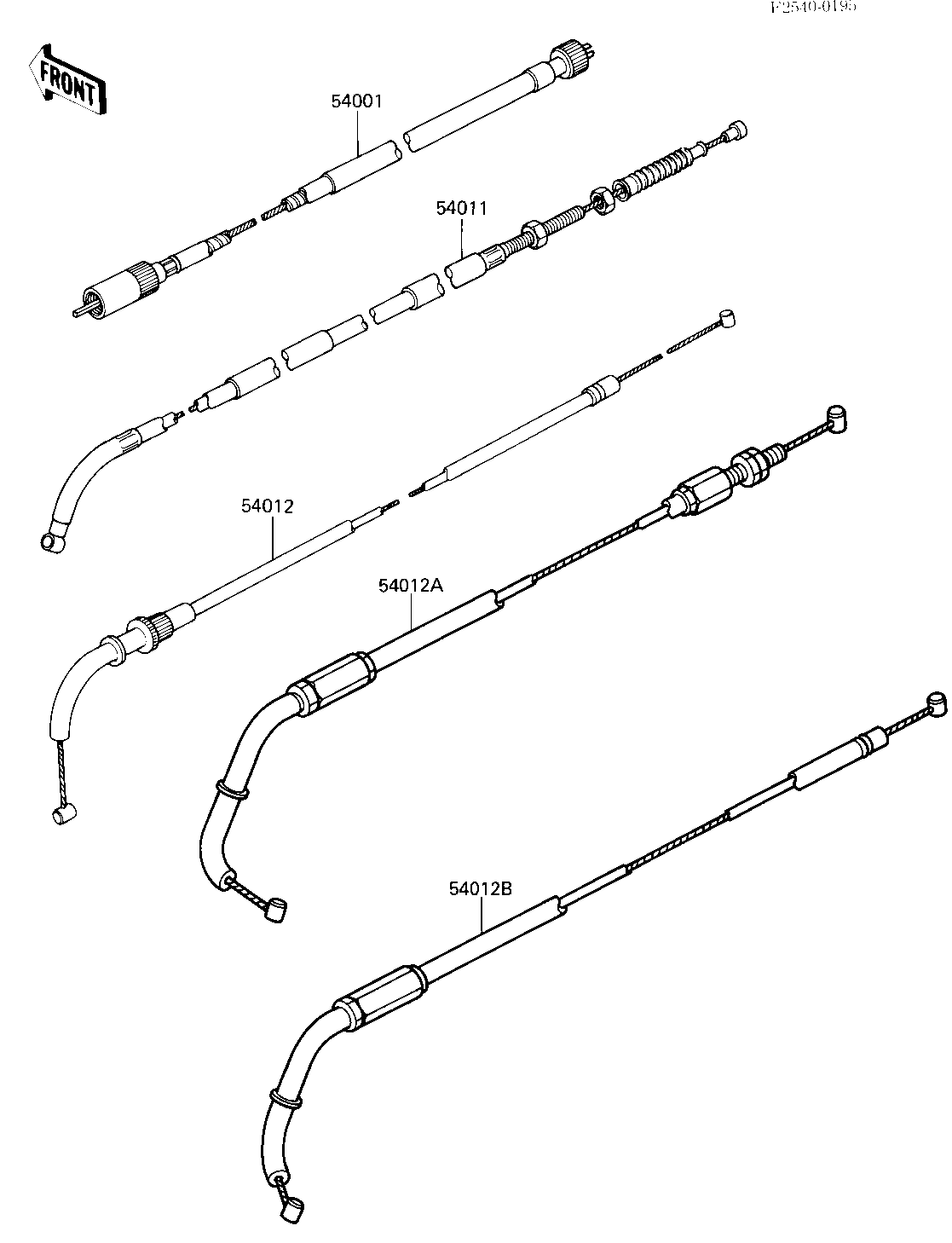

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-SPEEDOMETER 54001 54001-1102 1
CABLE-CLUTCH 54011 54011-1208 1
CABLE-THROTTLE,OPEN 54012A 54012-1231 1
CABLE-THROTTLE,CLOSIN 54012B 54012-1232 1
