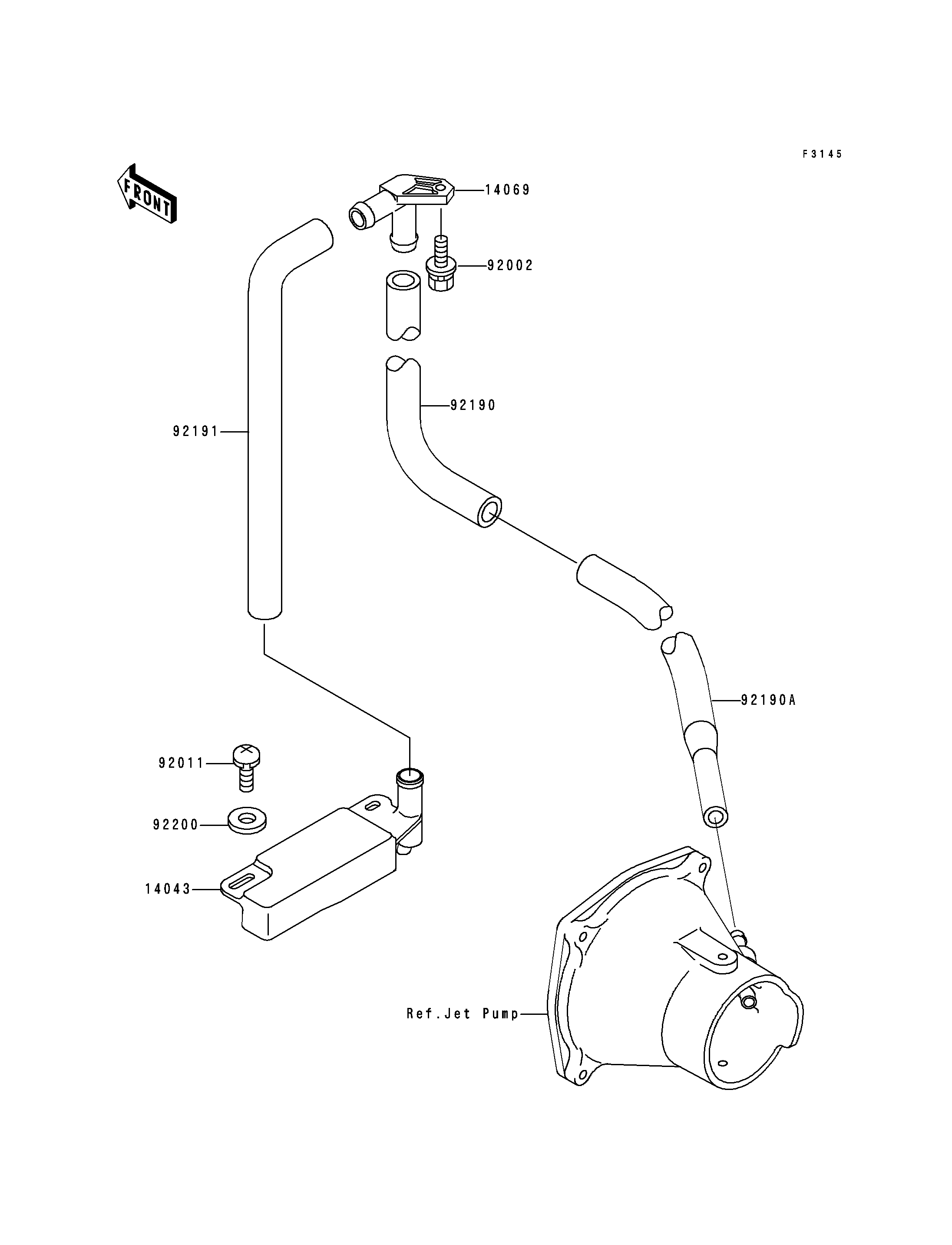

14043
14069
92002
92011
92190
92190A
92191
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER 14043 14043-3708 1
BREATHER 14069 14069-3708 1
BOLT,6X20 92002 92002-3755 1
SCREW,TAPPING 92011 92011-561 2
TUBE,BREATHER-BULKHEAD 92190 92190-3772 1
TUBE,L=190 92190A 92190-3821 1
TUBE,FILTER-BREATHER 92191 92191-3781 1
WASHER,5.9X16X1.5 92200 92200-3714 2
