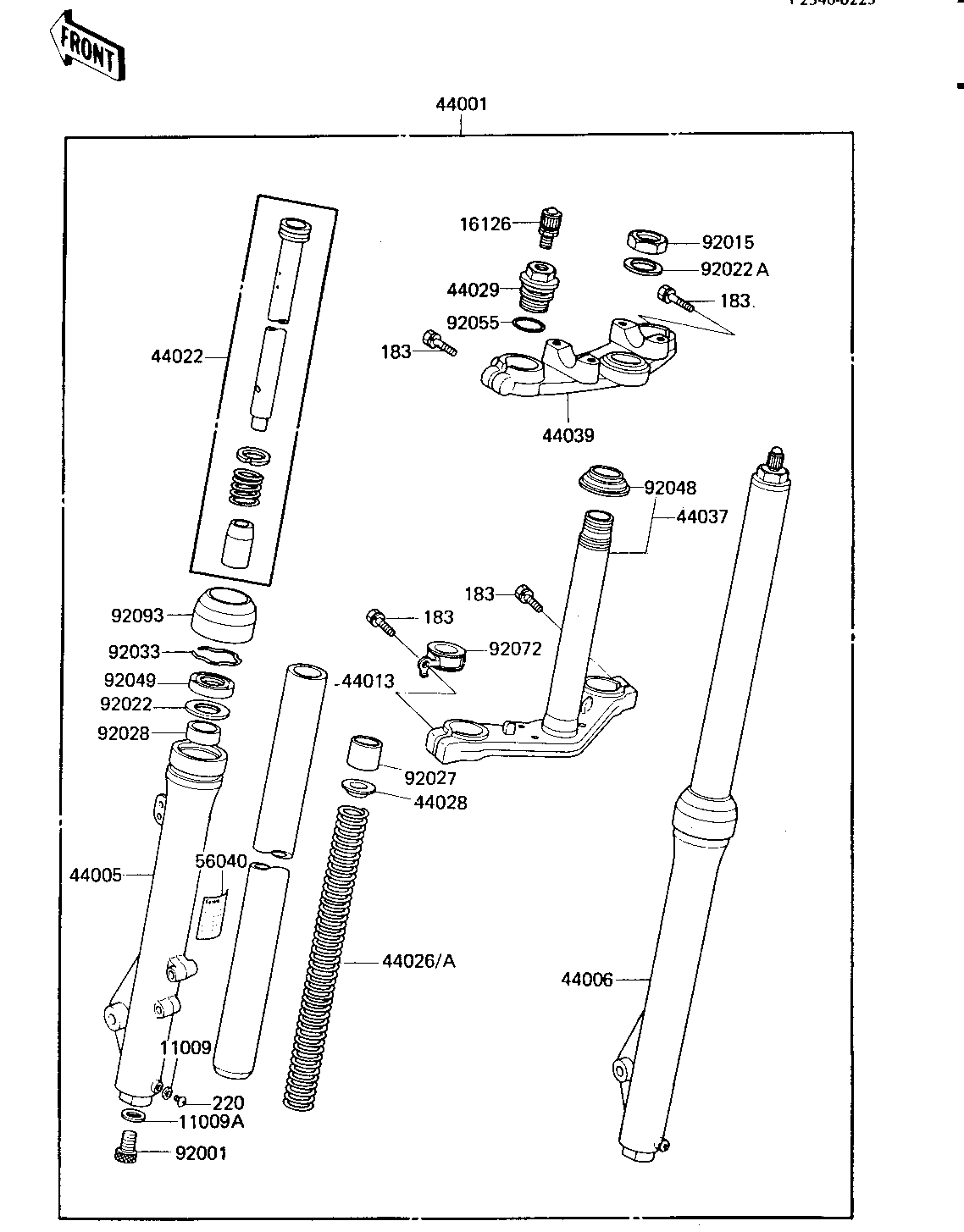

1985 KX80 - FRONT FORK ('84 KX80-E2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
VALVE,AIR FRONT FORK 16126 16126-1048 2
FORK-FRONT 44001 44001-1532 1
PIPE LEFT FORK OUTER 44005 44005-1208 1
PIPE RIGHT FORK OUTER 44006 44006-1208 1
PIPE-FORK INNER 44013 44013-1225 2
CYLINDER-FORK 44022 44022-1160 2
SPRING-FRONT FORK,K=0 44026 44026-1266 2
SPRING-FRONT FORK,K=0 44026A 44026-1267 2 (OPTION)
GUIDE,FORK SPRING 44028 44028-033 2
SEAT-FORK SPRING 44029 44029-1105 2
HOLDER-FORK UNDER 44037 44037-1162 1
HOLDER-FORK UPPER 44039 44039-1108 1
LABEL-WARNING,FRONT F 56040 56040-1115 1
BOLT-FORK CYLINDER 92001 44041-040 2
NUT,FORK TOP,22MM 92015 92015-1361 1
WASHER,FORK 92022 92022-1527 2
WASHER,FORK TOP 92022A 92022-1528 1
COLLAR,L=25 92027 92027-1759 2
BUSHING,FORK 92028 92028-1298 2
RING-SNAP,FORK 92033 92033-1165 2
CONE STERNG BERG LOW 92048 92047-010 1
SEAL-OIL,FORK 92049 92049-1179 2
RING-O,FORK SPRING SE 92055 92055-1135 2
CLAMP,CABLE 92072 92072-1027 1
SEAL,FORK 92093 92093-1165 2
BOLT-UPSET-WS-SMALL 183 183G0835 6
SCREW PAN HEAD 4X8 220 220B0408 2
