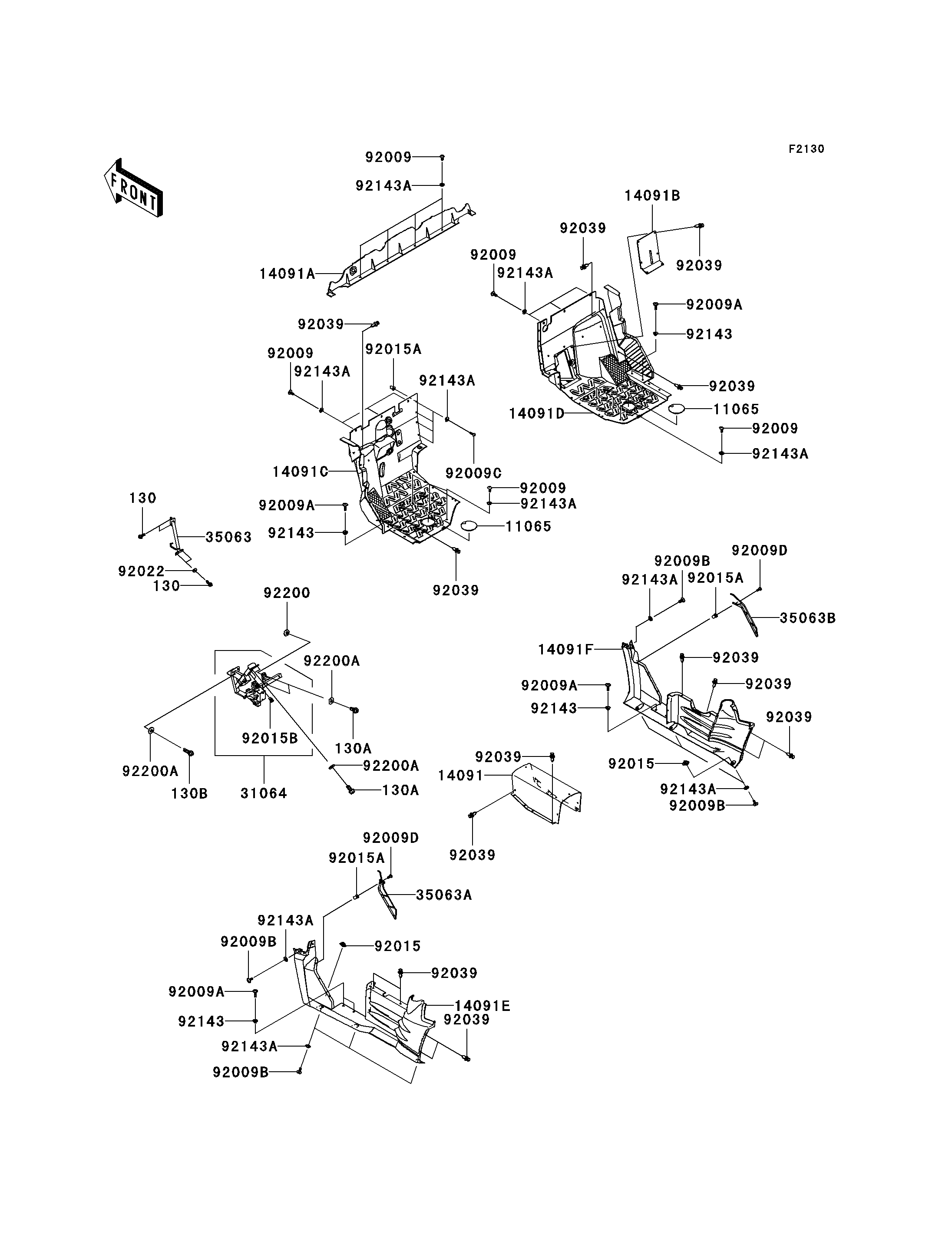

2008 Teryx® 750 4x4 NRA OUTDOORS™ - Frame Fittings(Front)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
130B
11065
11065
14091
14091A
14091B
14091C
14091D
14091E
14091F
31064
35063
35063A
35063B
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009C
92009D
92009D
92015
92015
92015A
92015A
92015A
92015B
92022
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92200
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130BB0618 4
BOLT-FLANGED,10X20 130A 130CA1020 4
BOLT-FLANGED,10X30 130B 130CB1030 2
CAP 11065 11065-0267 2
COVER,CENTER,F.BLACK 14091 14091-0696-6Z 1
COVER 14091A 14091-0699 1
COVER,F.BLACK 14091B 14091-0731-6Z 1
COVER,FLOOR,LH 14091C 14091-1639 1
COVER,FLOOR,RH 14091D 14091-1640 1
COVER,SIDE,LH,F.BLACK 14091E 14091-1686-6Z 1
COVER,SIDE,RH,F.BLACK 14091F 14091-1687-6Z 1
PIPE-COMP 31064 31064-0138 1
STAY,MASTER CYLINDER 35063 35063-0518 1
STAY,SIDE COVER,LH 35063A 35063-0544 1
STAY,SIDE COVER,RH 35063B 35063-0545 1
SCREW,TAPPING,6X16 92009 92009-1166 16
SCREW,6X22,BLACK 92009A 92009-1256 8
SCREW,6X16 92009B 92009-1621 8
SCREW,5X18 92009C 92009-1655 4
SCREW,5X20 92009D 92009-1934 6
NUT 92015 92015-1487 6
NUT,WELL,5MM 92015A 92015-1757 10
NUT,POP,6MM,L=15 92015B 92015-1791 2
WASHER,6.2X15.0X1.2 92022 92022-2373 2
RIVET 92039 92039-1229 32
COLLAR 92143 92143-1057 8
COLLAR 92143A 92143-1087 28
WASHER,10X22X3.2 92200 92200-0121 2
WASHER,10.3X23X1.6 92200A 92200-2009 6
