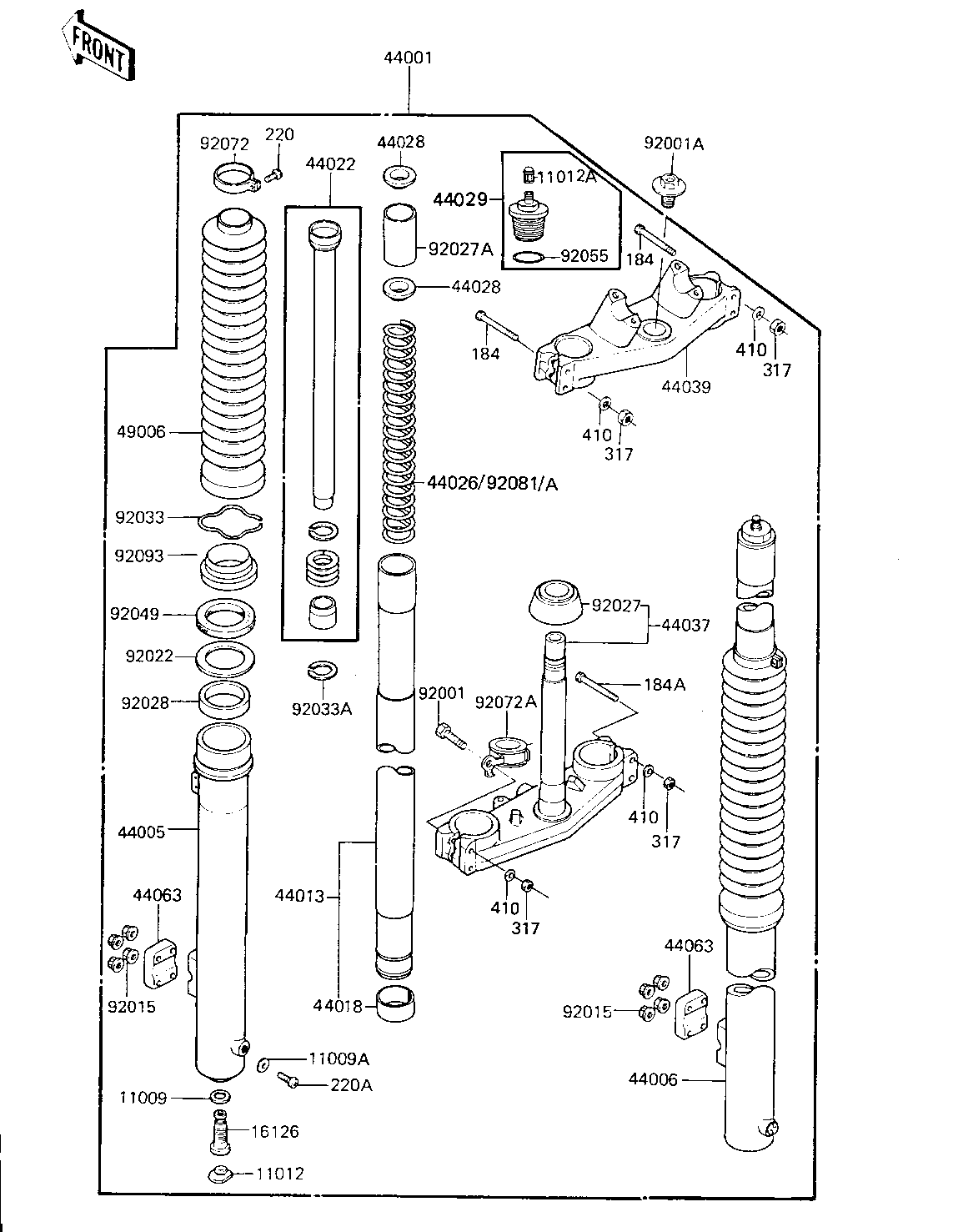

1984 KX125 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1324 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
CAP,FORK CYLINDER 11012 11012-1381 2
CAP,VALVE AIR 11012A 11012-1391 2
VALVE,FORK CYLINDER 16126 16126-1107 2
FORK-FRONT 44001 44001-1518 1
PIPE-LEFT FORK OUTER 44005 44005-1212 1
PIPE-RIGHT FORK OUTER 44006 44006-1207 1
PIPE-FORK INNER 44013 44013-1212 2
PISTON-FORK 44018 44018-1005 2
CYLINDER-FORK 44022 44022-1170 2
SPRING-FRONT FORK 44026 44026-1169 2
GUIDE-FORK SPRING 44028 44028-1010 4
SEAT-FORK SPRING 44029 44029-1107 2
HOLDER-FORK UNDER 44037 44037-1163 1
HOLDER-FORK UPPER 44039 44039-1060 1
HOLDER-FRONT AXLE 44063 44063-1008 2
BOOT 49006 49006-1081 2
BOLT FLANGED 8X55 92001 92001-1398 2
BOLT 92001A 92001-1520 1
NUT-6MM 92015 92015-1078 8
WASHER 92022 92022-1299 2
COLLAR,FRONT FORK 92027 92027-1427 1
COLLAR,FORK SPRING 92027A 92027-1764 2
BUSHING 92028 92028-1145 2
RING-SNAP 92033 92033-1077 2
RING-SNAP 92033A 92033-1167 2
SEAL-OIL,FORK OUTER T 92049 92049-1295 2
RING-O 92055 92055-1123 2
BAND 92072 92072-1078 2
BAND 92072A 92072-1166 1
SPRING,FRONT FORK,K=0 92081 92081-1556 2 (OPTION)
SPRING,FRONT FORK,K=0 92081A 92081-1557 2 (OPTION)
SEAL,FORK DUST 92093 92093-1086 2
BOLT-UPSET-WP-SMALL 184 184G0850 4
BOLT-UPSET-WP-SMALL 184A 184G0855 2
SCREW-PAN-CROS 220 220B0316 2
SCREW PAN HEAD 4X8 220A 220B0408 2
NUT,8MM 317 317G0800 8
WASHER PLAIN 8MM 410 410B0800 8
