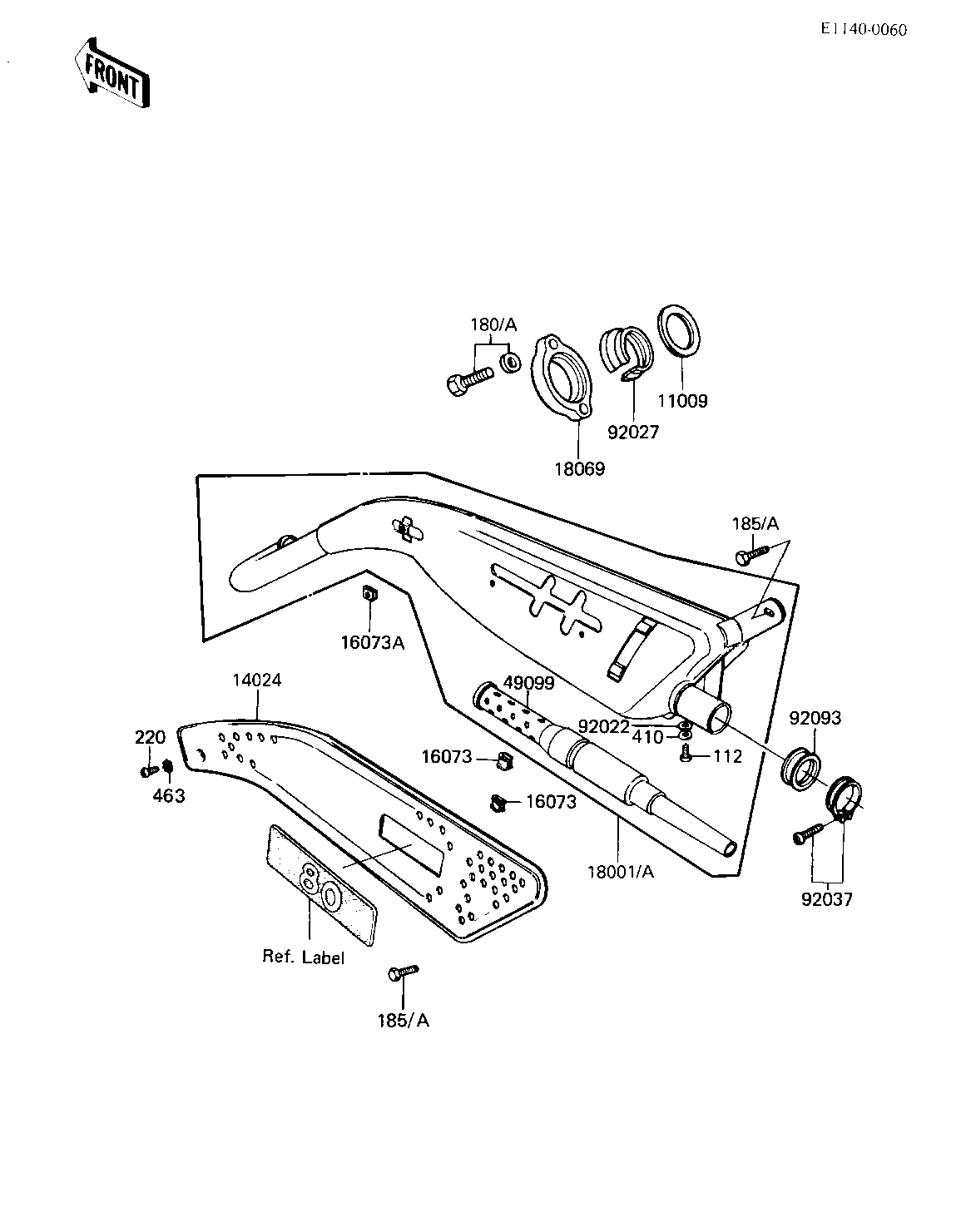

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE H 11009 11009-1866 1
COVER,MUFFLER 14024 18064-018 1
INSULATOR 16073 18065-007 2
INSULATOR-HEAT 16073A 18065-009 1
MUFFLER 18001 18001-5116 1 CN
MUFFLER 18001A 18001-5116 1 US
HOLDER,EX PIPE,BLACK 18069 18069-035-21 1
BAFFLE TUBE 49099 49099-1027 1
WASHER-PLAIN 92022 92022-183 2
INSERT-EXHAUST HOLDER 92027 18070-005 1
CLAMP,CARBURETOR HLDR 92037 92037-178 1
CONNECTOR,BAFFLETUBE 92093 92093-1042 1
BOLT,6X10 112 112G0610 2
BOLT-UPSET-WS 180A 180Y0635 2
BOLT-UPSET-WSP-SMALL 185A 185C0816 2
SCREW PAN HEAD 6X12 220 220B0612 1
WASHER PLAIN 6MM 410 410B0600 2
WASHER LOCK 6MM 463 463H0600 1
