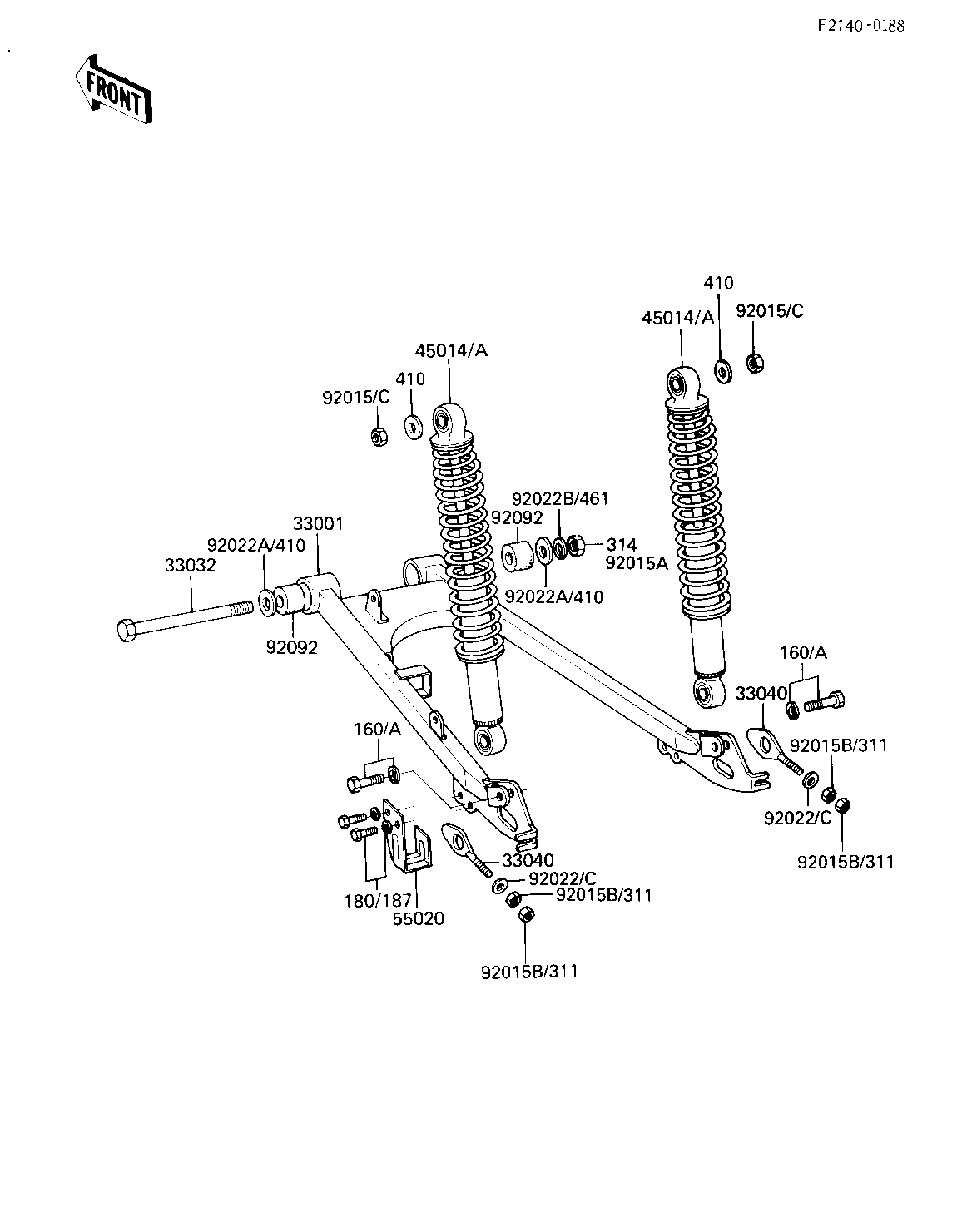

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM,SWINGING 33001 33001-1045 1
SHAFT,SWING ARM PIVOT 33032 33032-043 1
ADJUSTER CHAIN 33040 33040-008 2
SHOCKABSORBER 45014A 45014-1214 2
GUARD,CHAIN 55020 55020-012 1
NUT,12MM 92015A 92015-1381 1
NUT,6MM 92015B 92015-1391 4
NUT,12MM 92015C 92015-1426 2
WASHER,12MM 92022A 92022-1538 2
WASHER SPRING 12MM 92022B 461F1200 1
WASHER,6.5X16X2 92022C 92022-1565 2
BUSH SWING ARM SHAFT 92092 92092-005 2
BOLT-FINE-WS 160A 160N1030 2
BOLT-UPSET-WSP (Canada) 187 187X0616 2
WASHER PLAIN 12MM 410 410B1200 2
