Parts Diagrams |

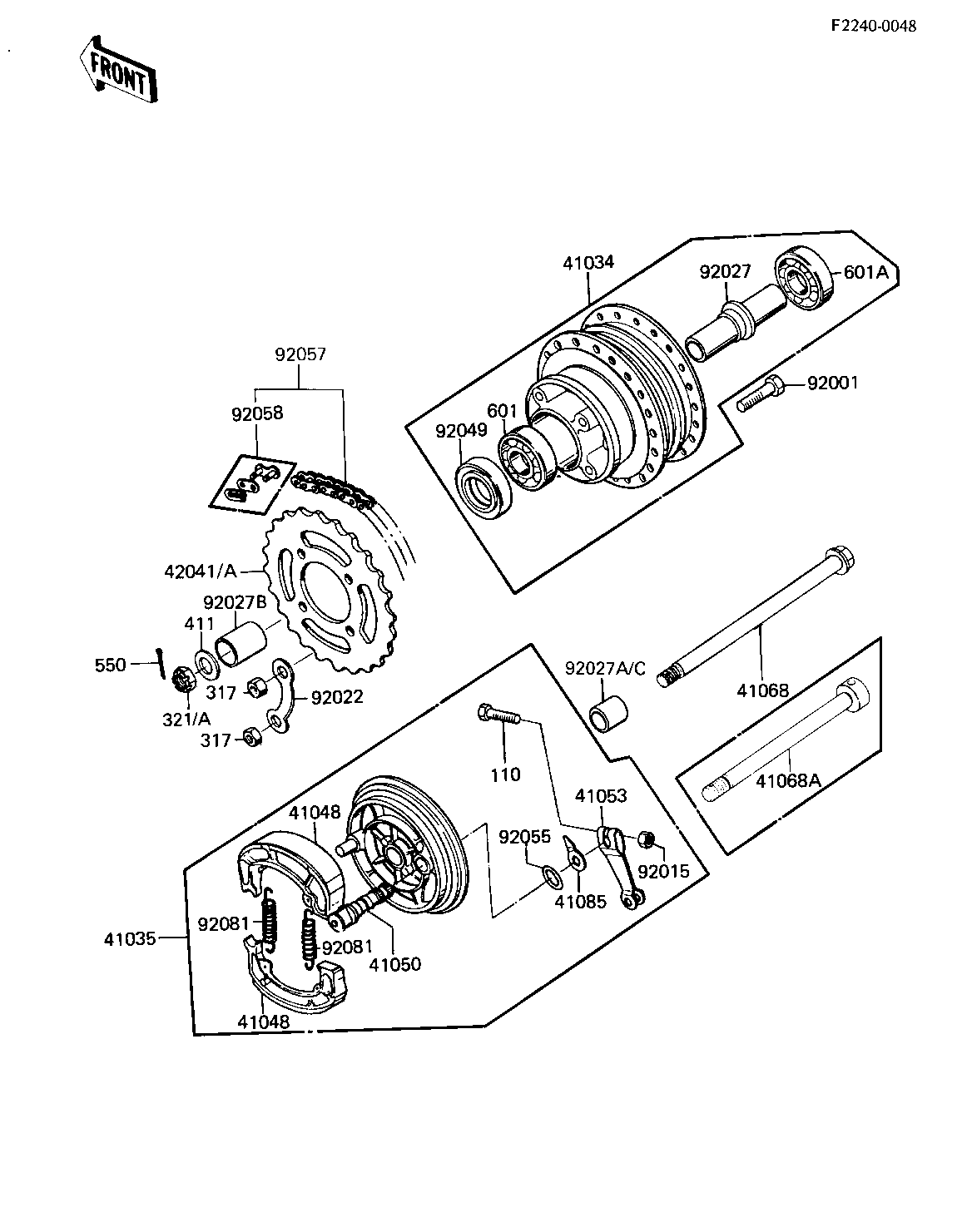

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DRUM-ASSY,RR BRK,BUFF | 41034 | 41034-1002-80 | 1 | ||
PANEL-ASY,RR BRK,BUFF | 41035 | 42006-063-80 | 1 | ||
SHOE-BRAKE | 41048 | 41048-1085 | 2 | ||
CAM SHAFT,REAR BRAKE | 41050 | 42026-018 | 1 | ||
LEVER,REAR BRAKE PANL | 41053 | 42029-027 | 1 | ||
AXLE,12X206 | 41068A | 41068-1091 | 1 | ||
INDICATOR,BKSHOE | 41085 | 41085-003 | 1 | ||
REAR SPROCKET 37T | 42041 | 42041-020 | 1 | ||
REAR SPROCKET 39T | 42041A | 42041-045 | 1 | ||
BOLT REAR SPROCKET | 92001 | 92001-021 | 4 | ||
NUT,6MM | 92015 | 41072-007 | 1 | ||
WASHER RR SPRCKT LOCK | 92022 | 92088-003 | 2 | ||
SPACER RR HUB BEARING | 92027 | 42010-003 | 1 | ||
COLLAR,REAR AXLE | 92027B | 42032-044 | 1 | ||
COLLAR,12.2X22X30.5 | 92027C | 92027-1478 | 1 | ||
OIL SEAL RR BRK DRUM | 92049 | 92052-001 | 1 | ||
"0" RING,11MM | 92055 | 92055-004 | 1 | ||
CHAIN,DRIVE,EK428 98L | 92057 | 92057-1092 | 1 | ||
JOINT-CHAIN | 92058 | 92058-1014 | 1 | ||
SPRING,BRAKE SHOE | 92081 | 92081-1766 | 2 | ||
BOLT-UPSET | 110 | 112G0630 | 1 | ||
NUT,8M/M | 317 | 317B0800 | 4 | ||
NUT CASTLE 12MM | 321 | 321B1200 | 1 | ||
WASHER PLAIN 12MM | 411 | 411B1200 | 1 | ||
PIN COTTER 3.0X25 | 550 | 550D3025 | 1 | ||
BEARING BALL #6301 | 601 | 601B6301 | 1 | ||
BEARING BALL #6301 | 601A | 601B6301Z | 1 |
