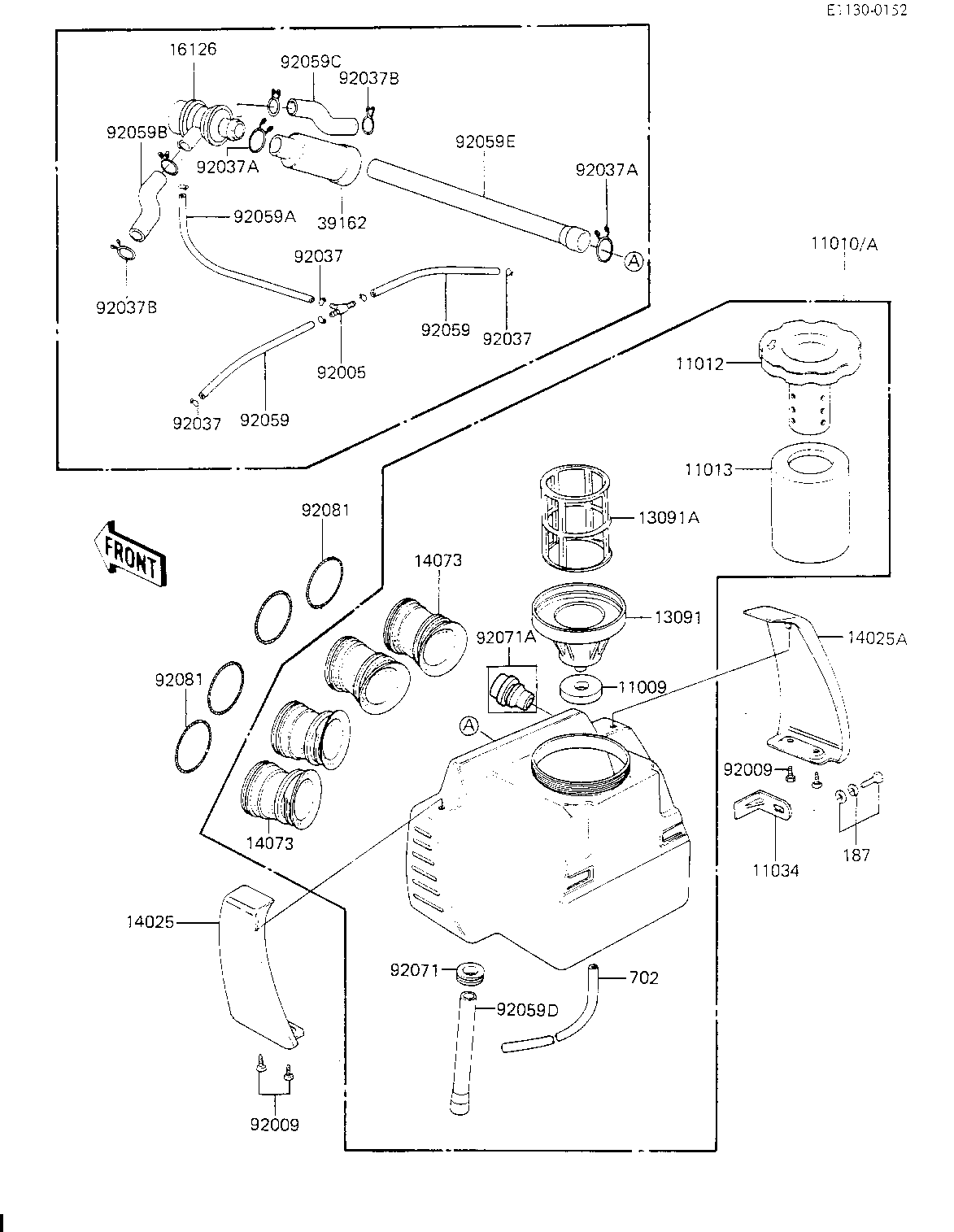

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,HOLDER | 11009 | 11039-003 | 1 | ||
FILTER-ASSY-AIR | 11010 | 11010-1128 | 1 | US | |
FILTER-ASSY-AIR | 11010A | 11010-1221 | 1 | CA | |
CAP,AIR CLEANER | 11012 | 11012-069 | 1 | ||
ELEMENT,AIR CLNR | 11013 | 11013-1060 | 1 | ||
BRACKET,AIR CLEANER | 11034 | 32070-038 | 2 | ||
HOLDER,INLET PIPE | 13091 | 11033-006 | 1 | ||
HOLDER,ELEMENT | 13091A | 13091-1147 | 1 | ||
COVER,AIR FILTER,LH | 14025 | 14025-1437 | 1 | ||
COVER,AIR FILTER,RH | 14025A | 14025-1438 | 1 | ||
INLET DUCT | 14073 | 14073-1032 | 4 | ||
VALVE ASSY,AIR SWITC | 16126 | 16126-1005 | 1 | ||
SILENCER | 39162 | 39162-1003 | 1 | ||
FITTING,TUBE | 92005 | 92005-1017 | 1 | ||
SCREW,TAPPING,5X12 | 92009 | 92009-1144 | 4 | ||
CLAMP-PIPE | 92037 | 92037-072 | 6 | ||
CLAMP | 92037A | 92037-1076 | 2 | ||
CLAMP,BREATHER TUBE | 92037B | 92037-213 | 4 | ||
TUBE,VACUUM,LONG | 92059 | 92059-1162 | 2 | ||
TUBE,4X9X290 | 92059A | 92059-1043 | 1 | ||
TUBE | 92059B | 92059-1065 | 1 | ||
TUBE | 92059C | 92059-1066 | 1 | ||
TUBE,11X26X135 | 92059D | 92059-1137 | 1 | ||
TUBE,14X20X290 | 92059E | 92059-1138 | 1 | ||
GROMMET | 92071 | 92071-1027 | 1 | ||
GROMMET,AIR FILTER | 92071A | 92071-1112 | 1 | CA | |
SPRING,COIL,BLACK | 92081 | 92081-1457 | 4 | ||
BOLT 6X12 | 187 | 187B0612 | 2 | ||
TUBE-RUBBER,6X200 | 702 | 702A06200 | 1 |
GASKET,HOLDER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-ASSY-AIR | |
REF # | 11010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | US |
FILTER-ASSY-AIR | |
REF # | 11010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
CAP,AIR CLEANER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELEMENT,AIR CLNR | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,AIR CLEANER | |
REF # | 11034 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER,INLET PIPE | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,ELEMENT | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,AIR FILTER,LH | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,AIR FILTER,RH | |
REF # | 14025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INLET DUCT | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
VALVE ASSY,AIR SWITC | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SILENCER | |
REF # | 39162 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,TUBE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X12 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP-PIPE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,BREATHER TUBE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TUBE,VACUUM,LONG | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,4X9X290 | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,11X26X135 | |
REF # | 92059D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,14X20X290 | |
REF # | 92059E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
SPRING,COIL,BLACK | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT 6X12 | |
REF # | 187 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,6X200 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
