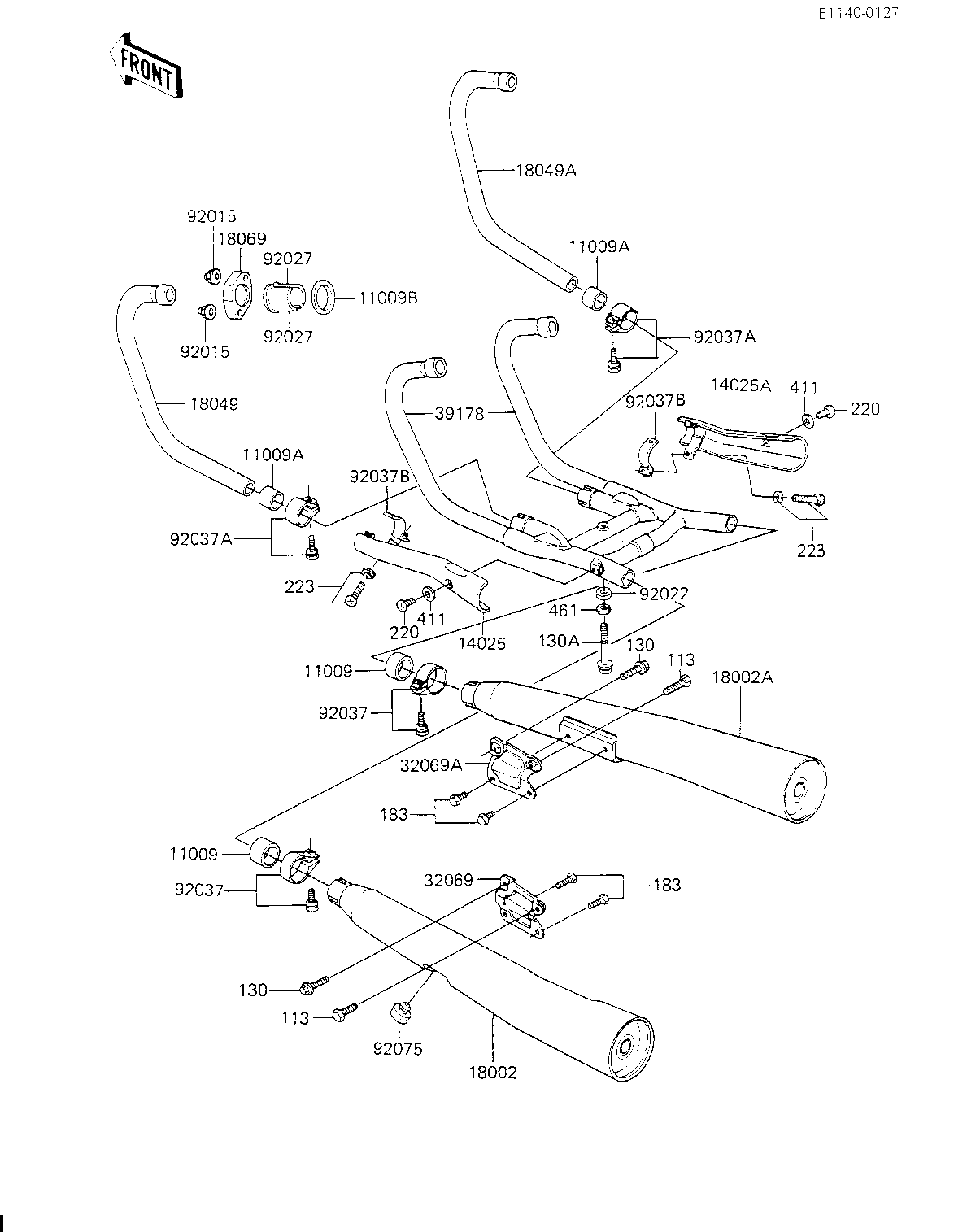

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,MANIFOLD EXHA | 11009 | 11060-1068 | 2 | ||
GASKET,EXHAUST PIPE | 11009A | 11009-1667 | 2 | ||
GASKET,EXHAUST PIPE | 11009B | 11009-1866 | 4 | ||
COVER,MUFFLER,LH | 14025 | 14025-1588 | 1 | ||
COVER,MUFFLER,RH | 14025A | 14025-1589 | 1 | ||
BODY-COMP-MUFFLER,LH | 18002 | 18002-1535 | 1 | ||
BODY-COMP-MUFFLER,RH | 18002A | 18002-1536 | 1 | ||
PIPE-EXHAUST,#2 | 18049 | 18049-1162 | 1 | ||
PIPE-EXHAUST,#3 | 18049A | 18049-1163 | 1 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1030 | 4 | ||
BRACKET-MUFFLER,LH | 32069 | 32069-1106 | 1 | ||
BRACKET-MUFFLER,RH | 32069A | 32069-1107 | 1 | ||
MANIFOLD-COMP-EXHAUS | 39178 | 39178-1019 | 1 | ||
NUT,8MM | 92015 | 92015-1398 | 8 | ||
WASHER-PLN,10X22X3.2 | 92022 | 92022-176 | 1 | ||
COLLAR,EXHAUST PIPE | 92027 | 92027-1142 | 8 | ||
CLAMP,MUFFLER | 92037 | 92037-1258 | 2 | ||
CLAMP,42MM | 92037A | 92037-1349 | 2 | ||
CLAMP.MUFFLER COVER | 92037B | 92037-1374 | 3 | ||
DAMPER RUBB MAIN STA | 92075 | 92075-015 | 1 | ||
BOLT-SMALL-FINE,10X3 | 113 | 113J1035 | 2 | ||
BOLT-FLANGED,8X35,BL | 130 | 130J0835 | 2 | ||
BOLT-FLANGED | 130A | 130Y0865 | 1 | ||
BOLT-UPSET-WS-SMALL | 183 | 183D0816 | 4 | ||
SCREW PAN HEAD 6X8 | 220 | 220E0608 | 2 | ||
SCREW-PAN-WS-CROS | 223 | 223X0620 | 2 | ||
WASHER-PLAIN,6MM | 411 | 411D0600 | 2 | ||
WASHER-SPRING | 461 | 461L0800 | 1 |
